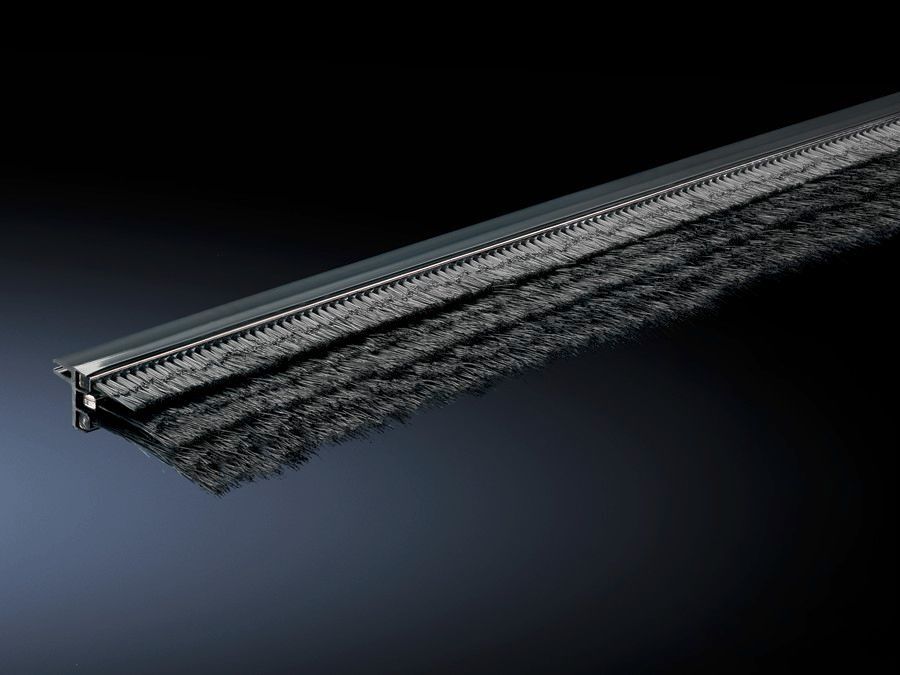

Rittal DK 7825.375 Brush Strip - UL 94-V0
Part Number: 7825375
Quick Summary
Rittal DK 7825.375 brush strip provides airtight entries for cables in enclosure panels and gland plates, enabling clean, sealed cable routing. This solution helps prevent dust ingress, moisture intrusion, and unwanted flow losses that can compromise cooling and reliability. UL 94-V0 flame retardant plastic, with right-hand and left-hand versions, supports safer installations and design flexibility, while procurement classifications like ETIM 7.0 EC002620 and ECLASS 8.0 27189261 streamline sourcing. By integrating this brush strip, manufacturers can improve enclosure integrity, reduce maintenance, and future-proof panels for growing automation challenges. It also aligns with standard wiring practices and complements Rittal enclosures for scalable industrial applications.
Product Information
Extended Description
7825375 Rittal: DK Brush strip, super-airtight, Bristle length: 58 mm, 2 pcs. L: 1 m, right-hand and left-hand version, Plastic to UL 94-V0
Article number
DK 7825.375
Product description
For individual installation of enclosure panels, gland plates and panels. Cut-outs for cable routing at any position in the side panel, rear panel, doors, roof and base plate. These special brush strips may be used to create airtight entries for cable sections and conductors. The brush strips arranged in an offset configuration ensure good sealing from the routed cables even with large quantities of cables. In this way, unwanted flow losses may be reduced to a minimum.
Material
Brush strip: Plastic, UL 94-HB
Supply includes
1 brush strip each, 1 m in length, right-hand and left-hand version
Bristle length
58 mm
Length
1 m
Dimensions
Length: 1 m
For material thicknesses
1.5 ‐ 2 mm
Packs of
1 pc(s).
Weight/pack
2.08 kg
Customs tariff number
96035000
EAN
4028177552784
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
DK Brush strip, super-airtight, Bristle length: 58 mm, 2 pcs. L: 1 m, right-hand and left-hand version, Plastic to UL 94-V0
Feature: Airtight, offset brush strip design for multiple cable routings → Business Impact: Minimizes air and dust leakage, enhancing enclosure cooling efficiency and reducing operational costs → Application: Cut-outs in side, rear, doors, roof and base plates for panel installations. Feature: 58 mm bristle length with 1 m length strips → Business Impact: Quick installation and effective sealing across varied cable bundles, shortening assembly time and improving reliability → Application: 1 pack per order, suited for 1.5–2 mm material thickness. Feature: Right-hand and left-hand versions for installation flexibility → Business Impact: Easy mounting on both sides of enclosures, minimizing inventory and simplifying repairs → Application: Applies to hinged doors and modular panels. Feature: Plastic to UL 94-V0 (and UL 94-HB stated in material spec) → Business Impact: Improves fire safety compliance for electrical cabinets, reducing risk and audit findings → Application: Suitable for control cabinets and industrial enclosures. Feature: For material thickness 1.5–2 mm and 2.08 kg per pack → Business Impact: Clear specification supports accurate BOMs, predictable weight handling, and robust seal integrity → Application: Film and assembly lines requiring precise gasket performance. Feature: Includes 1 brush strip per pack, 1 m length, with documented product description and article number DK 7825.375 → Business Impact: Simplifies procurement and traceability, speeding restocking and replacements → Application: Ideal for ongoing maintenance and spare parts management.
Get a Quick Quote for a Rittal 7825375
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7825375?
Enquire Now
FAQs
The DK 7825.375 is designed for individual installation on enclosure panels, gland plates, and panels with cut-outs in side, rear, doors, roof, and base plates. It comes in right-hand and left-hand versions and fits material thicknesses of 1.5 to 2 mm. Each pack includes one 1 m brush strip, making it straightforward to stock and replace as part of routine enclosure maintenance or new installations.
Key specs include a bristle length of 58 mm, a 1 m overall length, and a plastic brush strip rated to UL 94-V0 (with UL 94-HB noted in the material specification). It is intended for 1.5–2 mm enclosure materials, delivering an airtight seal that minimizes air leakage and improves cooling performance in electrical cabinets.
Yes. The DK 7825.375 is designed specifically for enclosure panels, gland plates, and control panels where tight cable routing is required. Its offset brush configuration seals large cable bundles while maintaining low flow losses, making it ideal for automations, robotics cabinets, and other high-density installations.
The product uses UL 94 flame-retardant plastic (UL 94-V0), supporting safety compliance. It is also classified in procurement standards as ETIM 7.0 EC002620 and ECLASS 8.0 27189261, aiding integration into digital catalogs and BOM tools. These references help ensure consistency across sourcing and installation documentation.
By reducing dust and moisture ingress and minimizing air flow losses, the DK 7825.375 brush strip lowers cooling load requirements and maintenance frequency for electrical cabinets. Its 1 m length per pack and right/left-hand variants simplify stocking, while the robust UL-rated plastic enhances long-term durability in harsh industrial environments.
