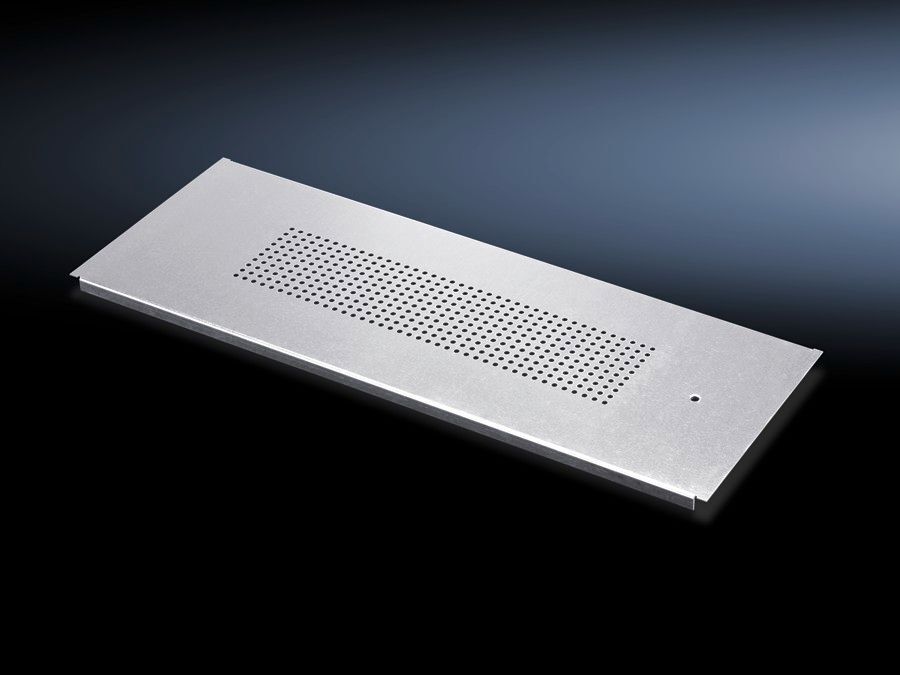

Rittal 7825380 Gland plate module - vented, 237.5 mm depth
Part Number: 7825380
Quick Summary
Gland plate module is a vented component that enables base-frame ventilation for TS, TS IT, and SE enclosures. Engineers often struggle with heat buildup and restricted airflow in compact cabinets, leading to hotter components and more frequent maintenance. The DK 7825.380 supports CE conformity and EN standards alignment for electrical enclosures, and it is designed for compatibility with TS, TS IT, SE, TX CableNet systems, in a rugged sheet-steel, zinc-plated build. By delivering a large perforated ventilation area and easy retrofit, it reduces operating temperatures, extends component life, and simplifies installation for OEMs and service teams, while meeting common industry expectations for durable, serviceable enclosures.
Product Information
Extended Description
7825380 Rittal: DK Gland plate module, vented, depth: 237,5 mm, for enclosure width: 800 mm, for TS, TS IT, SE, TX CableNet, sheet steel, zinc-plated
Article number
DK 7825.380
Product description
Large perforated section for passive enclosure ventilation.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Filter mat and nylon tape
Note
Several gland module plates need to be combined to close off the base completely in the TS-IT
Dimensions
Depth:Â 237.5 mm
To fit
Enclosure type:Â TS | TS IT | SE | TX CableNet | Width:Â 800 mm
Packs of
1 pc(s).
Weight/pack
2.15 kg
PCF per pack (cradle-to-gate)
8.2Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177233348
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate module, vented, depth: 237,5 mm, for enclosure width: 800 mm, for TS, TS IT, SE, TX CableNet, sheet steel, zinc-plated
View this page as PDF
CS, DA, DE, EN, ES, FI, FR, HU, ID, IT, JA, KO, NL, NO, PL, PT, RU, SK, SV, TR, US, VI, ZH
Feature: Vented design with a large perforated section. Business Impact: Improves passive ventilation, reduces hot spots, and lowers the risk of component throttling in dense installations. Application: Ideal for base-frame ventilation in TS, TS IT, SE and TX CableNet enclosures, particularly where space limits active cooling. Feature: Depth of 237.5 mm and width of 800 mm. Business Impact: Ensures precise fitment within standard enclosure footprints, enabling rapid retrofits and predictable maintenance windows. Application: Fits TS, TS IT, SE, TX CableNet frames with 800 mm width, delivering scalable ventilation. Feature: Sheet steel, zinc-plated surface. Business Impact: Delivers durable corrosion resistance in harsh industrial environments, reducing replacement costs over time. Application: Suitable for long-term outdoor or factory-floor installations. Feature: Includes filter mat and nylon tape. Business Impact: Accelerates commissioning and simplifies airflow management, lowering installation labor and post-install adjustments. Application: Facilitates immediate use after mounting, with easy sealing options. Feature: Environmental and footprint data (PCF 8.2 kg CO2 eq per pack, Cat B). Business Impact: Supports sustainability reporting and responsible procurement decisions. Application: Aligns with corporate green initiatives while maintaining enclosure performance. Note: Several gland plates may be required to close the base in TS-IT configurations.
Get a Quick Quote for a Rittal 7825380
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7825380?
Enquire Now
FAQs
Begin by confirming enclosure width compatibility (800 mm) and base-frame fit. Mount the vented gland plate module into the base frame, ensuring alignment with TS, TS IT, SE or TX CableNet configurations. Use the included filter mat and nylon tape to seal and manage airflow. For TS-IT variants, plan for multiple plates to fully close the base if required.
The gland plate module has a depth of 237.5 mm and fits an enclosure width of 800 mm. It is constructed from sheet steel with a zinc-plated surface, and ships as 1 piece per pack with a weight of 2.15 kg.
Yes. The module is designed for TS, TS IT, SE, and TX CableNet frame systems. In TS-IT configurations, you may need multiple gland plates to completely close the base; plan installation accordingly to maintain enclosure integrity and airflow.
Each pack includes a vented gland plate module plus a filter mat and nylon tape to assist sealing and airflow regulation. The standard pack contains 1 piece, with a total weight of 2.15 kg and a corrosion-resistant zinc-plated surface.
The product carries a cradle-to-gate PCF of 8.2 kg CO2 eq (Cat B). The pack weight is 2.15 kg, and the component is designed from sheet steel with a zinc-plated finish, balancing durability with a manageable environmental profile in typical industrial projects.
