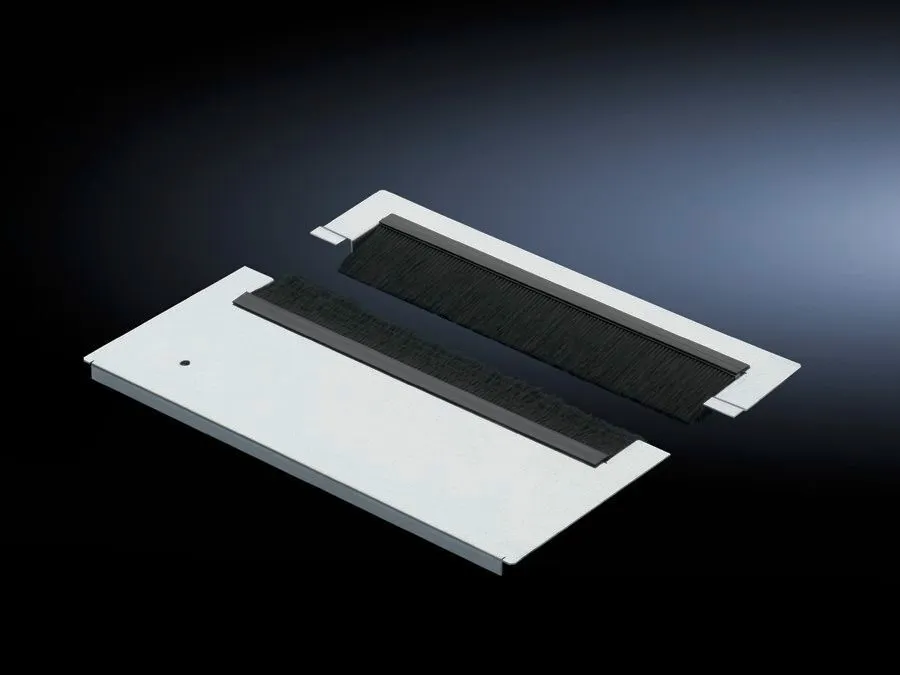

Rittal TS 7825.387 Gland Plate Module - Super-airtight
Part Number: 7825387
Quick Summary
The TS 7825.387 gland plate module provides a super-airtight cable entry for TS enclosure systems. Dense cabling can challenge seals and complicate retrofits, but this two-part base module is designed for easy integration even after cables are installed. Look for CE marking for electrical safety, IP sealing levels for ingress protection, and SIL considerations where safety-critical controls apply. The gland plate is ideal for 800 mm wide TS enclosures and supports efficient, long-term sealing with brush-strip entries, helping you maintain performance while enabling scalable cabling strategies in control cabinets.
Product Information
Extended Description
7825387 Rittal: DK Gland plate module, For W: 800 mm, For cable entry with brush, super-airtight
Article number
TS 7825.387
Design
Cable entry with brush strip, super-airtight
Product description
Special brush strips with brush strips offset on alternate sides offer maximum possible protection with professional cable entry. The two-piece design even allows retrospective fitting of the base module with the cables already installed.
Material
Module plate: Sheet steel | Brush strip: Plastic, UL 94 HB, halogen-free
Surface finish
Module plate: Zinc-plated
Supply includes
Assembly parts | Including clips
Note
Several gland module plates need to be combined to close off the base completely in the TS-IT
Dimensions
Depth: 237.5 mm
To fit
Enclosure type: TS | TS IT | SE | Width: 800 mm
Packs of
1 pc(s).
Weight/pack
2.011 kg
Customs tariff number
73269098
EAN
4028177551169
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Gland plate module, For W: 800 mm, For cable entry with brush, super-airtight
Feature → Business Impact → Application: The two-part base module enables retrospective fitting, reducing installation downtime and enabling quick reworks in existing TS enclosures. This translates to lower labor costs and faster project turnarounds for panel upgrades or expansions, especially in environments with evolving cabling needs. Application: TS and TS IT enclosures in automation projects benefit from fast, reliable retrofits without dismantling entire cabinets. Feature → Business Impact → Application: Cable entry with brush strips offset on alternate sides delivers maximum protection and an ultra-tight seal for high-density cable streams. The robust brush design minimizes ingress and heat buildup, increasing enclosure reliability in harsh environments. Application: Dense wiring in machine controls and process cabinets across manufacturing lines. Feature → Business Impact → Application: Module plate material combines sheet steel with a zinc-plated finish and halogen-free UL 94 HB brush strips, delivering durability, corrosion resistance, and compliance-friendly materials. This reduces maintenance cycles and supports safer, longer-lasting installs. Application: Outdoor or moisture-prone installations where corrosion resistance matters. Feature → Business Impact → Application: The design supports easy installation with included clips and assembly parts, simplifying onboarding and reducing field engineering time. Application: New builds and retrofits where fast, repeatable gland integration is critical. Feature → Business Impact → Application: The depth of 237.5 mm and 800 mm width ensure compatibility with TS IT and SE variants, enabling consistent enclosure sizing across projects. Application: System-wide standardization for scalable electrical cabinets.
Get a Quick Quote for a Rittal 7825387
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7825387?
Enquire Now
FAQs
The TS 7825.387 gland plate module is designed for 800 mm wide TS enclosures and supports the TS, TS IT, and SE families. Its two-part base can be fitted onto existing installations, enabling retrospective cable management without replacing the entire enclosure, which minimizes downtime and protects existing wiring.
The product uses alternating offset brush strips combined with a brush-entry design to create a super-airtight seal even with large cable quantities. This configuration reduces ingress of dust and moisture while accommodating dense cabling, which is common in modern control panels and automation racks.
Yes. The two-part base module is specifically intended for retrospective fitting, allowing installation around cables that are already in place. This minimizes disruption during upgrades and expands sealing capability without a full cabinet rebuild.
Module plate is sheet steel with zinc plating for durability, while brush strips are plastic rated UL 94 HB and halogen-free. This combination provides mechanical strength, corrosion resistance, and safer material properties for electrical installations in industrial environments.
Each pack includes the gland plate module with assembly parts and clips, facilitating straightforward mounting. The configuration supports 800 mm wide enclosures and comes with the necessary hardware to secure the base module and channel cables through the brush-sealed entry.
