Rittal 7826685 Roof Plate - 2-Part For Cable Entry
Part Number: 7826685
Quick Summary
Rittal 7826685 Roof Plate provides a robust two-piece entry solution for cable management on 600x800 mm enclosures, engineered for quick retrofits. Across aging switchgear or control panels, downtime spikes are common; this design minimizes disruption by letting you remove only the front section to create retrospective cable entry. CE compliance and established classifications such as ETIM EC000744 and ECLASS 27182405 support reliable procurement, maintenance planning, and cross-system data consistency. Crafted from sheet steel with a durable RAL 7035 finish, it ensures long-term enclosure compatibility while improving cable routing and overall aesthetic consistency. Its symmetry also enables straightforward side-entry installation when enclosure layouts require cabling from the side. For project teams, the integrated features reduce field modifications and align with standard Rittal DK-TS8 configurations.
Product Information
Extended Description

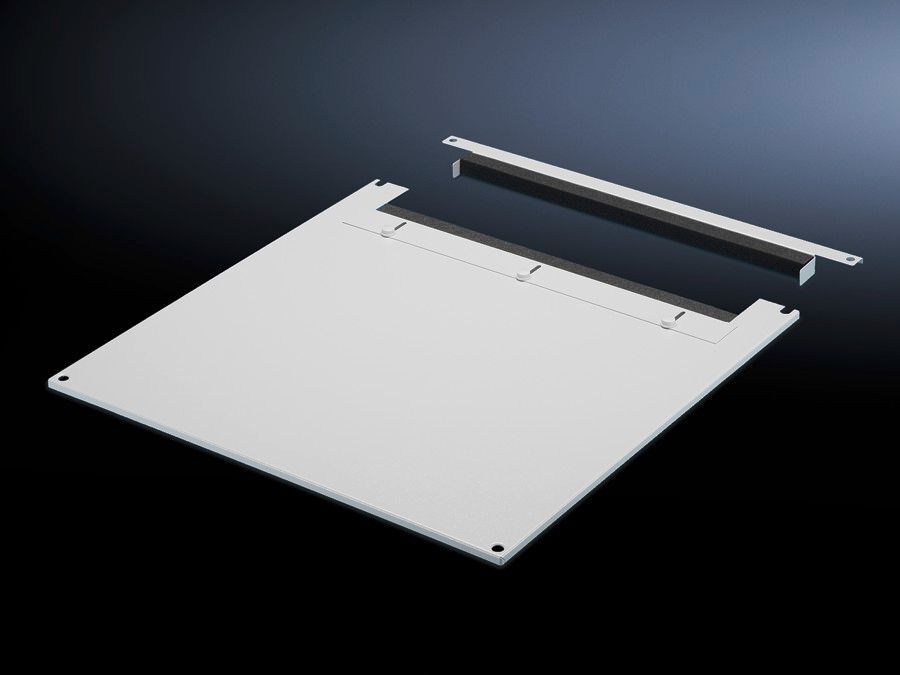

7826685 Rittal: DK-TS8 Roof plate, WxD: 600x800 mm, 2-part, For cable entry
Article number
TS 7826.685
Product description
In exchange for the standard roof. Equipped with a sliding angular bracket in the rear section. Rubber cable clamp strip on both sides for attaching cable bundles and bunched cables. Due to the symmetrical design of the frame, side cable entry can also be achieved by rotating the roof plate. The two-piece design allows convenient retrofitting.
Material
Sheet steel
Colour
RAL 7035
To fit
Width: 600 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
7.1 kg
Customs tariff number
73269098
EAN
4028177345331
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
DK-TS8 Roof plate, WxD: 600x800 mm, 2-part, For cable entry
Feature: Two-piece roof plate design enables flexible retrofit and reduces on-site modification time. Business Impact: minimizes downtime and labor costs when upgrading legacy enclosures. Application: ideal for 600x800 mm DK-TS8 configurations, allowing retrofitting without full roof removal and enabling retrospective cable entry. Feature: Sliding angular bracket in the rear section stabilizes cable bundles. Business Impact: improves cable routing, reduces strain, and enhances long-term reliability of installed cabling. Application: supports complex harness layouts in control panels and switchgear while maintaining a clean, organized interface inside the enclosure. Feature: Rubber cable clamp strips on both sides for attaching cable bundles. Business Impact: secures bundles against vibration and abrasion, simplifying maintenance and re-entry during service. Application: aids high-density wiring scenarios where multiple cables require orderly entry from top or sides. Feature: Material and finish—sheet steel in RAL 7035. Business Impact: durable construction with uniform appearance across enclosures, reducing repainting or custom modifications. Application: robust for industrial environments and compatible with standard Rittal aesthetics. Feature: Precise fit to Width 600 mm and Depth 800 mm, single-pack configuration (1 pc) weighing 7.1 kg; EAN 4028177345331. Business Impact: predictable installation footprint and streamlined logistics for procurement. Application: matches standard enclosure dimensions in automated plants.
Get a Quick Quote for a Rittal 7826685
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7826685?
Enquire Now
FAQs
The DK-TS8 roof plate is a two-piece system designed for easy retrofitting on 600x800 mm enclosures. Start by aligning the rear section with the enclosure, secure the parts as a single unit, and use the front portion to create retrospective cable entry without dismantling the entire roof. The design supports side-entry by rotating the roof plate, minimizing downtime during upgrades.
Yes. The TS 7826.685 DK-TS8 roof plate is intended for 600x800 mm enclosures and leverages a symmetrical frame that allows side-entry by rotation. It is designed to fit standard Rittal DK-TS8 configurations, enabling straightforward retrofits in existing control cabinets and switchgear.
The roof plate includes rubber cable clamp strips on both sides to secure bundles and a sliding angular bracket in the rear section for additional cable routing control. These features support high-density wiring while reducing movement, wear, and re-entry time during maintenance.
The part is CE compliant and is classified under ETIM EC000744 and ECLASS 27182405, which aids in procurement data consistency and cross-system integration. The EAN is 4028177345331, and the customs tariff number is 73269098, supporting import/export processes.
The two-piece design minimizes field modifications and downtime by allowing selective front-section removal for retrofitting. This reduces labor costs and enables faster project completion. The unit ships as a single 7.1 kg pack, with straightforward compatibility to 600x800 mm enclosures, helping procurement and installation teams streamline costs.
