Rittal DK 7826.689 Roof plate - Two-part with cable entry
Part Number: 7826689
Quick Summary
Rittal DK 7826.689 Roof plate is a two-part accessory that enables cable entry for TS enclosure roofs. This design addresses the common retrofit challenge of adding cable management without extensive modifications or downtime. It aligns with ETIM EC000744 and ECLASS 27182405 classifications, helping procurement systems standardize parts for TS and TS IT families. By enabling organized cable routing and all-round venting, it supports faster installations and safer, more reliable control panel assemblies while maintaining a consistent industrial finish with RAL 7035 steel.
Product Information
Extended Description
7826689 Rittal: DK-TS8 Roof plate, WxD: 600x800 mm, 2-part, For cable entry
Article number
DK 7826.689
Design
Two-part with cable entry
Product description

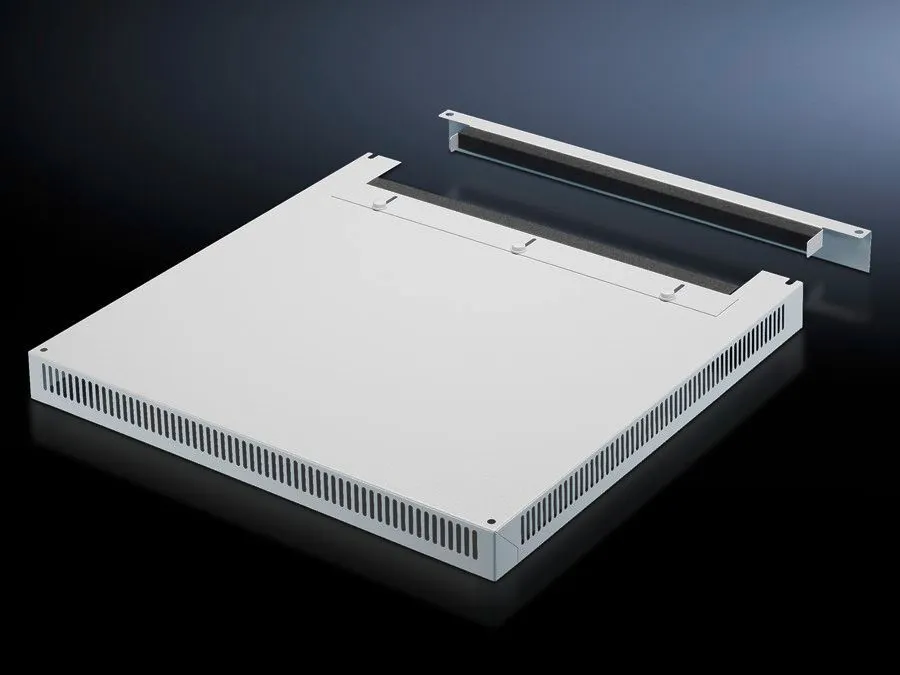

In exchange for the standard roof. 72 mm high roof plate, all-round vent slots, clamp strip for cable entry. The two-piece design with cable entry allows convenient retrofitting.
Material
Sheet steel
Colour
RAL 7035
To fit
Enclosure type: TS | TS IT | Width: 600 mm | Depth: 800 mm
Packs of
1 pc(s).
Weight/pack
9.197 kg
Customs tariff number
73269098
EAN
4028177345393
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
DK-TS8 Roof plate, WxD: 600x800 mm, 2-part, For cable entry
Feature: Two-part with cable entry; Business Impact: Simplifies retrofitting TS enclosures, reducing downtime and field labor; Application: Ideal for upgrading existing control panels where cable entry was not previously available, enabling quick, clean wiring routes and enhanced venting. Feature: WxD 600x800 mm compatibility; Business Impact: Exact fit minimizes enclosure alterations and avoid costly modifications; Application: Fits TS and TS IT enclosures, streamlining procurement and field installation. Feature: Material sheet steel, colour RAL 7035; Business Impact: Durable, corrosion-resistant housing with a uniform industrial appearance; Application: Suitable for harsh factory environments and compliant maintenance aesthetics. Feature: All-round vent slots and 72 mm high profile; Business Impact: Improves thermal management and airflow to protect sensitive electronics; Application: Essential for high-density wiring and improved enclosure cooling. Feature: Weight per pack 9.197 kg; Business Impact: Aids installation planning and hoisting calculations, reducing scheduling risk; Application: Useful for warehouse and shop-floor assembly planning. The design also supports standardised compatibility with TS/TS IT families, helping procurement consolidate orders and ensuring reliable, long-term spare parts availability.
Get a Quick Quote for a Rittal 7826689
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7826689?
Enquire Now
FAQs
The DK 7826.689 roof plate is designed for Rittal TS and TS IT enclosure families, with a 600x800 mm footprint. Its two-piece design with cable entry simplifies retrofits and wiring management without altering core enclosure dimensions.
To retrofit, remove or replace the existing roof and install the DK 7826.689 two-part plate, using the included clamp strip for cable entry. The all-round vent slots maintain airflow, and the 72 mm high profile preserves enclosure clearance while enabling clean cable routing.
Key specs include article number DK 7826.689, two-part design with cable entry, dimensions 600x800 mm, sheet steel material, color RAL 7035, packs of 1, weight per pack 9.197 kg, EAN 4028177345393, ETIM EC000744, and ECLASS 27182405.
The provided data does not specify CE or IP ratings for the roof plate itself. Regulatory compliance is typically determined by the full enclosure and installation. Verify CE/IP requirements for the entire TS assembly in your application and consult local regulations as needed.
Using this roof plate reduces retrofit complexity, enables organized cable routing, and improves thermal management, resulting in shorter project timelines, lower field labor costs, and consistent, maintainable enclosure aesthetics for industrial control panels.
