Rittal TS 7826.805 Roof Plate - 2-piece design
Part Number: 7826805
Quick Summary
Rittal TS 7826.805 Roof Plate provides easy, two-piece access for cable entry in 800x1000 mm enclosures. This design minimizes retrofit downtime by allowing front-part removal without removing the entire roof. While the data sheet doesn't specify CE, SIL, or IP ratings, it aligns with standard industrial classifications ETIM EC000744 and ECLASS 27182405 to support consistent procurement. The DK-TS8 roof plate is built for durability with sheet steel and a RAL 7035 finish, offering reliable performance in harsh environments. For organizations prioritizing modular cable management and quick installation, this accessory delivers tangible business value through faster serviceability and repeatable assembly. Designed for field replacement and future upgrades, it scales with evolving automation needs.
Product Information
Extended Description

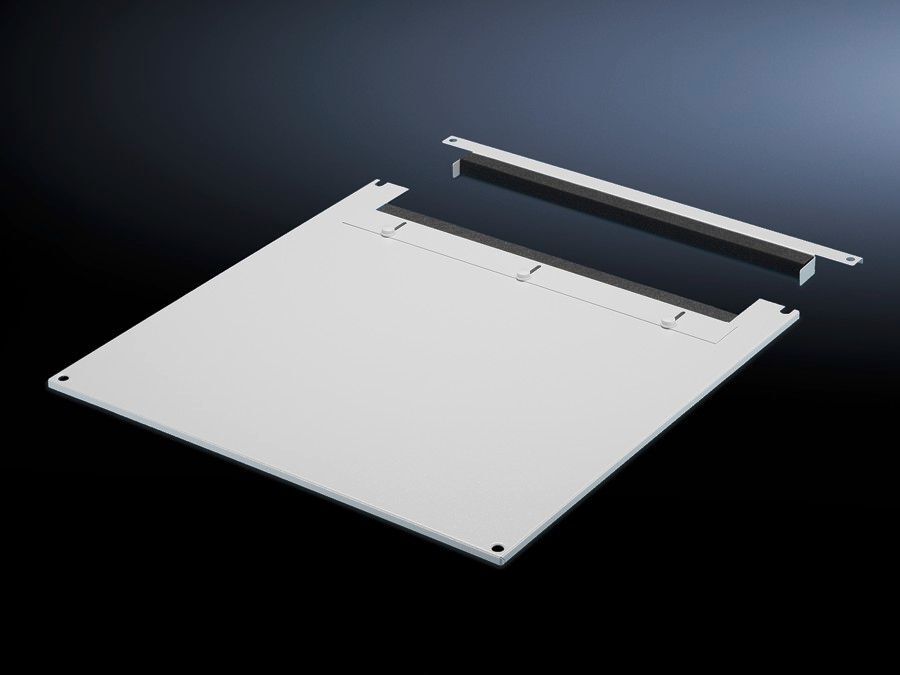

7826805 Rittal: DK-TS8 Roof plate, WxD: 800x1000 mm, 2-part, For cable entry
Article number
TS 7826.805
Product description
In exchange for the standard roof. Equipped with a sliding angular bracket in the rear section. Rubber cable clamp strip on both sides for attaching cable bundles and bunched cables. Due to the symmetrical design of the frame, side cable entry can also be achieved by rotating the roof plate. The two-piece design allows convenient retrofitting.
Material
Sheet steel
Colour
RAL 7035
To fit
Width: 800 mm | Depth: 1,000 mm
Packs of
1 pc(s).
Weight/pack
11.695 kg
Customs tariff number
73269098
EAN
4028177345386
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
DK-TS8 Roof plate, WxD: 800x1000 mm, 2-part, For cable entry
Two-piece DK-TS8 roof plate simplifies retrofitting; the front part can be removed to accommodate retrospective cable entry, minimizing panel downtime and reducing installation complexity. This translates to measurable savings during upgrades and reduces risk of extended production stops. The rear section features a sliding angular bracket and rubber cable clamp strips on both sides, enabling secure, tidy cable routing and improved bundle control. The symmetric frame enables side-entry by rotating the roof plate, providing installation flexibility and reducing the need for multiple variants in stocking. Sheet steel construction and a durable RAL 7035 finish deliver robust mechanical protection with predictable heat dissipation and longevity in typical enclosure environments. Weight per pack is 11.695 kg, supporting a solid, stable retrofit in mid- to large-sized cabinets. Fits 800 mm width and 1,000 mm depth enclosures, with a straightforward DK-TS8 compatibility path. This accessory aligns with ETIM EC000744 and ECLASS 27182405 mappings for streamlined procurement and ERP integration. Compatibility with standard roof replacements and modular upgrade paths reduces lifecycle costs, while the 2-piece design avoids complete roof removal during retrofits. In practice, technicians benefit from quicker installation, repeatable configurations, and fewer field variances. Designed to support evolving automation needs and scalable cable management strategies.
Get a Quick Quote for a Rittal 7826805
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7826805?
Enquire Now
FAQs
The TS 7826.805 roof plate is designed for DK-TS8 enclosures with an 800x1000 mm footprint. Its 2-piece design allows the front portion to be removed for retrospective cable entry, enabling retrofit without removing the entire roof and minimizing downtime during enclosure upgrades.
Key features include a two-piece construction, rear sliding angular bracket, and rubber cable clamp strips on both sides. These elements support neat cable routing, secure bundling, and flexible entry points, delivering cleaner installations and reduced cable wear in demanding environments.
Yes. The roof plate’s symmetrical frame enables side-entry cable routing by rotating the plate, offering installation flexibility when top-entry space is limited or when scenarios require rear or side access for multiple cable bundles.
Explicit CE, SIL, or IP ratings are not listed in the provided data. The product aligns with ETIM EC000744 and ECLASS 27182405 classifications, which support procurement processes and interoperability, but you should verify any site-specific compliance requirements with your QA team.
The two-piece design reduces retrofit downtime and simplifies field installation, lowering maintenance costs and production disruption. Flexible cable routing, robust construction, and easy rotation for side-entry enable faster upgrades, repeatable configurations, and better lifecycle management for automation cabinets and control panels.
