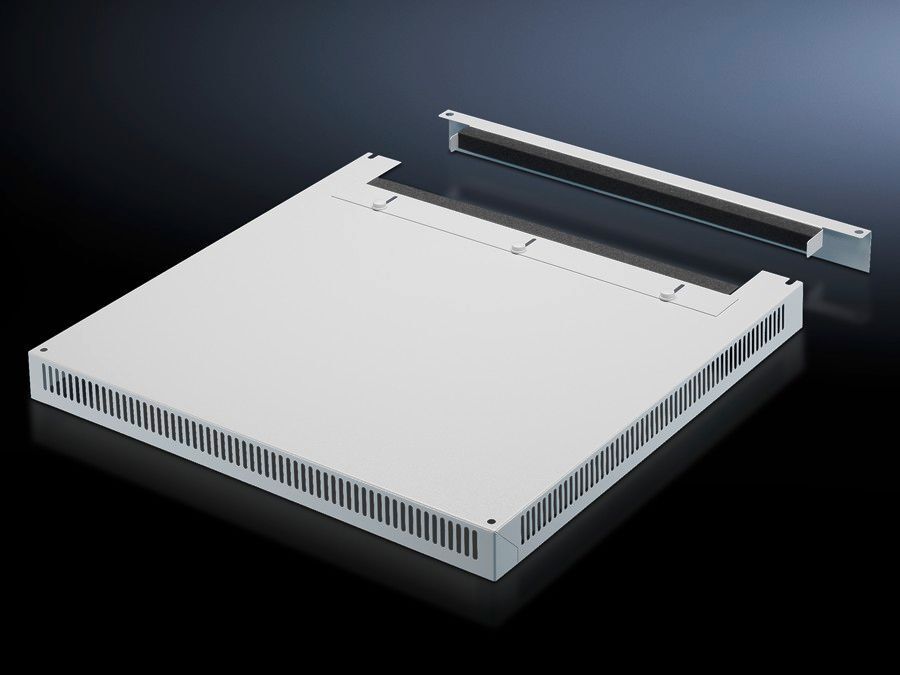

Rittal 7826809 Roof plate - Two-part with cable entry
Part Number: 7826809
Quick Summary
Rittal 7826809 roof plate provides cable-entry ready ventilation for TS enclosures. Retrofitting a standard roof to add cable entry can extend installation times and risk cable misrouting. The part aligns with ETIM EC000744 and ECLASS 27182405 standards, aiding consistent specification and procurement. Its two-part design, 72 mm high roof plate, and all-round vent slots streamline retrofits while preserving enclosure integrity. Finished in RAL 7035, the accessory fits TS and TS IT enclosures with an 800x1000 mm footprint, supporting scalable installations and simpler inventory management for maintenance teams.
Product Information
Extended Description
7826809 Rittal: DK-TS8 Roof plate, WxD: 800x1000 mm, 2-part, For cable entry
Article number
DK 7826.809
Design
Two-part with cable entry
Product description
In exchange for the standard roof. 72 mm high roof plate, all-round vent slots, clamp strip for cable entry. The two-piece design with cable entry allows convenient retrofitting.
Material
Sheet steel
Colour
RAL 7035
To fit
Enclosure type: TS | TS IT | Width: 800 mm | Depth: 1,000 mm
Packs of
1 pc(s).
Weight/pack
14.5 kg
Customs tariff number
73269098
EAN
4028177345447
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
DK-TS8 Roof plate, WxD: 800x1000 mm, 2-part, For cable entry
Two-part roof plate with a dedicated cable-entry path is a core feature. This design enables convenient retrofitting without removing the entire roof, reducing installation time and preserving enclosure seals. It fits TS and TS IT enclosures (800x1000 mm) and supports clean cable management in automation panels and data centers. 72 mm high roof plate with all-round vent slots is the next feature. The ventilation slots improve heat dissipation while maintaining weather and dust protection, reducing overheating risk in dense electrical cabinets. In practice this supports reliable performance for industrial automation equipment in harsh environments. Sheet steel construction with a RAL 7035 finish provides durable protection and a consistent plant-floor appearance. The combination ensures long service life in demanding environments and simplifies color-coding across multiple enclosures, aiding maintenance planning. Designed to fit enclosure types TS and TS IT with 800 mm width and 1000 mm depth, this roof plate minimizes part mismatches and accelerates procurement across product families. Compatibility reduces stray components and streamlines stock management for engineering teams. Pack weight is 14.5 kg per unit, with a 1 pc per pack configuration. This packaging supports efficient logistics and on-site handling during retrofits, reducing manual handling risk and speeding up field installation.
Get a Quick Quote for a Rittal 7826809
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7826809?
Enquire Now
FAQs
Installation begins by removing the existing standard roof if required, then aligning the two-part DK-TS8 plate with the enclosure top. The cable-entry component is positioned to guide cables through the entry path, and the two parts are secured to restore enclosure integrity. This process minimizes downtime and preserves sealing while ensuring a clean, organized cable layout.
Key specs include model DK 7826.809, dimensions 800x1000 mm, height 72 mm, material sheet steel, color RAL 7035, and weight 14.5 kg per pack. It is designed for TS and TS IT enclosures and supports a single-pack configuration with standard packaging. The product description references a two-part design for cable entry.
Yes. The two-part design with a dedicated cable-entry path and all-round vent slots provides organized cable routing and improved ventilation. The 800x1000 mm footprint fits standard TS cabinet footprints, making it suitable for automation panels and networked equipment in data centers or industrial IT setups while maintaining enclosure integrity.
The part aligns with ETIM 9 EC000744 and ECLASS 8.0 27182405 classifications, supporting standardized procurement and interoperability across engineering systems. While not a substitute for specific electrical certifications, these classifications help ensure correct part selection in B2B catalogs and ERP systems.
The roof plate reduces retrofit lead times and minimizes field errors by providing a ready-made, compatible solution with cable-entry. Its durable sheet steel construction and standardized color help with long-term maintenance planning, reducing downtime during upgrades and simplifying inventory, especially when fleets use TS or TS IT enclosures across multiple lines.
