Rittal TS 7826.865 Roof Plate - 2-Part, Cable Entry
Part Number: 7826865
Quick Summary
Rittal TS 7826.865 roof plate provides easy, two-piece cable entry for 800x600 mm enclosures. Retrofitting without full enclosure removal saves time and reduces downtime during upgrades. CE conformity considerations, along with ETIM EC000744 and ECLASS 27182405 classifications, help validate compatibility within European procurement systems. These features, combined with the 800x600 fit and the color-coded RAL 7035 finish, deliver tangible business value by speeding installation, improving cable management, and supporting consistent enclosure aesthetics across facilities.
Product Information
Extended Description

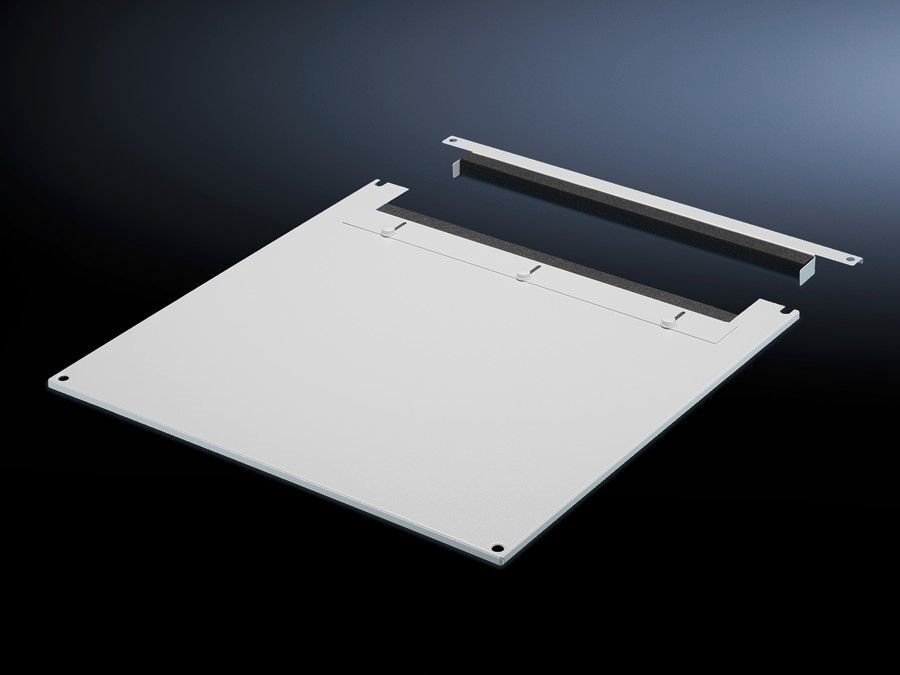

7826865 Rittal: DK-TS8 Roof plate, WxD: 800x600 mm, 2-part, For cable entry
Article number
TS 7826.865
Product description
In exchange for the standard roof. Equipped with a sliding angular bracket in the rear section. Rubber cable clamp strip on both sides for attaching cable bundles and bunched cables. Due to the symmetrical design of the frame, side cable entry can also be achieved by rotating the roof plate. The two-piece design allows convenient retrofitting.
Material
Sheet steel
Colour
RAL 7035
To fit
Width:Â 800 mm | Depth:Â 600 mm
Packs of
1 pc(s).
Weight/pack
7.064 kg
Customs tariff number
73269098
EAN
4028177390256
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
DK-TS8 Roof plate, WxD: 800x600 mm, 2-part, For cable entry
The two-piece design enables straightforward retrofitting, which translates to reduced field labor and shorter project timelines. This translates into lower downtime and safer, more predictable installation sequences in production environments. The rear sliding angular bracket and rubber cable clamp strips on both sides improve cable organization, enabling tidy bundles and easier future rework. In practice, technicians gain faster entry routing options without disassembling major components, increasing overall installation reliability. The symmetrical frame enables side entry by rotating the roof plate, offering installation flexibility in tight spaces and complex layouts. The material choice of sheet steel in RAL 7035 ensures durability and visual consistency with Rittal enclosures, while the 800x600 mm fit provides a predictable, manufacturer-approved mounting footprint for standard cabinets and modular systems. Compatibility with standard enclosure dimensions supports streamlined procurement and consistent spare-part management.
Get a Quick Quote for a Rittal 7826865
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7826865?
Enquire Now
FAQs
Yes. The roof plate is specified to fit 800x600 mm enclosures and uses a two-piece design that facilitates easy retrofitting without disassembling the entire enclosure, making it ideal for retrofit projects and upgrade programs.
The two-piece construction allows removal of just the front part to access retrofitting entry points. The design also supports rear and side cable entry by rotating the plate, reducing installation complexity and downtime while maintaining secure cable routing.
Ensure the enclosure footprint is 800x600 mm, then align the roof plate with the housing. Use the sliding angular bracket in the rear section and the rubber cable clamp strips on both sides to secure bundles. For side-entry routes, rotate the roof plate as needed to achieve the desired path without compromising seal integrity.
The product aligns with ETIM 9 EC000744 and ECLASS 8.0 27182405 classifications to support procurement and data accuracy. EAN is 4028177390256, and the packaging quantity is 1 pc. CE conformity is typical for European electrical components of this class and aids in regulatory compliance, though site-specific certification should be verified for critical safety applications.
Using the TS 7826.865 reduces retrofit lead times, improves cable organization, and supports consistent enclosure appearance. The reliable, two-piece design minimizes field labor, lowers total cost of ownership, and enables faster maintenance and upgrade cycles across manufacturing lines.
