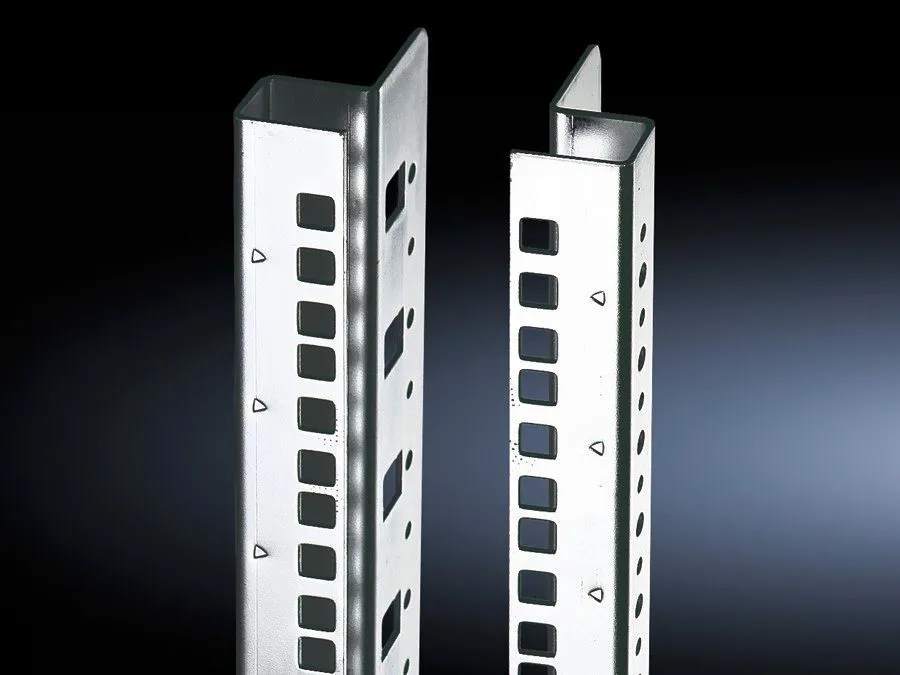

Rittal 7827140 Mounting Angles - Cranked, 19 inch Punchings (EIA)
Part Number: 7827140
Quick Summary
Rittal mounting angles 7827140 provide cranked support for 19-inch rack enclosures. This configuration helps installers achieve accurate alignment and minimize on-site adjustments during cabinet assembly. The product aligns with ETIM EC002620 and ECLASS 27189261 classifications and follows the EIA standard 482.6 mm punchings for repeatable, industry-standard mounting. Designed for TS 8 and CS Toptec enclosures, it comes as a two-pack with assembly parts, simplifying stocking and reducing per-unit costs. By combining robust sheet steel construction with clear U-markings, it supports systematic assembly at the 19-inch attachment level while enabling compatibility with 21, 23, and 24 inch attachment dimensions, delivering tangible time savings and improved project reliability.
Product Information
Article number
DK 7827.140
Design
Cranked
Benefits
Integral U markings in the front facilitate systematic assembly within the 482.6 mm (19˝) attachment level.
Technical specifications
Integral 482.6 mm (19") punchings (EIA standard)
Material
Sheet steel, 2 mm
Supply includes
Assembly parts
Dimensions
Width: 482.6 mm
Units
29 U
Note
The mounting angles can also be used to accommodate 21", 23" and 24" attachment dimensions.
To fit
Enclosure type: TS 8 | CS Toptec | Height: 1,400 mm
Packs of
2 pc(s).
Weight/pack
4.37 kg
Customs tariff number
73269098
EAN
4028177234871
ETIM 9
EC002620
ECLASS 8.0
27189261
Feature cranked design → Business impact reduces misalignment and speeds up initial setup → Application ideal for TS 8 and CS Toptec enclosures, ensuring fast, repeatable mounting in 19-inch rack systems. Feature integral 482.6 mm (19 inch) punchings → Business impact guarantees standardized, drop-in compatibility across data-center and industrial cabinets → Application supports consistent alignment at the standard 19-inch attachment level. Feature sheet steel, 2 mm thickness → Business impact delivers robust structural support with durable service life while keeping weight manageable for installation crews → Application suitable for heavy-duty enclosure mounting without warping or fatigue. Feature supply includes assembly parts and 2-pack packaging → Business impact lowers procurement complexity and stocking costs, enabling quick replacements and predictable project planning → Application reduces downtime during rollout across facilities. Feature compatibility with 21, 23, 24 inch attachment dimensions noted in the note → Business impact extends the utility of the same mounting angles across a range of enclosure configurations → Application supports adaptable installations in mixed-assembly environments. Feature dimensions and unit specification 482.6 mm width and 29 U height → Business impact ensures precise fit with TS 8 height requirements and common 19-inch rack standards → Application benefits data-center or industrial environments where standardized mounting height matters for cable management and airflow.
Get a Quick Quote for a Rittal 7827140
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7827140?
Enquire Now
FAQs
The 7827140 mounting angles from Rittal are designed specifically to fit TS 8 and CS Toptec enclosures. They utilize 482.6 mm (19 inch) punchings and incorporate integral U markings for systematic assembly, ensuring a precise and repeatable mounting process across standard 19-inch cabinet configurations.
This product is supplied as a two-pack, with each pack including two cranked mounting angles and assembly parts. The mounting angles support a width of 482.6 mm and a 29 U unit height specification, using 2 mm sheet steel for robust stability and long service life.
The cranked design provides easier access and alignment during side mounting, reducing on-site adjustments and misalignment. This configuration is particularly beneficial when mounting at the 19-inch attachment level in 482.6 mm rack standards, enabling quicker, more reliable cabinet assembly.
Yes. The 7827140 uses integral 482.6 mm (19 inch) punchings aligned with the EIA standard, ensuring compatibility with a wide range of 19-inch equipment and consistent mounting across multiple enclosure types within TS 8 and CS Toptec families.
Plan for 21, 23, and 24 inch attachment dimensions as noted in the product note. The two-pack includes assembly parts to simplify installation, and the unit’s 29 U height, 482.6 mm width, and 2 mm sheet steel construction support durable, scalable mounting across mixed enclosure configurations.
