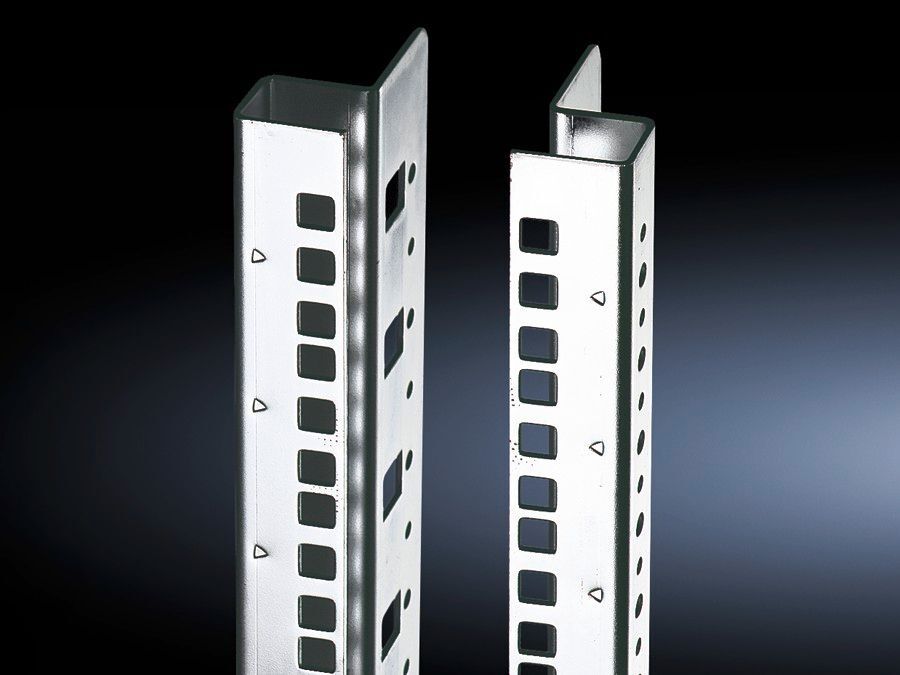

Rittal 7827180 Mounting Angles - EIA 482.6 mm
Part Number: 7827180
Quick Summary
Rittal 7827180 Mounting Angles provide cranked support for 19-inch enclosures, enabling precise 482.6 mm attachment in TS 8 and CS Toptec systems. For engineers, misalignment and time-consuming assembly can stall projects and inflate field labor costs. These mounting angles comply with the 482.6 mm 19 inch EIA standard punchings and are listed under ETIM 9 EC002620 and ECLASS 8.0 27189261, simplifying data sheets and procurement. By aligning with TS 8 height enclosures, they accelerate installation while maintaining exact spacing and structural integrity. Ideal for 19" enclosure accessories and mounting hardware, they improve reliability and reduce maintenance overhead across data centers and industrial cabinets.
Product Information
Article number
DK 7827.180
Design
Cranked
Benefits
Integral U markings in the front facilitate systematic assembly within the 482.6 mm (19˝) attachment level.
Technical specifications
Integral 482.6 mm (19") punchings (EIA standard)
Material
Sheet steel, 2 mm
Supply includes
Assembly parts
Dimensions
Width: 482.6 mm
Units
38 U
Note
The mounting angles can also be used to accommodate 21", 23" and 24" attachment dimensions.
To fit
Enclosure type: TS 8 | CS Toptec | Height: 1,800 mm
Packs of
2 pc(s).
Weight/pack
5.544 kg
Customs tariff number
73269098
EAN
4028177234918
ETIM 9
EC002620
ECLASS 8.0
27189261
Feature cranked L-shaped design provides rigid, predictable mounting. Business Impact reduces misalignment, minimizes rework, and shortens installation time, which translates to lower labor costs and faster project completion. Application suited for 19-inch enclosure mounting hardware in TS 8 and CS Toptec systems, ensuring consistent 482.6 mm spacing across cabinet rows. Feature integral 482.6 mm (19 inch) punchings (EIA standard) simplifies hardware compatibility and speeds procurement. Business Impact improves install accuracy and reduces field deviations, enabling rapid deployment in data centers and manufacturing floors. Application fits 21, 23, and 24 inch attachment dimensions as noted, offering flexibility for multi-bay racks. Feature 2 mm sheet steel construction delivers durable support with predictable load handling, aligning with industry expectations for enclosure accessories. Business Impact lowers replacement risk and extends cabinet service life. Application-ready with assembly parts included, enhancing on-site productivity. Feature Packs of 2 pieces and 5.544 kg weight per pack support efficient inventory management and cost control. Business Impact reduces shipping footprint and simplifies stock planning for large projects. Application-compatible with TS 8 height enclosures up to 1,800 mm, ensuring broad applicability in server rooms and industrial environments.
Get a Quick Quote for a Rittal 7827180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7827180?
Enquire Now
FAQs
The mounting angles are designed to fit TS 8 and CS Toptec enclosure heights, specifically matching 19" (482.6 mm) punchings for reliable mounting.
The integral 482.6 mm (19 in) punchings follow the EIA standard, enabling precise, repeatable mounting with standard 19" hardware and reducing alignment errors during assembly.
The cranked L-shaped design offers robust support with predictable spacing, enabling quicker, more accurate assembly and better space utilization in cabinets that host multiple bays.
Yes. The DK 7827.180 includes assembly parts and is shipped in packs of two, with a weight of 5.544 kg per pack, supporting efficient on-site handling.
Procurement is aided by ETIM 9 EC002620 and ECLASS 8.0 27189261 classification, plus compliance with 482.6 mm EIA punchings and the provided EAN 4028177234918 for traceability.
