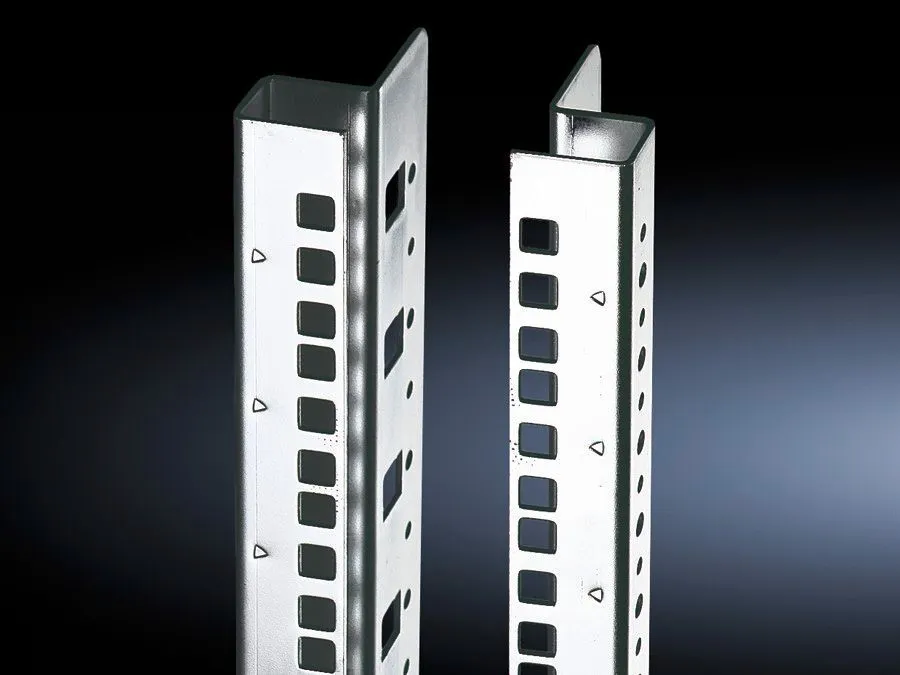

Rittal DK 7827.200 Mounting Angles - Cranked, 482.6 mm
Part Number: 7827200
Quick Summary
DK 7827.200 mounting angles from Rittal provide robust cranked support for 19-inch enclosure systems. Their cranked design with integral 482.6 mm punchings simplifies alignment at the 19-inch attachment level, speeding installation. End users often struggle with precise spacing and front markings; these angles address that by providing integral U markings for systematic assembly. The solution uses 2 mm sheet steel for strength and durability, while packs of two minimize trips to the parts bin. In addition to standard 19-inch sizes, the angles accommodate 21, 23 and 24 inch attachment dimensions, enabling flexible configurations for TS 8 and CS Toptec enclosures up to 2,000 mm high. This reduces custom fabrication, improves repeatability, and lowers total installation costs.
Product Information
Article number
DK 7827.200
Design
Cranked
Benefits
Integral U markings in the front facilitate systematic assembly within the 482.6 mm (19Ëť) attachment level.
Technical specifications
Integral 482.6 mm (19") punchings (EIA standard)
Material
Sheet steel, 2 mm
Supply includes
Assembly parts
Dimensions
Width:Â 482.6 mm
Units
42 U
Note
The mounting angles can also be used to accommodate 21", 23" and 24" attachment dimensions.
To fit
Enclosure type:Â TS 8 | CS Toptec | Height:Â 2,000 mm
Packs of
2 pc(s).
Weight/pack
6.15 kg
Customs tariff number
73269098
EAN
4028177234932
ETIM 9
EC002620
ECLASS 8.0
27189261
Cranked design provides stable support while reducing mounting depth, which translates into faster, more reliable alignment during panel assembly and service. The integral 482.6 mm punchings standardize mounting across the 19-inch level, minimizing misalignment and eliminating guesswork during rack installation. Built from 2 mm sheet steel, the parts deliver higher rigidity and long-term durability in demanding industrial environments, reducing maintenance and replacement costs. Each pack contains two mounting angles, streamlining logistics and reducing handling time on the shop floor. Compatibility with TS 8 and CS Toptec enclosures up to 2,000 mm tall makes these angles a versatile choice for mixed enclosure fleets. The design also accommodates alternative attachment dimensions of 21, 23, and 24 inches, enabling flexible retrofits and future upgrades with minimal hardware changes.
Get a Quick Quote for a Rittal 7827200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7827200?
Enquire Now
FAQs
Installation uses the integral 482.6 mm punchings to align equipment at the standard 19-inch level. The two-pack arrangement simplifies mounting—attach the cranked angles to the enclosure frame, then secure 19-inch components to the punched positions for repeatable assembly with minimal spacer trial and error.
Yes. The DK 7827.200 angles are designed for 19-inch (482.6 mm) punchings and provide compatibility with standard 19-inch equipment layouts, while also supporting alternative attachment dimensions of 21, 23, and 24 inches for flexible configurations.
Each pack contains two mounting angles with a total weight of 6.15 kg per pack. This packing arrangement reduces handling complexity and shipment cost while ensuring you receive all necessary hardware for a two-rack install.
The angles fit TS 8 and CS Toptec enclosures up to 2,000 mm in height, enabling scalable configurations across standard industrial cabinets and data-center racks without requiring additional adapters.
Integral U markings in the front and the 482.6 mm (19-inch) punchings reduce assembly errors, speed up alignment, and ensure consistent, repeatable mounting across multiple enclosures, delivering lower installation cost and improved reliability in panel builds.
