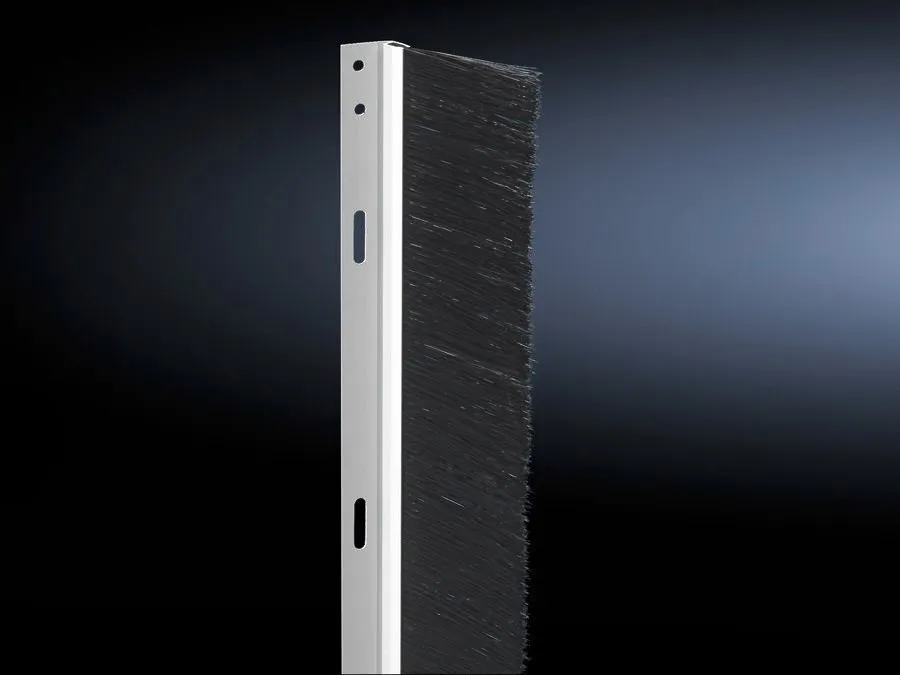

Rittal 7827544 Brush Strip - VX IT 2000 mm Enclosures
Part Number: 7827544
Quick Summary
Rittal 7827544 brush strip is a flexible infill panel that guides cables cleanly within VX IT enclosures. Engineers often contend with cluttered routes from side and rear distributor areas to the front connection level, slowing installations and increasing risk of snagged cables. Key standards commonly applied in this class of accessory include CE marking for electrical safety, IP protection considerations for enclosure components, and SIL-ready integration scenarios. The brush strip uses an aluminium section with a natural anodised finish and a UL 94-HB plastic bristle, delivering durability in operational environments. By simplifying cable routing and preserving front-access clearance, this accessory adds measurable value for projects focused on installation efficiency and long-term maintenance.
Product Information
Extended Description
7827544 Rittal: DK Brush strip, vertical, For H: 2000 mm, For TS IT
Article number
DK 7827.544
Product description
Within the network distributor, this serves as a flexible infill panel which stylishly conceals the cable management area to the side of the 482.6 mm (19") mounting level. The brush strip facilitates convenient cable routing from the side and rear distributor area to the front connection level. The clearance required in front of the mounting level is at least 75 mm. The brush strip is mounted at the side on the vertical frame section, on horizontal or vertical punched sections.
Material
Aluminium section, natural anodised | Brush strip: Plastic, UL 94-HB
Bristle length
95 mm
Length
950 mm
Assembly instruction
The brush strip will need to be shortened when mounting on 482.6 mm (19”) mounting angles.
Dimensions
Length:Â 950 mm
To fit
Enclosure type:Â VX IT | Height:Â 2,000 mm
Packs of
4 pc(s).
Weight/pack
2.04 kg
Customs tariff number
96035000
EAN
4028177552845
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
DK Brush strip, vertical, For H: 2000 mm, For TS IT
Feature: Vertical aluminium profile with a 950 mm length and 95 mm bristle reach, designed to align with VX IT mounting levels. Business Impact: Conceals the cable management area while guiding cables from side and rear distributors to the front connection level, reducing visual clutter and minimizing snag risk during service. Application: Ideal for 482.6 mm (19 inch) mounting setups in VX IT enclosures and similar control cabinets. Feature: Material composition includes a natural anodised aluminium section and UL 94-HB plastic bristles. Business Impact: Delivers robust corrosion resistance and a flame-rated bristle, improving safety margins in demanding environments. Application: Suitable for industrial automation panels where long-term durability and compliant cable management are critical. Feature: Packs of 4 pieces with a weight of 2.04 kg per pack. Business Impact: Facilitates bulk procurement, streamlined stocking, and cost-efficient project deployment. Application: Practical for installers and integrators managing multiple VX IT or TS IT assemblies. Feature: Installation note specifies shortening the brush strip when mounting on 482.6 mm (19”) mounting angles. Business Impact: Reduces field trimming time and ensures a precise fit without compromising performance. Application: Supports quick adaptations during cabinet upgrades or expansion projects. Feature: To fit VX IT, height 2000 mm, with front clearance of at least 75 mm. Business Impact: Guarantees proper space for front connections and cable routing, preserving service access and airflow. Application: Aligns with standard VX IT enclosure dimensions for scalable deployments.
Get a Quick Quote for a Rittal 7827544
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7827544?
Enquire Now
FAQs
The DK 7827.544 is designed as a vertical brush strip for VX IT enclosures with a height of 2000 mm and is compatible with 482.6 mm (19”) mounting levels; trim the strip for precise fit when mounting on 19” angles.
Mount the brush strip to the vertical frame section beside the mounting level, shorten the strip as needed for 19” mounting angles, and ensure at least 75 mm clearance in front of the mounting level for front connections.
The strip uses an aluminium section with a natural anodised finish and a plastic brush bristle rated UL 94-HB, suitable for typical industrial cabinet environments demanding flame-rated components.
Yes. It is designed for VX IT height 2000 mm and is specified for use with TS IT as an integrated component in vertical cable management, supporting flexible installation in modern control cabinets.
It hides the cable management area, improves cable routing efficiency, preserves front-access clearance, reduces installation time, and supports bulk procurement with packs of four, lowering overall project costs and maintenance effort.
