Rittal 7827600 Installation Kit for 800 mm Enclosures - 4 Depth Stays
Part Number: 7827600
Quick Summary

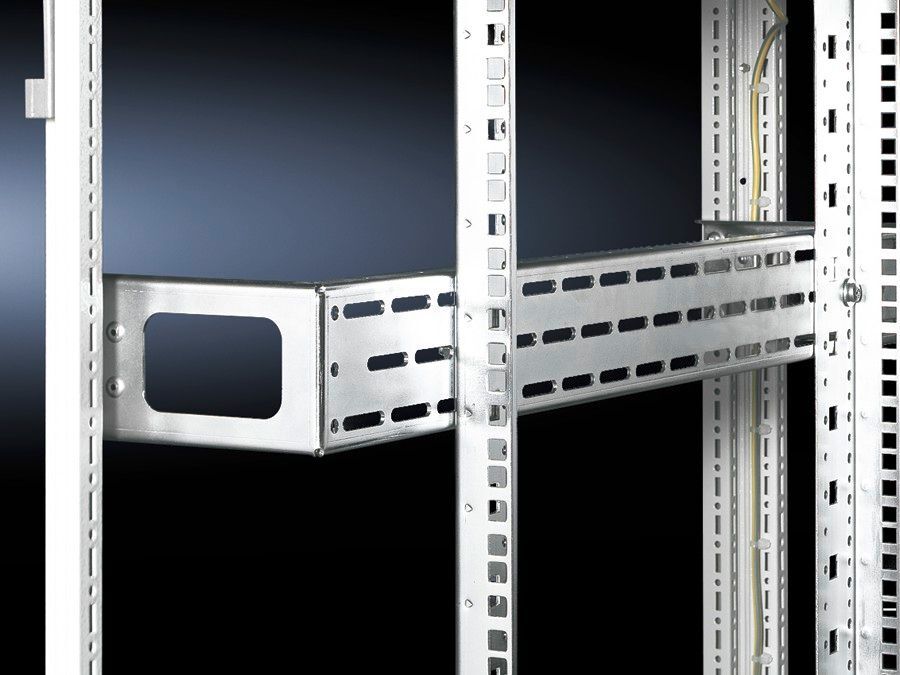

Rittal 7827600 Installation Kit securely mounts mounting angles inside 800 mm wide enclosures for 19-inch levels. Installers often wrestle with aligning heavy equipment and routing cables without sacrificing space or airflow. Certification details such as CE, SIL or IP ratings are not listed in the data; verify compliance with your project requirements. The kit’s four depth stays keep mounting angles aligned, speeding assembly and reducing rework. Front cut-out simplifies cable routing with full configuration, while compatibility with one or two 482.6 mm (19-inch) attachment levels standardizes layouts. This accessory delivers reliable, industry-standard hardware for efficient projects and lower lifecycle costs.
Product Information
Extended Description
7827600 Rittal: Installation in 800 mm wide enclosures: One installation kit consists of 4 depth stays to accommodate mounting angles. One pack is sufficient for installing one or two 482.6 mm (19Ëť) attachment levels. For exceptionally heavy installed equipment, we recommend the installation of an additional depth stay in the centre. The front cut-out makes cable routing easier with full configuration
Article number
DK 7827.600
Product description
Installation in 800 mm wide enclosures: One installation kit consists of 4 depth stays to accommodate mounting angles. One pack is sufficient for installing one or two 482.6 mm (19Ëť) attachment levels. For exceptionally heavy installed equipment, we recommend the installation of an additional depth stay in the centre. The front cut-out makes cable routing easier with full configuration
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Width:Â 800 mm | Depth:Â 600 mm
Packs of
4 pc(s).
Weight/pack
4.58 kg
Customs tariff number
73269098
EAN
4028177235014
ETIM 9
EC002620
ECLASS 8.0
27189261
Feature: Four depth stays are included to accommodate mounting angles. Impact: This delivers a stable mounting plane, reducing misalignment and rework during installation. Application: Perfect for 800 mm wide enclosures that host one or two 482.6 mm (19-inch) attachment levels. Feature: Front cut-out for cable routing and full configuration. Impact: Simplifies wire paths, improves airflow, and speeds commissioning. Application: Reduces routing complexity in enclosures with multiple levels. Feature: Sheet steel, zinc-plated finish. Impact: Provides robust corrosion resistance and long service life. Application: Suitable for harsh industrial environments and frequent maintenance cycles. Feature: Pack composition and weight: 4 depth stays per kit; weight per pack 4.58 kg; supply includes assembly parts. Impact: Predictable logistics and straightforward handling in warehouse and installation teams. Application: For project rollouts where standardization of mounting hardware across many enclosures is valuable. Feature: Compatibility: To fit width 800 mm and depth 600 mm; attaches one pack for 1-2 levels. Impact: Enables scalable configurations and reduces part variety. Application: Helps instrument engineers plan rack layouts across multiple enclosures.
Get a Quick Quote for a Rittal 7827600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7827600?
Enquire Now
FAQs
The kit consists of four depth stays to accommodate mounting angles, supply includes assembly parts, and is designed to install one or two 19-inch attachment levels. Each pack weighs 4.58 kg, with a front-cut-out for easier cable routing and full configuration.
Yes. One installation kit is sufficient for installing one or two 482.6 mm (19-inch) attachment levels, using four depth stays to maintain correct spacing and alignment for reliable rack mounting.
The kit is designed for 800 mm wide enclosures with a depth of 600 mm, ensuring compatible mounting points and consistent fit across typical 19-inch rack configurations.
For exceptionally heavy installed equipment, the data recommends adding an additional depth stay in the centre to increase support and prevent deflection, improving overall stability and safety.
The kit uses sheet steel with a zinc-plated finish for corrosion resistance. It includes assembly parts, weighs 4.58 kg per pack, and carries an EAN of 4028177235014 for traceability.
