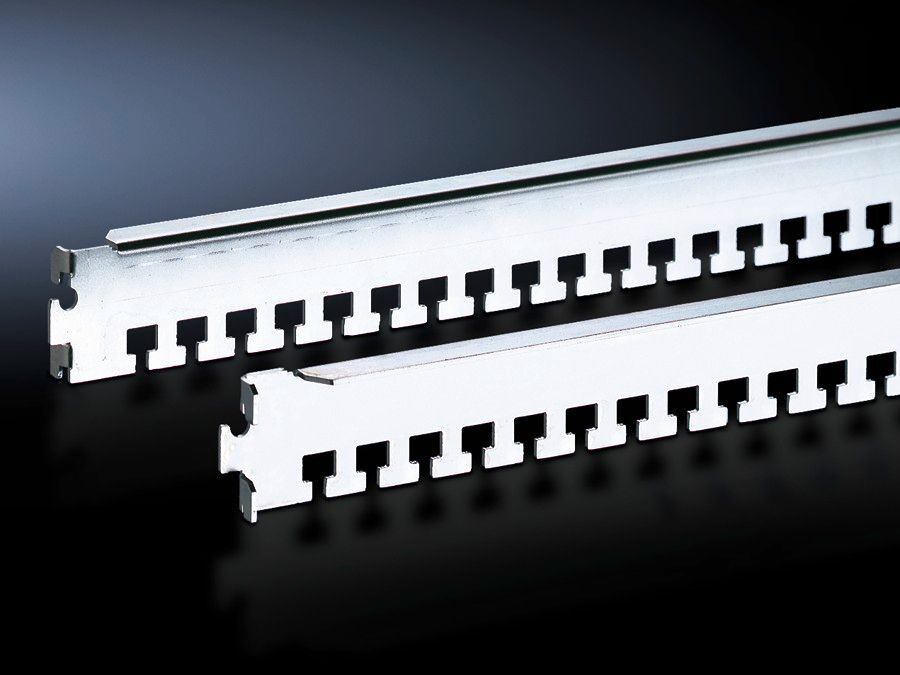

Rittal 7828081 DK Cable Clamp Rail - Zinc-plated
Part Number: 7828081
Quick Summary
The DK Cable clamp rail is a practical mounting accessory that organizes cables on the inner mounting level of TS enclosure frames. Engineers often confront cable chaos that slows wiring, complicates changes, and raises maintenance costs. While the data sheet does not list SIL, CE, or IP ratings for this part, it is designed to integrate with TS frame systems and supports common enclosure standards for reliable field installations. Constructed from sheet steel with a zinc-plated finish, the rails secure with simple screws and accept cable ties or nylon loops for clean routing. Pack contains four rails with assembly parts, aiding efficient stocking, consistent installation, and scalable wiring layouts for 800 mm wide enclosures.
Product Information
Extended Description
7828081 Rittal: DK Cable clamp rail, For the inner mounting level, For WxD: 800 mm
Article number
DK 7828.081
Design
for the inner attachment level
Product description
For cable routing on the enclosure frame. The cables may be attached to the cable clamp rails with cable ties or nylon loops. The cable clamp rails are easily located onto the frame section of the enclosure frame or mounting frame, and may additionally be secured with a screw.
Applications
On the TS frame
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS | TS IT | Width: 800 mm | Depth: 800 mm
Packs of
4 pc(s).
Weight/pack
1.56 kg
Customs tariff number
73269098
EAN
4028177235090
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable clamp rail, For the inner mounting level, For WxD: 800 mm
Feature: Inner mounting level compatibility enables clean, organized cable routing directly on the enclosure frame, reducing stray wires and improving air flow. Benefit: Faster wiring and easier future changes, which lowers installation time and lifecycle maintenance costs. Application: Suitable for TS frames in 800 mm wide enclosures, enabling reliable integration in standard industrial cabinets. Feature: Zinc-plated sheet steel construction provides corrosion resistance and durable support in harsh environments. Benefit: Longer service life and reduced replacement cycles, contributing to lower total cost of ownership. Application: Ideal for factory floors and control panel rooms where cables must withstand regular handling. Feature: Pack of four with assembly parts simplifies procurement and standardizes installation. Benefit: Predictable stock levels and consistent mounting performance across projects, reducing project-delivery risk. Application: Replenishment-friendly for system integrators managing multiple enclosures. Feature: Weight per pack of 1.56 kg and compatibility with internal mounting levels offer straightforward handling and mounting. Benefit: Lower onsite labor effort and safer manual handling during installation. Application: Supports quick setup during cabinet build-outs and expansions. Feature: To fit TS, TS IT, with 800 mm width and 800 mm depth, ensuring precise alignment with enclosure frames. Benefit: Minimized gaps and secure cable routing in precise 800x800 configurations. Application: Works across standard TS frame installations for reliable cabling.
Get a Quick Quote for a Rittal 7828081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7828081?
Enquire Now
FAQs
Begin by locating the inner mounting level on the TS frame, then position the DK cable clamp rail so the frame slots align with the rail holes. Secure with the provided assembly parts and screws, ensuring the rail sits flush. Attach cables using cable ties or nylon loops as needed, keeping routing tidy and organized. Repeat the process for all rails in the 4-pack to complete the setup.
The rail is designed to fit enclosure types TS and TS IT with a width of 800 mm and depth of 800 mm. It is specified as a DK 7828.081 with inner mounting level design, suitable for 800x800 TS frames. The product ships in packs of four, with a weight of 1.56 kg per pack, including assembly parts for installation.
This DK cable clamp rail is intended for cable routing on the enclosure frame, specifically on TS frames. It supports inner mounting level installations, allowing cables to be fastened with ties or nylon loops for neat, durable cable management. It is especially useful in 800 mm wide, 800 mm deep configurations and is compatible with TS frame systems used in control panels and switchgear housings.
The provided data lists ETIM 9 EC000322 and ECLASS 8.0 27400604 classifications, along with a customs tariff number 73269098 and EAN 4028177235090. It does not explicitly state SIL, CE, or IP ratings. For projects requiring specific certifications, verify the enclosure system compliance and any regional electrical standards with the integrator or supplier datasheets.
Using the DK cable clamp rail simplifies cable management, reducing installation time and labor costs due to its straightforward inner mounting and screw-secure design. The four-pack provides standardized components, improving procurement efficiency and ensuring consistent performance across multiple enclosures. This translates to faster cabinet builds, lower risk of cable wear, and easier future changes or expansions in 800x800 TS frame installations.
