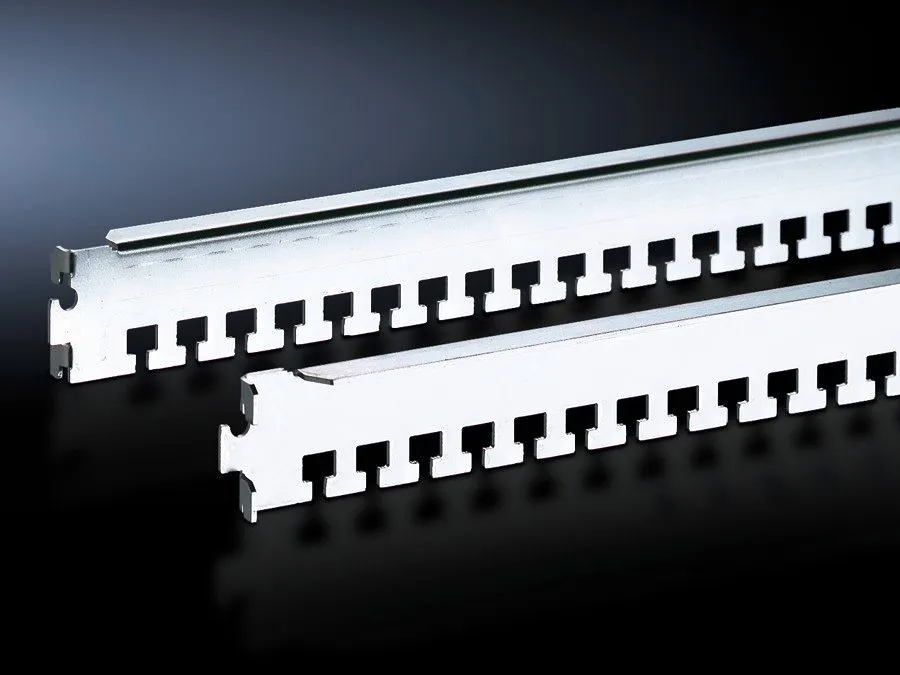

Rittal 7828121 TS Cable Clamp Rail - Inner mounting level
Part Number: 7828121
Quick Summary
TS cable clamp rail for inner mounting enables organized cable routing inside Rittal TS frames. Engineers often struggle with cluttered cables and time-consuming installs that slow assembly and compromise airflow. Designed with industry-standard safety and compatibility in mind, the solution supports CE-compliant installation practices and helps preserve enclosure IP integrity when integrated with compliant TS systems. This product delivers cost savings through faster wiring, reduced risk of cable damage, and easier maintenance, while complementing broader cable management strategies and improving overall cabinet performance in industrial environments.
Product Information
Extended Description
7828121 Rittal: TS Cable clamp rail, For the inner mounting level, For WxD: 1200 mm
Article number
DK 7828.121
Design
for the inner attachment level
Product description
For cable routing on the enclosure frame. The cables may be attached to the cable clamp rails with cable ties or nylon loops. The cable clamp rails are easily located onto the frame section of the enclosure frame or mounting frame, and may additionally be secured with a screw.
Applications
On the TS frame
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit
Enclosure type: TS | TS IT | Width: 1,200 mm | Depth: 1,200 mm
Packs of
4 pc(s).
Weight/pack
2.276 kg
Customs tariff number
73269098
EAN
4028177517790
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
TS Cable clamp rail, For the inner mounting level, For WxD: 1200 mm
Feature: The TS cable clamp rail is designed for the inner mounting level within TS frame constructions. Business Impact: This enables organized cable routing and reduces the time engineers spend aligning and securing conduits. Application: Particularly beneficial for 1,200 mm wide TS frames where cabling tends to run along the enclosure perimeter. Feature: Made from sheet steel with a zinc-plated surface. Business Impact: Delivers robust mechanical protection and corrosion resistance for long-term reliability in harsh industrial environments. Application: Suitable for ongoing cabinet maintenance and systems requiring durable cable routing hardware. Feature: Cables may be attached with cable ties or nylon loops. Business Impact: Provides flexible, rapid harnessing without specialized tools, reducing component counts and installation time. Application: Ideal for retrofit projects and standard TS frame installations. Feature: Easily located onto the frame section and may be screw-secured. Business Impact: Ensures stable mounting with minimal vibration, lowering noise and movement in operation. Application: Critical for vibration-prone applications and high-density cable arrangements. Feature: Packs of four with a weight per pack of 2.276 kg. Business Impact: Facilitates bulk stocking and predictable logistics for project planning and service contracts. Application: Suitable for multi-frame deployments and consistent cabinet builds. Compatibility: To fit enclosure type TS | TS IT with 1,200 mm width and 1,200 mm depth; Includes assembly parts to streamline installation.
Get a Quick Quote for a Rittal 7828121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7828121?
Enquire Now
FAQs
The clamp rail is designed for TS and TS IT enclosure frames with a width and depth of 1,200 mm. It installs on the inner mounting level and includes assembly parts for quick integration into standard 1,200 mm TS frame configurations. This makes it ideal for new builds and retrofits that follow Rittal’s TS frame geometry.
Cables can be secured to the clamp rails using cable ties or nylon loops, enabling rapid harnessing without specialized brackets. The rails simply locate onto the frame and can be screw-secured for added stability, reducing rework and improving airflow by keeping cables neatly arranged from the outset.
Yes, the DK 7828.121 is specified for TS and TS IT frames at 1,200 mm in width and depth. It ships in packs of four rails, so a typical project using multiple frames can be stocked efficiently. Assess frame count and install per frame to determine total units required.
The rail is made from sheet steel with a zinc-plated finish, providing durability in industrial environments. While CE safety practices apply to European cabinets, verify project-specific compliance and any IP or SIL considerations at the system level when integrating with broader enclosure solutions.
The internal mounting rails simplify future cable changes and expansions, reducing maintenance time and downtime. With packs of four and straightforward screw-assisted mounting, logistics costs are predictable, supporting faster project delivery and lower long-term maintenance overhead.
