Rittal 7829110 DK-TS Earthing kit - EC000329
Part Number: 7829110
Quick Summary
DK-TS Earthing kit is a pre-assembled star earthing solution designed to integrate into TS IT network enclosures. Engineers often battle wiring clutter and inconsistent grounding when retrofitting cabinets, leading to delays and reliability risks. The kit aligns with ETIM EC000329 and ECLASS 27400605 classifications while using a DIN EN compliant earth rail made from E-Cu 57 to DIN EN 12 163 and DIN EN 13 601. This combination simplifies procurement and installation, delivering robust grounding and streamlined maintenance while supporting scalable star potential equalisation for growing enclosures and systems.
Product Information
Extended Description
7829110 Rittal: DK-TS Earthing kit, pre-assembled, For WHD: 800x2200x ? 800 mm, For TS, TS IT
Article number
DK 7829.110
Product description

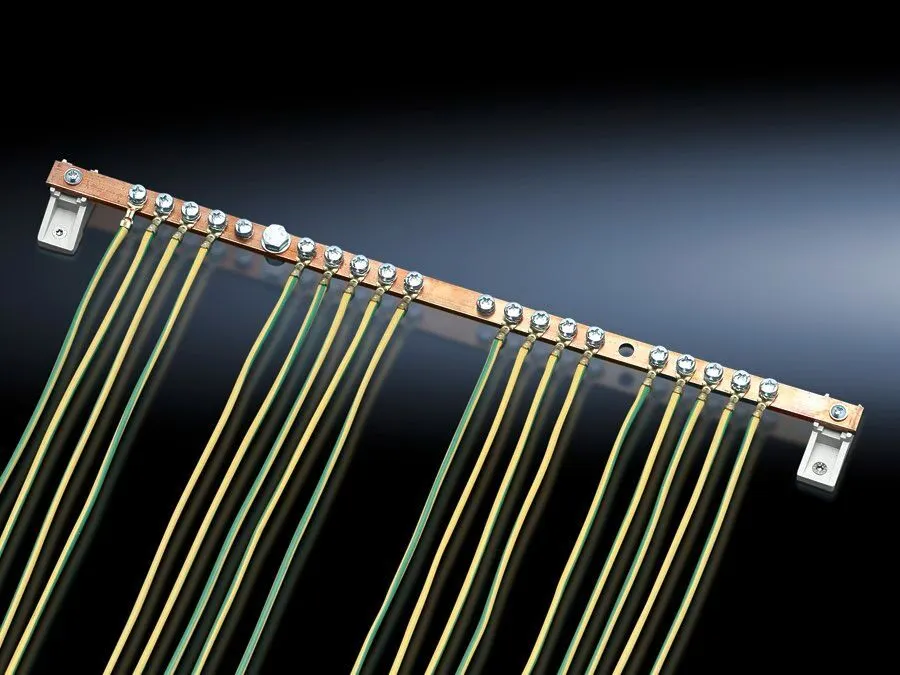

For star earthing. With the pre-assembled earth conductors on a potential equalisation rail, star potential equalisation is easily integrated into network enclosures.
Supply includes
Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601 | 16 earthing leads 6 mm² | 2 isolators | Assembly parts
To fit
Enclosure type: TS IT | Width: = 800 mm | Height: = 2,200 mm | Depth: ≥ 800 mm
Packs of
1 pc(s).
Weight/pack
2.019 kg
Customs tariff number
73269098
EAN
4028177235281
ETIM 9
EC000329
ECLASS 8.0
27400605
Product description
DK-TS Earthing kit, pre-assembled, For WHD: 800x2200x ? 800 mm, For TS, TS IT
Feature: Pre-assembled, ready-to-install star earthing for TS IT enclosures → Business Impact: Reduces on-site wiring time and eliminates loose connections, improving grounding reliability and safety → Application: Ideal for 800 mm wide, 2,200 mm tall WHD TS IT enclosures with a depth of at least 800 mm. Feature: E-Cu earth rail per DIN EN 12 163 and DIN EN 13 601 → Business Impact: Ensures high conductivity, corrosion resistance, and long-term performance, supporting regulatory compliance in harsh environments → Application: Suitable for main switchgear rooms and equipment cabinets exposed to variable loads. Feature: 16 earthing leads of 6 mm² plus 2 isolators and assembly parts → Business Impact: Provides a complete, field-ready solution that minimizes part mismatch and installation errors → Application: Accelerates project timelines for new builds and retrofits in TS IT systems. Feature: Enclosure compatibility for WHD 800x2200 TS IT → Business Impact: Clear fit reduces cabinet modification, lowers lifecycle cost, and minimizes change orders → Application: Works seamlessly with TS IT enclosure families in industrial plants. Feature: Procurement-aligned data (ETIM EC000329, ECLASS 27400605) → Business Impact: Improves data quality for sourcing, cataloging, and ERP integration → Application: Streamlines purchasing workflows for OEMs and integrators.
Get a Quick Quote for a Rittal 7829110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7829110?
Enquire Now
FAQs
Begin by mounting the E-Cu earth rail inside the TS IT enclosure, ensure correct alignment for an 800 mm width and 2,200 mm height, then connect all 16 x 6 mm² earthing leads to the rail using the provided parts and two isolators. Confirm firm contacts and route conductors to minimize bending and wear. Check for DIN EN compliance and perform a final continuity check.
The DK-TS Earthing kit is specified for TS IT enclosures with WHD dimensions 800x2200 mm and depth ≥ 800 mm. It includes a DIN EN compliant E-Cu earth rail and comes with 16 leads and isolators designed to fit the TS IT mounting profile, ensuring reliable star potential equalisation without cabinet modification.
The kit carries ETIM EC000329 and ECLASS 27400605 classifications, supporting accurate cataloging and data interoperability. The earth rail uses DIN EN 12 163 and DIN EN 13 601 standards, ensuring electrical grounding compliance within industrial cabinets and network enclosures.
Expect faster installation due to pre-assembled conductors, improved grounding reliability with a stable star earthing configuration, and reduced risk of grounding faults. The integrated assembly parts and isolators simplify maintenance and future expansions, while DIN EN-compliant components support regulatory and safety requirements.
While the upfront cost includes a complete earthing package, the kit shortens installation time, reduces field wiring errors, and lowers maintenance risk. Over the lifecycle of TS IT enclosures, this translates into lower labor costs, fewer grounding faults, and improved system uptime, delivering measurable ROI for projects and plant operations.
