Rittal 7829150 Earthing extension kit - UL Style 1015 AWG 12
Part Number: 7829150
Quick Summary
Earthing extension kit DK 7829.150 adds extra earth straps to TS IT enclosures for reliable potential equalisation. In complex automation panels, achieving consistent earth contact and bonding with the enclosure frame is often time-consuming and prone to errors. The data references ETIM 9 EC001503 and ECLASS 8.0 27149219 standards, supporting interoperability and procurement accuracy, while UL-style connectors facilitate quick, secure installation. Note that explicit CE, SIL, or IP ratings are not listed in the provided data, but the kit’s pre-assembled conductors and standardized components promote safe, compliant integration. This solution improves installation speed, reduces risk, and supports scalable earthing across multiple TS IT enclosures, aligning with efficiency goals and long-term maintenance planning.
Product Information
Extended Description

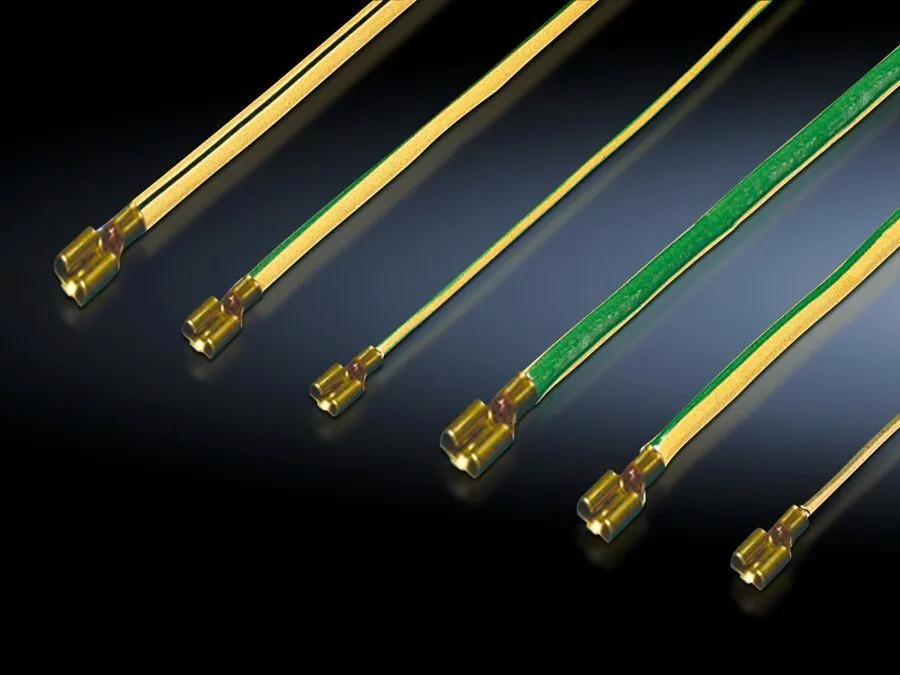

7829150 Rittal: DK Earthing extension kit for TS IT, 8 earth straps, UL Style 1015 AWG 12
Article number
DK 7829.150
Product description
To supplement the existing earthing or potential equalisation sets for integrating additional installation components into the potential equalisation system. For targeted contact of installation components with the enclosure frame. The earth conductors are pre-assembled with connectors ready for connection and cut to the correct length.
Applications
For extending the existing earthing/potential equalisation kit
Supply includes
8 earth straps, UL style 1015 AWG 12 | Connection accessories
Packs of
1 pc(s).
Weight/pack
0.29 kg
Customs tariff number
73269098
EAN
4028177302570
ETIM 9
EC001503
ECLASS 8.0
27149219
Product description
DK Earthing extension kit for TS IT, 8 earth straps, UL Style 1015 AWG 12
Eight earth straps are supplied, pre-assembled with UL Style 1015 AWG 12 connectors. This design minimizes on-site preparation time and guarantees uniform earth contact across installation points, reducing variance in bonding quality. Application: An ideal extension for TS IT enclosures when expanding an existing potential equalisation system.\n\nThe kit includes connection accessories and is sized to cut to length at a controlled point. This arrangement eliminates guesswork and rework from field modifications, improving installation predictability and safety. Application: Supports quick augmentation of current earthing arrangements without dismantling existing components.\n\nLightweight packaging at 0.29 kg per pack and a single-pack configuration simplifies logistics, enabling multi-site deployments and easier inventory management. Application: Suitable for refurbishments or greenfield projects in automation cabinets where space and handling matter.\n\nClear product descriptors with ETIM 9 EC001503 and ECLASS 8.0 27149219 alignment enhance interoperability in purchasing systems, reducing supplier queries and accelerating procurement. Application: Helps engineers locate compatible components in ERP and catalog platforms.\n\nThe DK 7829.150 is designed to supplement existing earthing/potential equalisation kits. This extends the capability of existing safety systems while preserving enclosure frame bonding integrity. Application: Use with TS IT enclosures to extend earth bonding across added installation components.
Get a Quick Quote for a Rittal 7829150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7829150?
Enquire Now
FAQs
Yes. The DK 7829.150 kit is designed to extend existing earthing or potential equalisation sets for TS IT enclosures and works with pre-installed connectors. It ships with eight UL Style 1015 AWG 12 earth straps and included connection accessories, simplifying retrofits or new builds. Expect faster installation, improved bonding consistency, and reduced risk of mis-bonded components in control panel assemblies.
Key electrical specifics include eight earth straps, UL Style 1015 AWG 12, and pre-assembled connectors that ensure a defined conductor length and reliable contact with the enclosure frame. This arrangement reduces voltage drop and stray impedance, supporting compliant earth bonding during commissioning. It also complements existing earthing kits by providing a scalable extension for multi-component installations.
Industries relying on robust control cabinets and modular IT enclosures benefit most. The DK 7829.150 is well suited for panel builders, automation integrators, and data-center environments that require reliable potential equalisation and expanded earthing coverage. Its eight straps and connectors support scalable configurations, reducing planning time and improving system uptime in harsh industrial environments.
It aligns with ETIM 9 EC001503 and ECLASS 8.0 27149219, assisting interoperability across ERP and purchasing systems. The article number is DK 7829.150, and the EAN is 4028177302570 for traceability. While explicit CE, SIL, or IP ratings are not listed, the UL Style 1015 AWG 12 conductors and standardized connectors support regulatory compatibility and consistent spec alignment.
Investing in the DK 7829.150 yields measurable ROI through faster commissioning, fewer field errors, and extended service life of earthing networks. The eight straps with pre-assembled connectors reduce labor costs and rework. Ongoing maintenance is simplified by standardized components and clear part numbering, which streamlines spare-part management and future expansions in growing automation environments.
