Rittal DK 7829.200 Central Earthing Point - ETIM EC001503
Part Number: 7829200
Manufacturer
Rittal
Part number
7829200
Alt Part Number
DK 7829.200
Quick Summary
Rittal DK 7829.200 Central Earthing Point provides a reliable earth connection for enclosure frames in electrical cabinets. Manufacturers often battle inconsistent grounding, loose connections, and corroded hardware that slow commissioning and increase maintenance costs. Although this data does not list explicit CE or IP ratings, the part aligns with ETIM EC001503 and ECLASS 27149219 classifications and uses zinc-plated sheet steel for durable service. For panel builders, this translates to faster installs, consistent grounding across enclosures, and fewer field adjustments during commissioning. By integrating a standardized earth path with simple M8 connections, you unlock reliable fault-current paths and scalable infrastructure for growing control systems.
Product Information
Extended Description
7829200 Rittal: DK Central earthing point
Article number
DK 7829.200
Product description

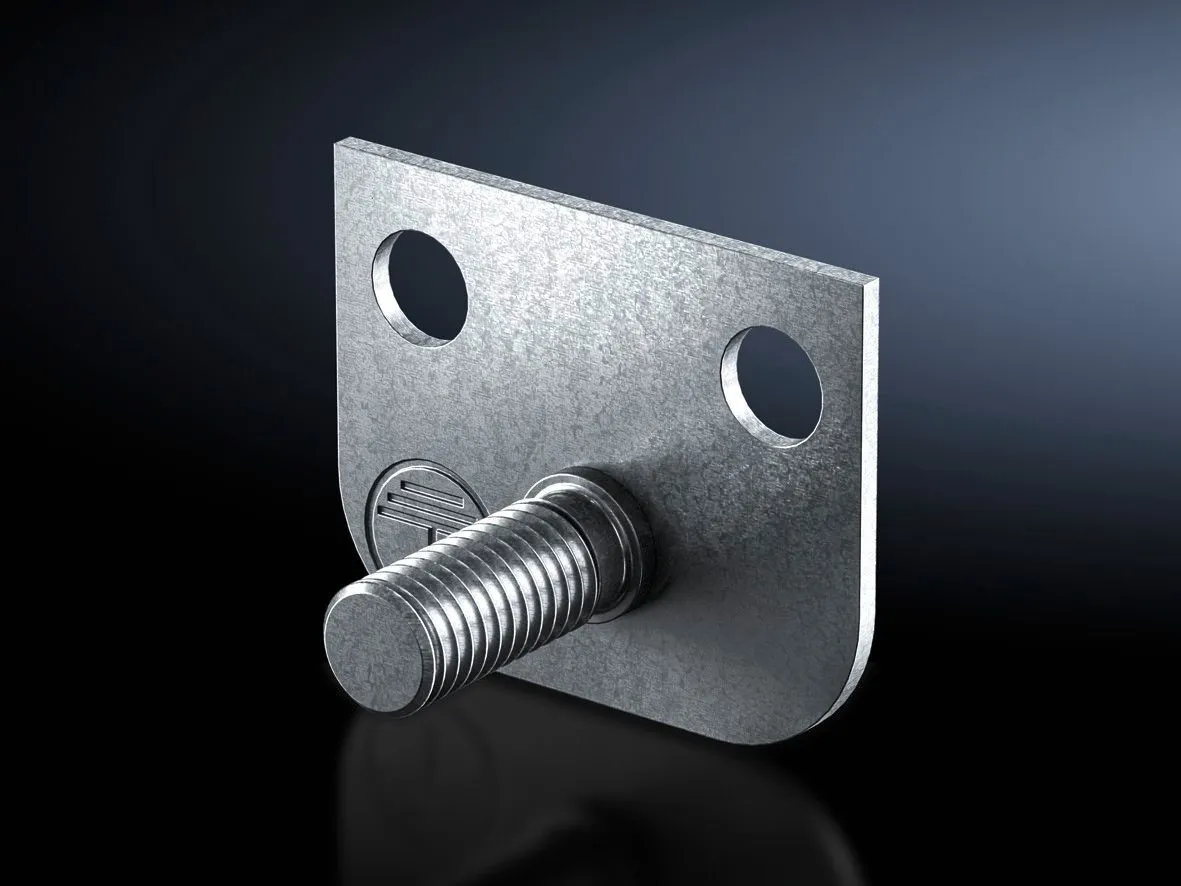

For connecting earth straps, earthing braids to the vertical and horizontal enclosure section. The connection bracket is connected to the enclosure frame with 2 screws and is securely contacted. Earth connection is carried out via the threaded bolt M8 x 20 mm.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
1 connection bracket | 2 assembly screws | 1 serrated washer | 1 nut M8 | 1 contact washer M8 | 1 washer
Packs of
1 pc(s).
Weight/pack
0.038 kg
PCF per pack (cradle-to-gate)
0.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177231979
ETIM 9
EC001503
ECLASS 8.0
27149219
Product description
DK Central earthing point
Feature: Material and finish use of zinc-plated sheet steel provides natural corrosion resistance and extended service life in challenging industrial environments. Business Impact: Reduces maintenance costs and minimizes downtime due to degraded grounding points. Application: Ideal for rugged electrical enclosures and outdoor installations where grounding reliability is critical. Feature: Connection method employs an M8 x 20 mm threaded bolt with two enclosure mounting screws ensuring a robust, low-resistance earth path. Business Impact: Improves vibration resistance and long-term contact stability, lowering rework risk. Application: Suitable for vertical and horizontal enclosure sections in control panels. Feature: Comprehensive supply includes 1 connection bracket, 2 assembly screws, 1 serrated washer, 1 nut M8, 1 contact washer M8, 1 washer. Business Impact: Streamlines procurement and speeds up on-site installation, reducing project lead times. Application: Field installs and retrofits across multiple enclosure lines. Feature: Weight per pack 0.038 kg and PCF 0.1 kg CO2 eq (Cat B) offer eco-friendly procurement. Business Impact: Supports sustainability reporting and lower logistics footprint. Application: Product selection for compliant, green automation projects. Feature: ETIM EC001503 and ECLASS 27149219 alignment enables consistent cataloging and procurement. Business Impact: Enhances supplier data quality, improves BOM accuracy, and accelerates sourcing. Application: ERP and purchasing workflows in industrial environments.
Get a Quick Quote for a Rittal 7829200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7829200?
Enquire Now
FAQs
Yes. DK 7829.200 is designed to attach to the enclosure frame using two screws and utilizes an M8 x 20 mm bolt for the earth connection. It fits the vertical and horizontal enclosure sections and follows Rittal's mounting patterns, making it straightforward to integrate into new builds or retrofits without special housings.
The part is manufactured from sheet steel with a zinc-plated finish, offering corrosion resistance appropriate for harsh industrial environments. It is supplied as a 1 pack containing the connection bracket, mounting screws, washers, and nuts required for immediate installation, supporting long-term grounding reliability.
Each pack includes 1 connection bracket, 2 assembly screws, 1 serrated washer, 1 nut M8, 1 contact washer M8, and 1 additional washer. This complete hardware kit minimizes procurement steps and speeds up installation during panel assembly or service work, reducing downtime.
Earth connection is made via the M8 x 20 mm threaded bolt integrated into the bracket. The bracket attaches to the enclosure frame with two screws, and a contact washer plus nut ensure a secure, low-resistance contact. Place this grounding point on the enclosure frame sections needing a reliable earth path for straps or braids.
The PCF is 0.1 kg CO2 eq per pack (Category B), reflecting cradle-to-gate emissions based on weight. While explicit CE or IP ratings are not listed in this data, the product aligns with ETIM EC001503 and ECLASS 27149219 classifications, supporting accurate supplier data in procurement and compliance reporting.
