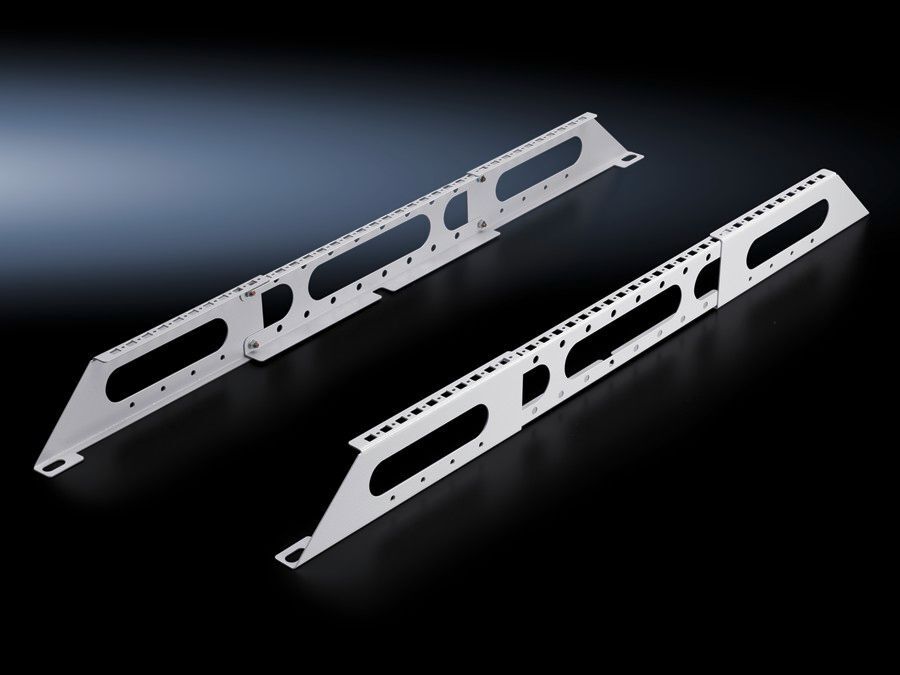

Rittal DK 7831.472 TS System - 102 mm support height
Part Number: 7831472
Quick Summary
Rittal DK 7831.472 TS System cable route support enables versatile attachment to 800–1200 mm deep network racks. For engineers wrestling with securing multiple cable routes while preserving clear airflow and serviceability, this solution streamlines installation, reduces commissioning time, and minimizes misrouting. It aligns with widely adopted safety and environmental standards, supporting reliable operation in data centers and IT rooms while meeting internal policies. The powder-coated finish in RAL 7035 helps maintain a professional appearance and facilitates durable, easy-to-clean cable management across applications. This rack accessory is designed to integrate with TS System supports for cable routes, delivering practical value across IT cabinets and rack installations.
Product Information
Extended Description
7831472 Rittal: TS System supports for cable routes, Support height 102 mm
Article number
DK 7831.472
Design
Support height 102 mm
Product description
The depth-variable support system may be attached to all 800 – 1200 mm deep network racks with external screw-fastening of the roof plate. The integral system punchings, for screws or captive nuts, support the attachment of most common cable route systems.
Material
Sheet steel
Surface finish
Powder-coated
Colour
RAL 7035
Note
Supports combination with fan mounting plate for VX IT
Packs of
2 pc(s).
Weight/pack
3.49 kg
PCF per pack (cradle-to-gate)
13.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177517301
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
TS System supports for cable routes, Support height 102 mm
Feature: Depth-variable TS System supports for cable routes. Business impact: Flexible routing reduces the need for multiple accessories and accelerates deployment in complex rack environments. Application: IT cabinets and data centers seeking scalable cable management. The system’s attachment to 800–1200 mm deep racks simplifies retrofits and future reconfigurations, improving serviceability and reducing downtime. Feature: Integral punchings for screws or captive nuts. Business impact: Seamless compatibility with common cable route systems, lowering installation effort and material waste. Application: Rapid mounting in multi-tenant data centers and high-density racks. Feature: Material and finish. Business impact: Sheet steel with a powder-coated finish provides durability, corrosion resistance, and color consistency with standard enclosures (RAL 7035), reducing touch-up costs and improving long-term aesthetics. Application: Enclosures exposed to varying environments. Feature: Pack composition and weight. Business impact: Packs of two at 3.49 kg per pack optimize logistics, reduce packaging waste, and simplify stock planning. Application: Warehouse and procurement workflows. Feature: Compatibility with VX IT fan mounting plate. Business impact: Enables combined configurations for enhanced airflow and added functionality without additional adapters. Application: VX IT racks and cooling-integrated layouts. Outcome: Improved cable organization, airflow management, and total cost of ownership for rack systems.
Get a Quick Quote for a Rittal 7831472
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7831472?
Enquire Now
FAQs
Yes. The TS System supports cable routes on 800–1200 mm deep network racks and attaches via external screw-fastening of the roof plate. It also notes compatibility with the fan mounting plate for VX IT, enabling combined configurations without extra adapters. The integral punchings accommodate screws or captive nuts for common cable route systems, simplifying retrofits and new builds.
Key specifications include article number DK 7831.472, design with a 102 mm support height, and sheet steel as the base material with a powder-coated finish in RAL 7035. Packaging is 2 pieces per pack, with a weight of 3.49 kg per pack. The product is identified by EAN 4028177517301 and customs tariff 73269098, with ETIM 9 EC000322 and ECLASS 8.0 27400604 classifications.
Absolutely. The TS System supports cable routes within 800–1200 mm deep racks, enhancing organization and airflow in data centers. Its depth-variable design and punchings for screws or captive nuts enable compatibility with most common cable route systems, reducing routing complexity and supporting scalable layouts in dense IT environments.
Effective cable routing typically improves airflow by minimizing cross-talk and blocking fewer vent paths. The DK 7831.472 TS System supports orderly cables and simplifies maintenance, which helps maintain consistent cooling performance in high-density racks. The powder-coated finish also contributes to durability in environments where cleaning and inspection are routine.
The DK 7831.472 TS System has a cradle-to-gate PCF of 13.3 kg CO2 eq per pack (Category B), reflecting a moderate environmental footprint for two units. Packaging optimization is supported by the two-pack configuration, which assists in logistics efficiency and warehouse space planning.
