Rittal 7856005 PSM Busbar - 16 A, 3~, 2000 mm TS 8
Part Number: 7856005
Manufacturer
Rittal
Part number
7856005
Category
Alt Part Number
DK 7856.005
Quick Summary
Rittal DK 7856.005 PSM busbar provides modular 7-way infeed for 3-phase rack power distribution. This design reduces downtime by enabling retrofits while the system remains operational. It supports CE safety considerations and offers shock hazard protection, with operation in 5 °C to 45 °C and 5–95% humidity for reliable performance in harsh environments. For scalable enclosure integration, it fits TS 8 | TS IT | VX IT heights up to 2,000 mm and uses a 3 m connection cable, simplifying layouts and accelerating installation.
Product Information
Extended Description

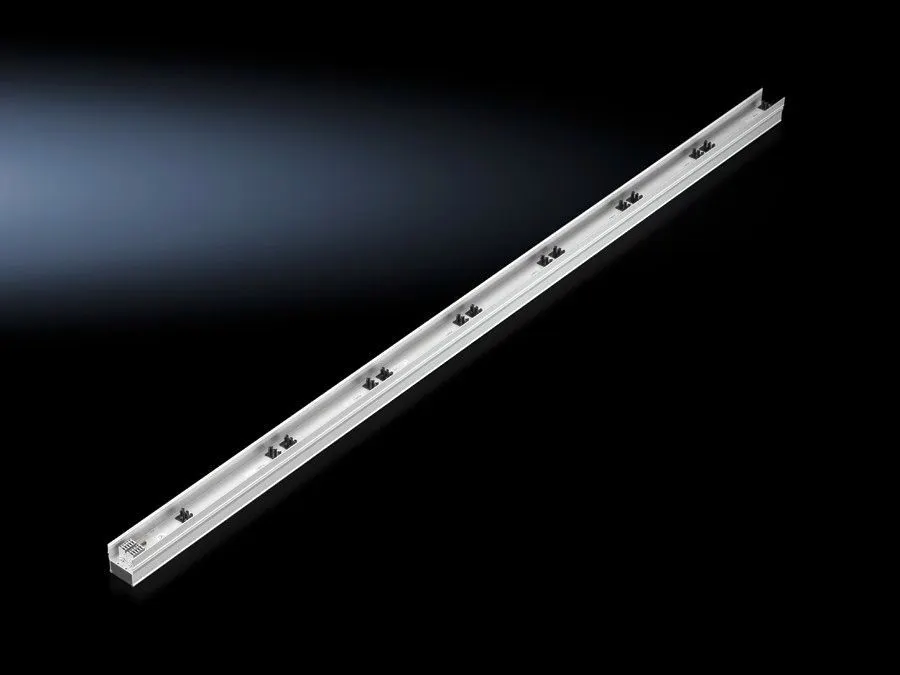

7856005 Rittal: DK PSM busbar, 7-way, 3~, 16 A, Infeed: 1, For H: 2000 mm
Article number
DK 7856.005
Design
With 3 m connection cable (connector type CEE/EN 60 309)
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. This can even be done whilst the system is operational, because the support section is shock hazard-protected.
Benefits
Modules may be retrofitted whilst operational.
Technical specifications
Each plug-in module picks off a phase on the support rail, either from infeed or from the redundant infeed, depending on the direction of connection.
Material
Aluminium section, natural anodised
Length of connection cable
3 m
Type of electrical connection
CEE
Qty.
1
Phases per infeed
3~
Rated current (max.)
16 A
Module slots (max.)
7
To fit
Enclosure type: TS 8 | TS IT | VX IT | Height: 2,000 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Storage temperature range
-20 °C...60 °C
Packs of
1 pc(s).
Weight/pack
5.1 kg
Customs tariff number
85369001
EAN
4028177579200
ETIM 9
EC002762
ECLASS 8.0
27371306
Product description
DK PSM busbar, 7-way, 3~, 16 A, Infeed: 1, For H: 2000 mm
Feature: 7-way, 3-phase infeed delivers centralized power in a single modular rail, enabling predictable current sharing up to 16 A per outfeed. Business impact: reduces copper wiring, shortens panel build time, and improves reliability for rack power distribution. Application: ideal for TS 8, TS IT, and VX IT enclosures in data centers and industrial automation lines. Feature: Modules may be snap-fitted into the support rail and retrofit while the system is operational. Business impact: minimizes downtime during upgrades and expansions, supports quick reconfiguration, and lowers maintenance costs. Application: suitable for live-line changes in manufacturing cells and data-center racks. Feature: 3 m CEE/EN 60309 connection cable with a robust aluminium anodised body. Business impact: simplifies routing and reduces installation time while maintaining durability in harsh environments. Application: large enclosure layouts where distance or routing complexity matters. Feature: Aluminium section, natural anodised, weight 5.1 kg per pack. Business impact: lightweight yet sturdy construction improves handling and reduces installation labor. Application: field installs on raised racks and modular power rails. Feature: Operating range 5 °C...45 °C and humidity 5...95% non-condensing. Business impact: expands applicability in factory floors, machine rooms, and outdoors with proper cabling. Application: reliable power distribution in variable environments. Feature: To fit TS 8 | TS IT | VX IT with height 2,000 mm and up to seven module slots. Business impact: scalable configuration supports growth without reengineering, promoting long-term ROI. Application: adaptable to modular data centers and automation cabinets.
