Rittal 7856025 DK Connection Cable - CEE 3P+N+PE, 16 A
Part Number: 7856025
Manufacturer
Rittal
Part number
7856025
Category
Alt Part Number
DK 7856.025
Quick Summary
Rittal DK Connection Cable for the Power System Module provides a reliable, preassembled 3-phase power link for industrial cabinets. Field terminations are often time-consuming and prone to wiring errors; this cable minimizes those issues and speeds up commissioning. The design aligns with common electrical safety standards, including CE compliance and compatibility with IP-rated environments, while also fitting industry classifications for streamlined procurement. In practice, this cable reduces downtime and simplifies service, delivering safe, standards-aligned power distribution in demanding industrial settings. This makes it a strong fit for engineering teams seeking reliability, efficiency, and repeatable setups in control panels and power distribution cabinets.
Product Information
Extended Description

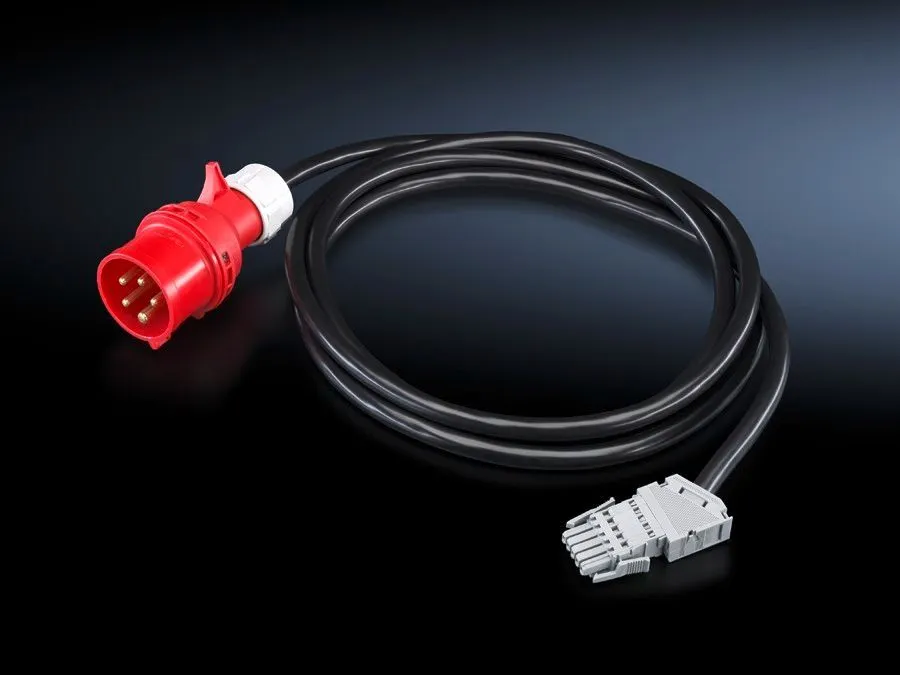

7856025 Rittal: DK Connection cable, L: 3 m, 16 A, 3-phase, Wago X-Com, CEE, For PSM
Article number
DK 7856.025
Design
3-phase
Connector (type)
CEE (3P+N+PE)
Rated current (max.)
16 A
Dimensions
Length: 3 m
Sockets
Wago X-Com
Packs of
1 pc(s).
Weight/pack
0.955 kg
Customs tariff number
85444290
EAN
4028177415805
ETIM 9
EC001576
ECLASS 8.0
27060402
Product description
DK Connection cable, L: 3 m, 16 A, 3-phase, Wago X-Com, CEE, For PSM
Feature: Preassembled DK Connection Cable enables quick, plug-and-play installation. Business Impact: Reduces on-site wiring time and field termination errors, lowering labor costs and downtime. Application: Ideal for Power System Module connections in industrial control cabinets where fast commissioning is critical. Feature: 3-phase design with 16 A rating and CEE (3P+N+PE) connector. Business Impact: Delivers dependable three-phase power with safe current handling, reducing overheating risk and improving system stability. Application: Power routing for PSМ in demanding industrial environments. Feature: Wago X-Com sockets provide secure, maintenance-friendly connections. Business Impact: Enhances contact reliability and simplifies future maintenance or remediation work. Application: Frequent inspection points in cabinet wiring where fast disconnects matter. Feature: 3 m length offers flexible routing within varied enclosure layouts. Business Impact: Enables cleaner cable management and fewer adapters, cutting installation complexity. Application: Cabinet-to-module runs across typical equipment footprints in automation setups. Feature: Pack specifications and robust build support procurement and logistics. Business Impact: Simplifies stocking with a single-pack solution and predictable weight, reducing inventory variance. Application: Distribution across maintenance teams and field service for consistent replacements.
Get a Quick Quote for a Rittal 7856025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7856025?
Enquire Now
FAQs
The DK 7856.025 is designed for Power System Module (PSM) applications within Rittal enclosures and other industrial cabinets that require a 3-phase, 16 A connection. It uses a CEE (3P+N+PE) interface with Wago X-Com sockets, enabling secure, plug-and-play integration into standard power distribution layouts. This makes it suitable for new builds and retrofit projects alike, helping to minimize custom cabling and field termination time.
The CEE (3P+N+PE) connector provides a standardized, rugged interface for three-phase power with protective Earth, ensuring reliable current sharing and safer disconnections. This improves fault isolation and reduces the risk of mis-wiring. For PSM connections, it supports clean power transfer in demanding environments, enhancing overall system reliability and simplifying compliance with industrial wiring practices.
Yes. The cable is specified with Wago X-Com sockets, offering secure retention and straightforward maintenance access. This combination supports reliable contact integrity under vibration and temperature variations typical in automation cabinets. It also simplifies future upgrades or changes to the PSМ wiring, reducing downtime during maintenance cycles.
A 3 m length provides flexible routing between the Power System Module and adjacent components without excessive slack, helping to maintain clean cable management and minimize strain on connectors. It suits standard cabinet dimensions and reduces the need for additional adapters or splices, leading to faster commissioning and fewer potential points of failure in daily operation.
Because the cable uses robust Wago X-Com contacts and a 3P+N+PE CEE interface, routine inspection should focus on connector integrity and cable insulation condition. The 3 m length is manageable for typical cabinet layouts, supporting predictable routing. Regular checks during preventive maintenance help ensure continued secure connections and minimize unexpected power-distribution interruptions in production environments.
