Rittal DK 7856.070 PSM Plus Socket Module - Overcurrent
Part Number: 7856070
Manufacturer
Rittal
Part number
7856070
Category
Alt Part Number
DK 7856.070
Quick Summary
Rittal DK 7856.070 PSM Plus socket module enables modular power distribution for 19-inch equipment racks. Configuring racks quickly without risking shock hazards or miswiring is a common challenge for maintenance teams. In regulated environments, safety and reliability expectations include CE compliance and robust IEC/EN references, while rugged construction supports challenging industrial conditions. The plug‑and‑play design minimizes wiring complexity; thermal overcurrent protection per socket module improves uptime and fault isolation. With a 110–230 V AC rating, 6 x IEC 320 sockets, and a compact 250 mm length, this module integrates smoothly into existing rack ecosystems, helping you meet compliance, reduce installation time, and lower total cost of ownership. Practical value comes from clear documentation and scalable module slots for future expansion.
Product Information
Extended Description

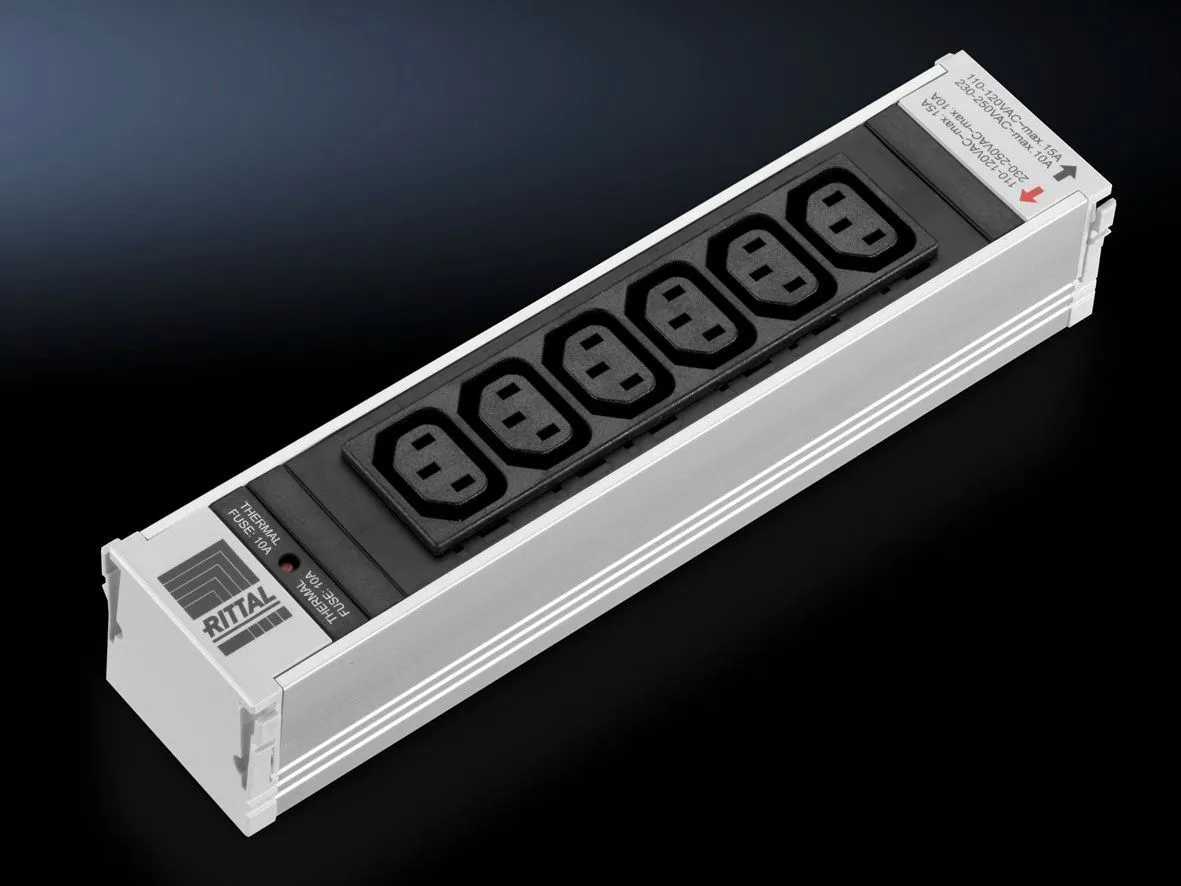

7856070 Rittal: DK PSM Plus socket module, C13, 6-way, black, non-switchable, with thermal overcurrent protection
Article number
DK 7856.070
Design
non-switchable
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Type of electrical connection
WAGO WINSTA MIDI
Phases per infeed
1~
Thermal overcurrent protection
per socket module
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
6 x IEC 320 socket C13
Packs of
1 pc(s).
Weight/pack
0.342 kg
Customs tariff number
85369001
EAN
4028177402522
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, C13, 6-way, black, non-switchable, with thermal overcurrent protection
Feature: Modular, snap‑fit into a vertical support rail. Business Impact: accelerates rack configuration and reduces wiring errors by enabling rapid reconfiguration of power feeds. Application: ideal for 19‑inch rack power distribution in data centers, automation cabinets, and control panels. Feature: Six IEC 320 C13 sockets with single‑phase infeed and per‑socket thermal overcurrent protection. Business Impact: safeguards critical loads, enables fault isolation, and maintains uptime even during partial failures. Application: powering PLCs, drives, and automation controllers in industrial panels. Feature: Shock hazard protected plug‑and‑play system. Business Impact: safer installation for technicians and non‑electricians, cutting commissioning time and training costs. Application: field retrofits and modular cabinet upgrades in production lines. Feature: Robust aluminium anodised chassis with PA6 GF 30 V1 socket inserts. Business Impact: resists corrosion and wear in challenging environments, reducing maintenance downtime. Application: harsh factory floors, chemical plants, and outdoor enclosures. Feature: 250 mm length, 1 module slot, 110–230 V AC, 16 A per socket. Business Impact: compact footprint and scalable rack integration, enabling future expansion without redesign. Application: automation cabinets and data centers with constrained space.
