Rittal 7856080 DK PSM Plus socket module - non-switchable
Part Number: 7856080
Manufacturer
Rittal
Part number
7856080
Category
Alt Part Number
DK 7856.080
Quick Summary
Rittal DK PSM Plus socket module is a modular power distribution solution for industrial racks and control panels. In tight machine rooms, wiring complexity and misconnection slow commissioning and increase safety risks. While the data sheet doesn’t specify explicit CE, SIL, or IP certifications, the product is designed to align with common industry safety practices for modular enclosures. Its plug‑and‑play approach and compact 250 mm length provide scalable, cost‑efficient power distribution for modern industrial automation and rack systems.
Product Information
Extended Description

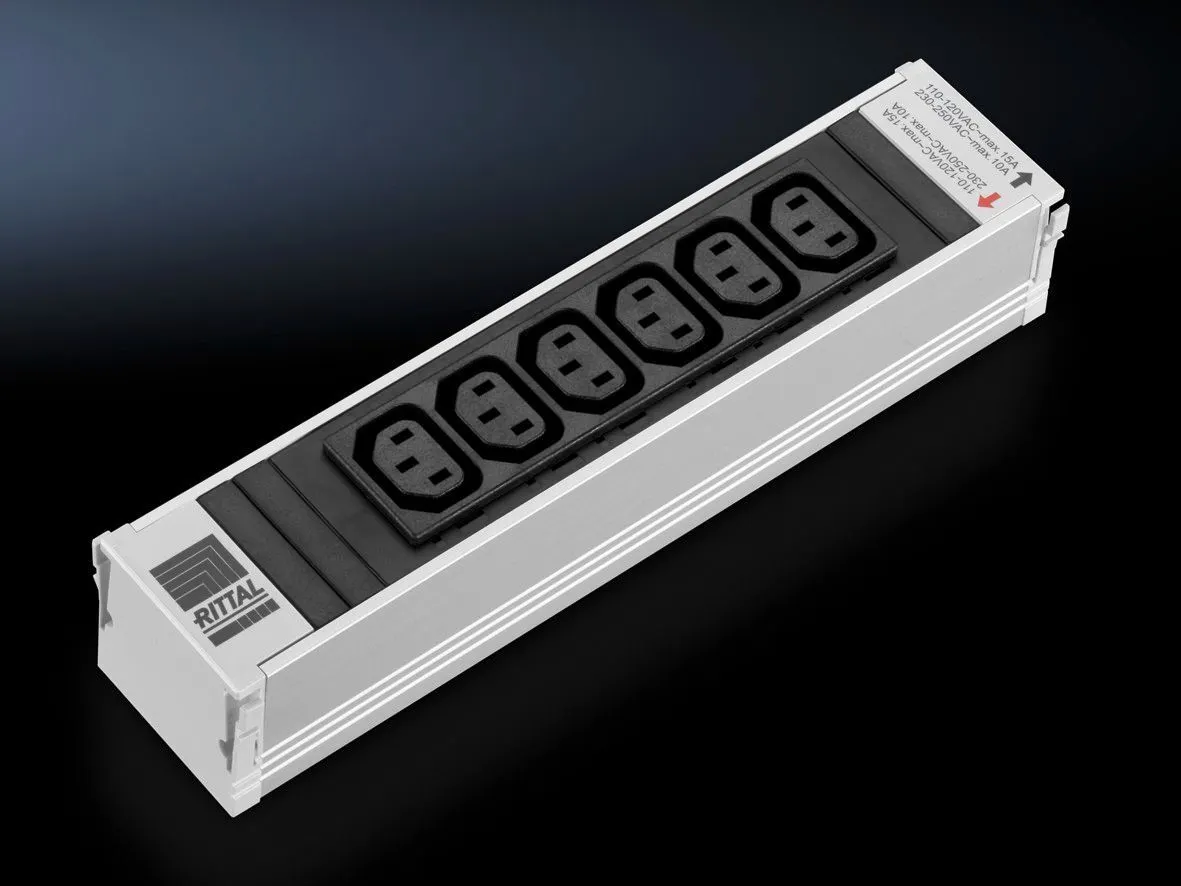

7856080 Rittal: DK PSM Plus socket module, C13, 6-way, black, non-switchable
Article number
DK 7856.080
Design
non-switchable
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Type of electrical connection
WAGO WINSTA MIDI
Phases per infeed
1~
Thermal overcurrent protection
–
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
6 x IEC 320 socket C13
Packs of
1 pc(s).
Weight/pack
0.332 kg
Customs tariff number
85369001
EAN
4028177402539
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, C13, 6-way, black, non-switchable
The modular DK PSM Plus system enables snap‑fit installation into a 35 mm DIN rail, which reduces installation time and minimizes wiring errors, delivering a tangible return on labor and a more reliable rack power backbone for automation projects. The C13, 6‑way sockets in a black, non‑switchable configuration provide straightforward cabling for control panels, with a compact 250 mm footprint that fits tight enclosures and keeps cabinet interiors tidy. Aluminum anodised chassis withstands harsh environments, while PA6 GF 30 V1 socket inserts resist mechanical wear and chemical exposure, extending component life in busy manufacturing lines. Compatibility with WAGO WINSTA MIDI connections ensures robust, vibration‑tolerant terminations, simplifying upgrades and future scalability. The product is designed for single infeed operation at 110–230 V AC, 50/60 Hz, 16 A max, making it broadly adaptable across regional power standards. Operating and ambient conditions (5 °C to 45 °C and 5–95% RH non‑condensing) support reliable performance in varied industrial zones, from assembly floors to data‑driven control cabinets.
Get a Quick Quote for a Rittal 7856080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7856080?
Enquire Now
FAQs
The DK 7856.080 is designed for Rittal’s DK PSM Plus system and fits standard 35 mm DIN rails inside rack enclosures. It requires one module slot and integrates with WAGO WINSTA MIDI connections for reliable terminations. The unit is 250 mm long and supplies six C13 sockets from a single 110–230 V AC infeed, simplifying system expansion.
This module provides a 110–230 V AC, 50/60 Hz supply up to 16 A maximum. It features 6 IEC 320 C13 sockets in a 6‑way arrangement, with a single infeed and a non‑switchable design. The housing uses an Aluminium anodised chassis with PA6 GF 30 V1 socket inserts for durability in industrial environments.
Yes. With its modular rail‑mount design, six C13 outlets, and a compact 250 mm footprint, the DK 7856.080 is ideal for control panels and rack systems in manufacturing, packaging, and automation lines. The plug‑and‑play concept reduces commissioning time and is compatible with existing Rittal enclosures and DIN rail layouts.
The product data provides key identifiers (including EAN, ETIM EC000330, and ECLASS 27142604) but does not specify CE, IP, or SIL certifications. For regulatory compliance in your region, verify CE marking and any region‑specific standards with the supplier and confirm IP protection where enclosure ingress protection is required.
The plug‑and‑play, modular approach reduces installation time and training needs, while the snap‑fit design supports rapid reconfiguration as system requirements evolve. Upfront compatibility with 1 infeed and 6 C13 sockets minimizes spare parts and simplifies future upgrades, delivering lower total cost of ownership across multi‑rack deployments.
