Rittal 7856090 DK PSM Plus Socket Module - 4-way protection
Part Number: 7856090
Manufacturer
Rittal
Part number
7856090
Category
Alt Part Number
DK 7856.090
Quick Summary
Rittal 7856090 DK PSM Plus Socket Module is a modular power distribution accessory for rack systems in industrial cabinets. Engineers seek a quick, safe way to configure racks without complex wiring, and this module delivers via snap-in integration on a vertical support rail for plug-and-play operation. CE compliance and robust environmental tolerance support reliable use in European and global applications, where 5 °C to 45 °C and 5–95% non-condensing humidity are common. By enabling scalable configuration and reuse across projects, it helps shorten installation times, reduce risk, and lower lifecycle costs while delivering dependable power to active components.
Product Information
Extended Description

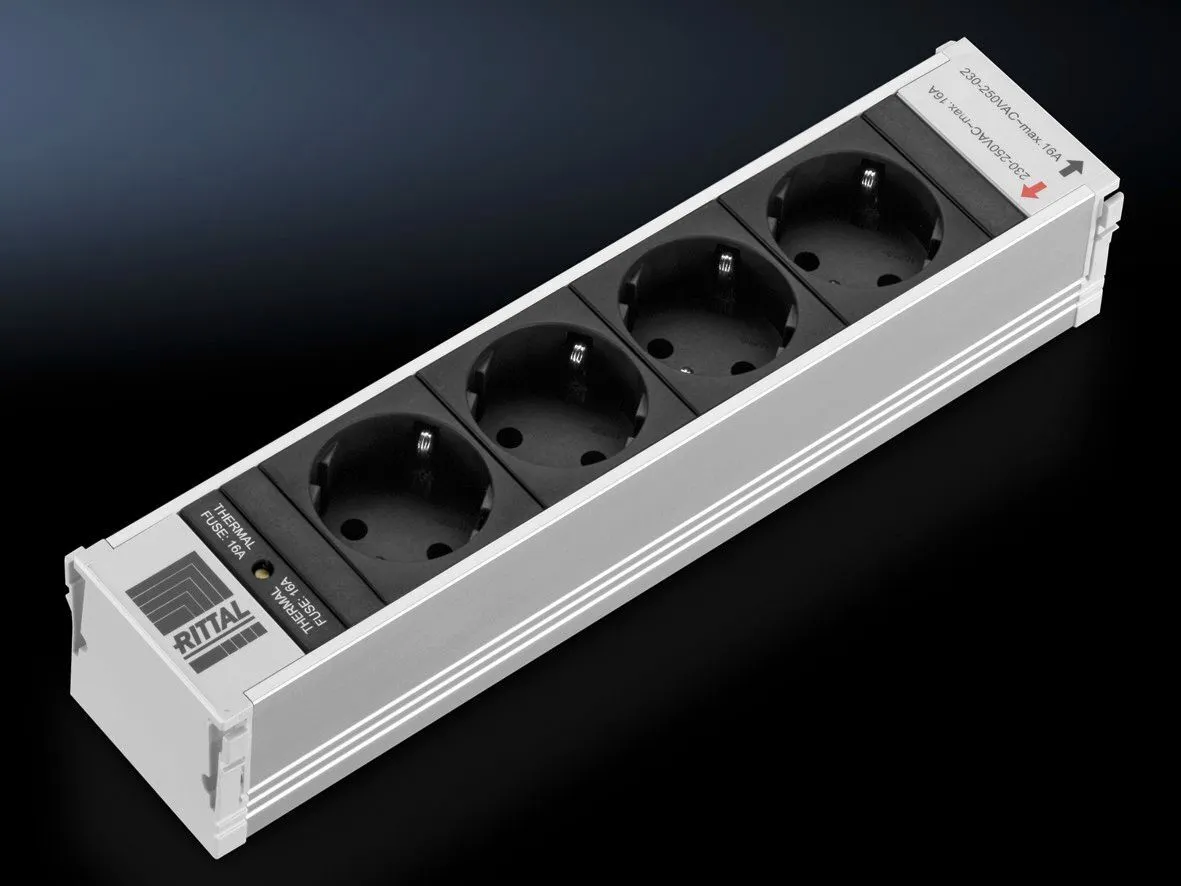

7856090 Rittal: DK PSM Plus socket module, CEE 7/3 (type F), 4-way, black, non-switchable, with thermal overcurrent protection
Article number
DK 7856.090
Design
non-switchable
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Type of electrical connection
WAGO WINSTA MIDI
Phases per infeed
1~
Thermal overcurrent protection
per socket module
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
4 x D, earthing-pin (type F, CEE 7/4)
Packs of
1 pc(s).
Weight/pack
0.355 kg
Customs tariff number
85369001
EAN
4028177402546
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, CEE 7/3 (type F), 4-way, black, non-switchable, with thermal overcurrent protection
Feature they can snap into a vertical support rail and configure modularly → Business impact is faster rack configuration and reduced wiring errors → Application in electrical cabinets and industrial automation. The module provides 4 x D sockets with earthing-pin (type F, CEE 7/4) → Business impact is safer connections and compliant grounding for multiple devices → Application for multi-device feeds in single rack zones. Thermal overcurrent protection per socket → Business impact is enhanced component protection and reduced risk of overheating → Application in high-load, 1~ single-phase infeed scenarios where safety margins matter. Rated 110–230 V AC, 50/60 Hz, 16 A max per socket → Business impact is global compatibility and consistent performance across regions → Application in 1-phase industrial power distribution with flexible mains input. Aluminium section, anodised; socket inserts in PA6 GF 30 V1 → Business impact is durable housing with long service life and resistance to corrosion in harsh environments → Application in outdoor or semi-enclosed racks where durability matters. Length 250 mm, weight 0.355 kg per pack; supports 1 module slot per unit → Business impact is compact installation and predictable rack footprint → Application in space-constrained cabinets and modular builds. Compatibility with WAGO WINSTA MIDI connectors → Business impact is rapid, proven connectivity and reduced installation time → Application in mixed-module racks where standardized connectors streamline assembly.
