Rittal DK PSM Plus 7856120 Socket Module - Type E
Part Number: 7856120
Manufacturer
Rittal
Part number
7856120
Category
Alt Part Number
DK 7856.120
Quick Summary
The Rittal DK PSM Plus 7856120 socket module provides modular, rail-mounted power distribution for European enclosures. Engineers often contend with wiring complexity and safety risks when configuring racks, and this plug‑and‑play module minimizes wiring errors by snapping into a vertical support rail. Designed for CE-compliant safety and rugged industrial use, it supports 110–230 V AC and up to 16 A in a compact 250 mm footprint, with a shock hazard protected approach. Ideal as an industrial enclosure accessory, it delivers quick configuration, reduces installation time, and supports scalable modular power distribution for growing control panels.
Product Information
Extended Description

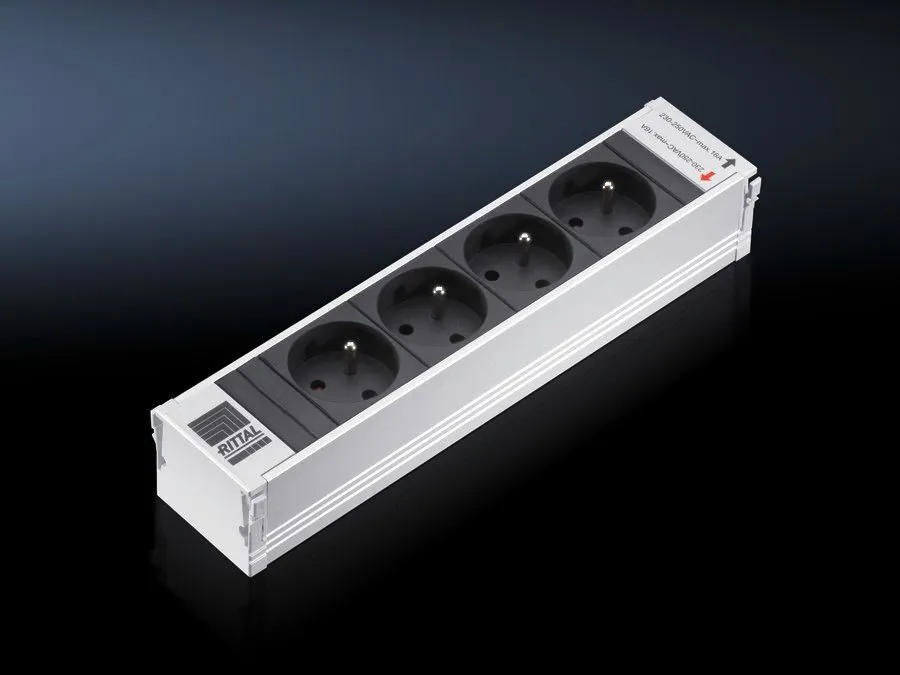

7856120 Rittal: DK PSM Plus socket module, CEE 7/5 (type E), 4-way, black, non-switchable
Article number
DK 7856.120
Design
non-switchable
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Thermal overcurrent protection
–
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
4 x F/B (type E, CEE 7/5)
Packs of
1 pc(s).
Weight/pack
0.363 kg
Customs tariff number
85369001
EAN
4028177402577
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, CEE 7/5 (type E), 4-way, black, non-switchable
Feature to business impact to application: The 4 x sockets on CEE 7/5 Type E connectors provide immediate, compatible power access for European control hardware, enabling a faster, quieter setup with fewer hard-wired junctions. This directly reduces commissioning time and wiring errors, improving first-pass acceptance in automated lines and reducing downtime during cabinet upgrades. The modular snap-in design into a vertical support rail delivers flexible reconfiguration without rewiring, supporting rapid design changes as production lines evolve. Aluminum anodised housing with PA6 GF 30 V1 socket inserts offers durable, corrosion-resistant construction suitable for harsh environments, translating into lower maintenance costs and longer service life in industrial setups. With a 250 mm length and a 16 A maximum current rating, the unit fits compact racks while supplying reliable power to active components across single- and three-phase configurations, promoting space efficiency and cleaner panel layouts. While there is no built-in thermal overcurrent protection, the system relies on upstream protective devices, ensuring compatibility with existing MCB/RCD protection schemes and simplifying panel design. This module is a proven, scalable enclosure accessory compatible with other DK PSM Plus modules, enabling modular expansion as control architectures grow, reducing total ownership cost and improving return on investment for mid- to long-term automation projects.
