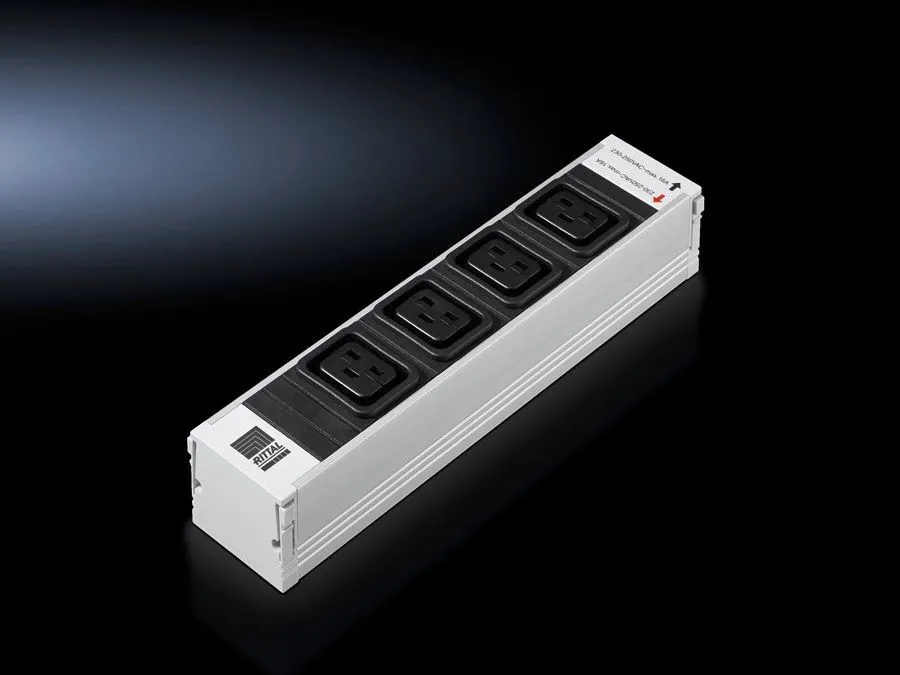

Rittal 7856230 DK PSM Plus - 4x C19 sockets, black
Part Number: 7856230
Manufacturer
Rittal
Part number
7856230
Category
Alt Part Number
DK 7856.230
Quick Summary
Rittal 7856230 DK PSM Plus socket module provides modular power distribution for rack systems. This compact solution eliminates complex wiring and enables safe, plug‑and‑play configuration even for non-electricians. For certification and compliance planning, verify CE markings and IP protection in the official datasheet. The module supports 110–230 VAC at 16 A and fits a 250 mm rack-length footprint, aligning with common industrial configurations. With modular, snap‑in installation and four IEC 320 C19 sockets, it enables scalable power distribution across automation cabinets, reducing installation time and enhancing safety.
Product Information
Extended Description
7856230 Rittal: DK PSM Plus socket module, C19, 4-way, black, non-switchable
Article number
DK 7856.230
Design
non-switchable
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Type of electrical connection
WAGO WINSTA MIDI
Phases per infeed
1~
Thermal overcurrent protection
–
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
4 x IEC 320 socket C19
Packs of
1 pc(s).
Weight/pack
0.341 kg
Customs tariff number
85369001
EAN
4028177485358
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, C19, 4-way, black, non-switchable
The DK PSM Plus socket module uses a snap‑in design that mounts directly onto a vertical support rail, dramatically reducing field wiring time and commissioning costs while maintaining robust mechanical stability. Business impact: faster rack configuration, lower total cost of ownership, and easier maintenance in automation cabinets. Application: ideal for control panels, modular power distribution, and data center racks where quick reconfiguration is required. The four IEC 320 C19 sockets deliver up to 16 A at 110–230 VAC, enabling flexible feed to active components with clean cable management and predictable electrical load. Compatibility with WAGO WINSTA MIDI connectors ensures reliable, snap‑fit connectivity and fast installation. Material choices (aluminium alloy, PA6 GF 30 V1) provide durability in harsh environments; operating range 5–45 °C and humidity 5–95 % support industrial use.
Get a Quick Quote for a Rittal 7856230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7856230?
Enquire Now
FAQs
Yes. This socket module is designed to snap into a vertical support rail commonly used in 19-inch enclosures. It occupies one module slot, provides four IEC 320 C19 sockets, and uses WAGO WINSTA MIDI connectors for quick, secure connections, all within a 250 mm length suitable for typical rack configurations.
The DK PSM Plus supports 110–230 VAC at 50/60 Hz with a maximum current of 16 A per module. It is a single‑phase infeed system designed to feed four C19 sockets, occupying one module slot over a 250 mm length. Ensure your downstream equipment and breakers align with these ratings for safe operation.
Yes. The system is modular and designed for snap‑in installation on a vertical support rail. When adding modules, maintain the total current per rail within the sum of the installed modules' ratings and ensure adequate ventilation. The DK 7856.230 uses one module slot per unit, enabling scalable configurations.
Operating range is 5 °C to 45 °C with ambient humidity from 5% to 95% non-condensing. The construction uses anodised aluminium and PA6 GF 30 V1 socket inserts, offering durability in industrial cabinets and control enclosures where temperature and humidity can vary.
You can access the official PDFs and technical catalogs through the downloads section on the product page, including EN and DE technical system catalogs. These documents provide authoritative specifications, part numbers, and compliance details to support sourcing and procurement decisions.
