Rittal DK 7856.240 PSM Plus Socket - Non-Switchable
Part Number: 7856240
Manufacturer
Rittal
Part number
7856240
Category
Alt Part Number
DK 7856.240
Quick Summary
Rittal DK 7856.240 socket module is a modular power distribution accessory designed for rack systems. It helps prevent wiring errors by enabling shock-hazard protected plug-and-play installation, even for non-electricians. Designed to meet CE safety expectations, supports robust enclosure protection within typical IP-rated cabinets, and aligns with SIL-conscious control-system architectures. By offering a compact 250 mm rail module, 16 A max current, and WAGO WINSTA MIDI connectivity, it reduces wiring work and speeds rack deployment. In practice, the plug-and-play approach minimizes training requirements and speeds commissioning on new builds. This combination delivers tangible value for engineers, procurement teams, and operations staff.
Product Information
Extended Description

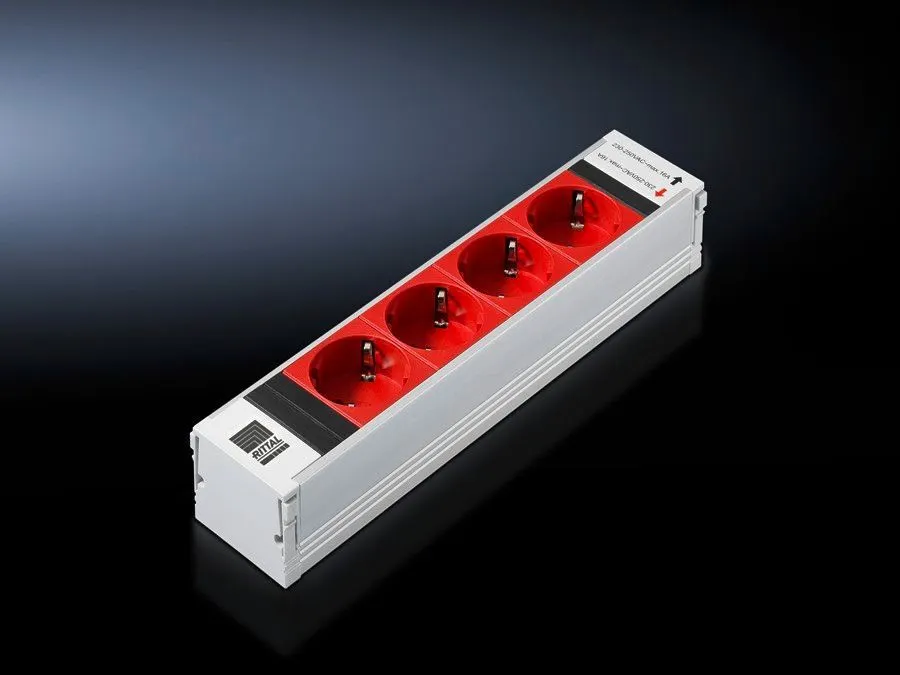

7856240 Rittal: DK PSM Plus socket module, CEE 7/3 (type F), 4-way, red, non-switchable
Article number
DK 7856.240
Design
non-switchable
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Type of electrical connection
WAGO WINSTA MIDI
Phases per infeed
1~
Thermal overcurrent protection
–
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
4 x D, earthing-pin (type F, CEE 7/4)
Packs of
1 pc(s).
Weight/pack
0.347 kg
Customs tariff number
85369001
EAN
4028177485365
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, CEE 7/3 (type F), 4-way, red, non-switchable
Feature: Modular snap-in design on a vertical support rail. Business Impact: Enables rapid reconfiguration and reduces installation time, cutting project lead times and labor costs. Application: Suitable for evolving rack power distribution in manufacturing lines where frequent layout changes occur. Feature: 4-way CEE 7/3 (type F) socket configuration with earthing pins. Business Impact: Provides versatile, safe connection points for active components while maintaining compliance with European wiring practices. Application: Ideal for control panels and cabinet interiors where standardized earthing is required. Feature: WAGO WINSTA MIDI electrical connection. Business Impact: Delivers reliable plug-in wiring with minimal risk of misalignment, improving first-pass commissioning. Application: Useful in data racks and automation cabinets requiring quick, tool-free connectivity. Feature: Material and construction (Aluminium, anodised; Socket inserts PA6 GF 30 V1). Business Impact: Delivers durability in harsh environments and resistance to corrosion, extending service life. Application: Suitable for industrial enclosures and rugged installations in production environments. Feature: Dimensions and ratings (250 mm length, 110–230 V AC, 50/60 Hz, 16 A). Business Impact: Supports standard single-phase infeed with compact footprint, reducing enclosure footprint and enabling higher port density. Application: Fits standard rack rail systems and supports modular expansion without rework. Feature: Operating range and compatibility (5 °C to 45 °C; 5–95% humidity non-condensing). Business Impact: Ensures reliable operation across typical factory ambient conditions, lowering failure rates. Application: Suitable for warehouse and workshop cabinets where environmental conditions vary. This integrated approach minimizes risk, supports compliance, and accelerates project delivery while enabling scalable, modular power distribution in industrial automation.
Get a Quick Quote for a Rittal 7856240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7856240?
Enquire Now
FAQs
Yes. The DK 7856.240 is designed to snap into a Rittal vertical support rail using a single module slot and leverages WAGO WINSTA MIDI for quick, reliable electrical connections. It features a 4-way socket arrangement (CEE 7/3 type F earthing) to suit common control panel layouts and can be installed by technicians familiar with modular rail systems. This compatibility minimizes additional adapters and reduces installation time.
Key specs include 110–230 V AC at 50/60 Hz, a maximum current of 16 A, and a 1-phase infeed. The module length is 250 mm, with four sockets (D type) and earthing pins. It operates in temperatures from 5 °C to 45 °C and can tolerate 5–95% relative humidity (non-condensing). These parameters support reliable operation in typical industrial cabinets and on production lines.
The DK 7856.240 excels in modular rack power distribution for control panels, cabinet enclosures, and automation cabinets in manufacturing, data centers, and testing laboratories. Its plug-and-play design, 4-way configuration, and compact 250 mm footprint enable rapid reconfiguration during line changeovers, upgrades, or expansions without extensive rewiring, reducing downtime and accelerating deployment across multiple workstations.
The design aligns with CE safety expectations and standard European enclosure practices, supporting safe and compliant installations within typical industrial cabinets. While the datasheet notes these common safety considerations, always verify specific certifications (CE marking, IP rating, SIL relevance) for your exact installation context and integration with other safety-critical components in the control system.
Plug-and-play assembly minimizes training time and field wiring errors, accelerating commissioning and reducing labor costs. The unit ships as a single pack (1 pc), weighs 0.347 kg, and uses a modular approach that simplifies replacement or expansion. Over the lifecycle, this translates to lower downtime, easier upgrades, and a favorable total cost of ownership for automation projects.
