Rittal 7856323 DK PSM Busbar - 6-way 32 A 3~
Part Number: 7856323
Manufacturer
Rittal
Part number
7856323
Category
Alt Part Number
DK 7856.323
Quick Summary
The DK PSM busbar provides modular 3-phase power distribution for 2000 mm rack enclosures. Repairing or expanding a live rack often forces costly downtime; this system supports retrofitting modules without powering down. The design aligns with CE safety standards, is suitable for IP-rated enclosures, and can integrate with SIL-aware safety architectures. Its modular aluminium construction and snap-fit socket modules reduce wiring and commissioning time, delivering lower total cost of ownership for industrial plants. Compatible with a 3 m connection cable and CEE connectors, it offers a scalable, maintenance-friendly path to reliable power distribution in data centers and manufacturing lines.
Product Information
Extended Description

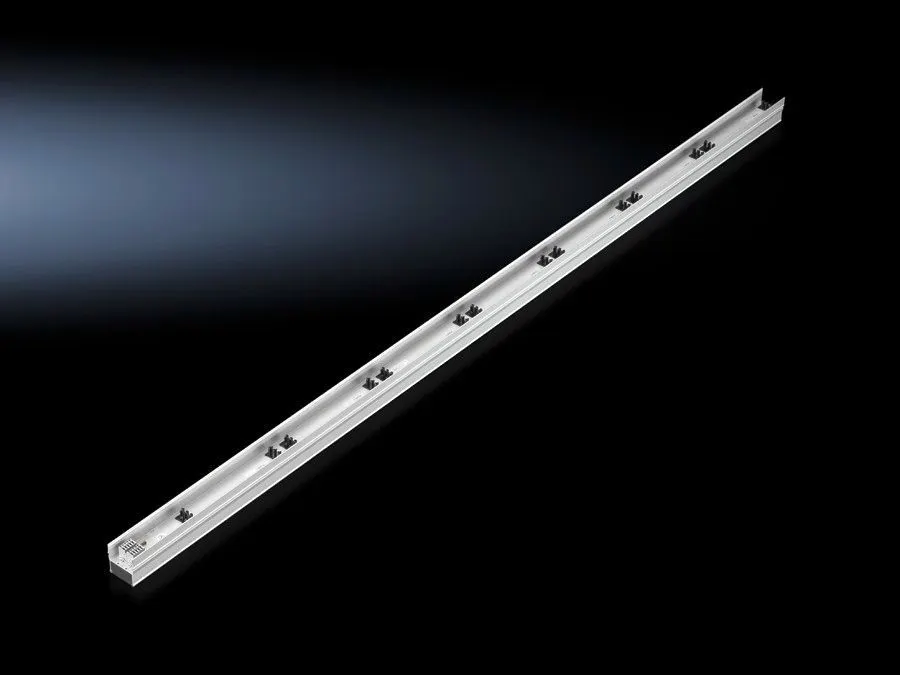

7856323 Rittal: DK PSM busbar, 6-way, 3~, 32 A, Infeed: 1, For H: 2000 mm
Article number
DK 7856.323
Design
With 3 m connection cable (connector type CEE/EN 60 309)
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. This can even be done whilst the system is operational, because the support section is shock hazard-protected.
Benefits
Modules may be retrofitted whilst operational.
Technical specifications
Each plug-in module picks off a phase on the support rail, either from infeed or from the redundant infeed, depending on the direction of connection.
Material
Aluminium section, natural anodised
Length of connection cable
3 m
Type of electrical connection
CEE
Number RJ45 ports for sensor units max
6
Qty.
1
Phases per infeed
3~
Rated current (max.)
32 A
Module slots (max.)
6
To fit
Enclosure type: TS 8 | TS IT | VX IT | Height: 2,000 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Storage temperature range
-20 °C...60 °C
Packs of
1 pc(s).
Weight/pack
6.615 kg
Customs tariff number
85369001
EAN
4028177552913
ETIM 9
EC002762
ECLASS 8.0
27371306
Product description
DK PSM busbar, 6-way, 3~, 32 A, Infeed: 1, For H: 2000 mm
Feature: Modular 6-way, 3-phase busbar with 32 A rating and infeed: 1. Business Impact: Enables flexible rack configurations and scalable power distribution without over-specifying unused slots. Application: Ideal for TS 8, TS IT, and VX IT enclosures in industrial environments. Feature: 3 m connection cable with CEE/EN 60309 interface. Business Impact: Simplifies installation and reduces field wiring errors, speeding commissioning. Application: Use during initial build or retrofits in modular racks. Feature: Shock hazard-protected vertical support rail and snap-fit socket modules. Business Impact: Enhances technician safety during maintenance and upgrades, lowering risk and downtime. Application: Safe retrofitting while equipment remains accessible. Feature: Individual plug-in modules pick off a phase from the infeed or the redundant infeed depending on connection direction. Business Impact: Improves redundancy and reliability for critical power feeds. Application: Data centers and automated production lines with low downtime requirements. Feature: Aluminium sections, natural anodised finish. Business Impact: High strength-to-weight ratio, corrosion resistance, and long service life in harsh environments. Application: Aerospace, manufacturing, and critical electrical enclosures requiring durable rails. Feature: Designed to fit enclosure types TS 8, TS IT, VX IT up to 2000 mm height. Business Impact: Reduces custom fabrication and accelerates system integration. Application: Standardized installations across mixed rack architectures.
Get a Quick Quote for a Rittal 7856323
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7856323?
Enquire Now
FAQs
Begin by aligning the 6-way DK PSM busbar along the vertical support rail inside the TS 8 enclosure. Use the 3 m CEE/EN 60309 connection cable to make the infeed connections, ensuring the infeed is set to 1. Snap-in modules can be added or moved while the system remains powered, provided proper lockout–tagout procedures are followed. Verify phase alignment and confirm the 32 A rating is not exceeded during commissioning.
The DK PSM busbar is a 6-way, 3~ system rated up to 32 A per infeed. It features a 3 m connection cable and uses a CEE connector for electrical hookup. It supports up to six module slots and is designed for infeed: 1, with the potential for redundant infeed configurations depending on connection direction. Operating range and compatibility with TS 8/TS IT/VX IT enclosures are standard.
Yes. The DK PSM busbar is explicitly designed for modular retrofitting, allowing socket modules to be snap-fitted into the support rail while the rack remains operational. This minimizes downtime and enables phased upgrades. Always follow manufacturer safety guidelines and use appropriate PPE during installation and module changes.
The system emphasizes safety with a shock hazard-protected rail design and CEE/EN 60309 connectors. It is intended for CE-compliant environments and is compatible with standard enclosure standards. Ensure installation occurs within the specified operating temperature range (5 °C to 45 °C) and humidity (5 to 95% non-condensing).
The modular DK PSM busbar reduces wiring complexity and speeds up commissioning, lowering labor costs during deployment. Live-retrofitting capability minimizes downtime, improving equipment availability. Over the long term, modular infeed upgrades simplify maintenance and spare-part planning, delivering a lower total cost of ownership in manufacturing and data-center environments.
