Rittal 7856731 19-in Mounting Frame - 10,000 N Load
Part Number: 7856731
Quick Summary
Rittal 7856731 19-in mounting frame provides adjustable depth for front and rear TS 8 levels. It addresses installers' pain points with fixed-depth frames that hinder cable routing, ventilation and future upgrades. ETIM 9 EC002620 and ECLASS 8.0 27189261 references support seamless procurement and system interoperability. With a zinc-plated sheet-steel build and a 482.6 mm width, the frame enables precise alignment and simplified mounting of TS 8 accessories. In practice, you gain faster installations, better load distribution when two frames are used, and easier adaptations for cable clamps and rails, delivering measurable business value.
Product Information
Extended Description

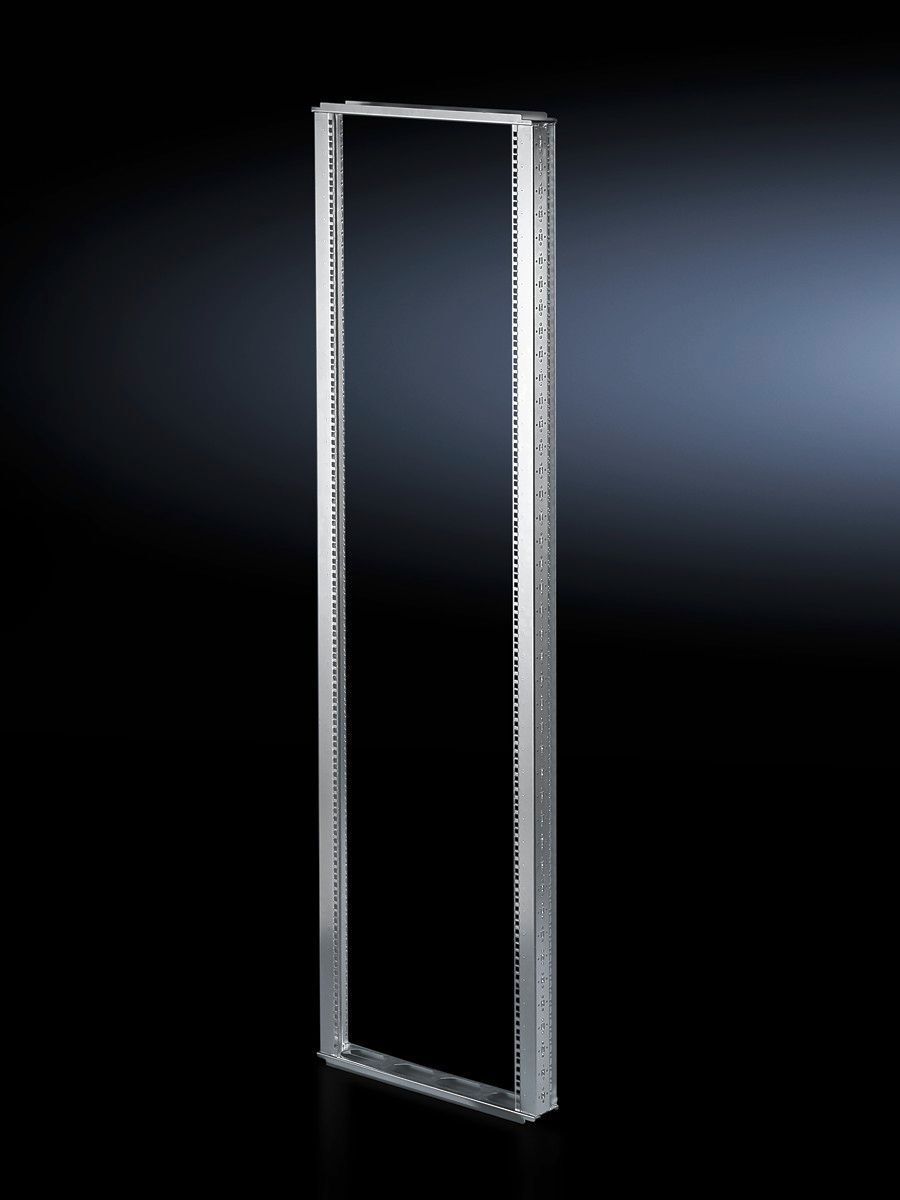

7856731 Rittal: The welded 482.6 mm (19") mounting frame may be attached with complete depth variability and is used to structure the front and rear 482.6 mm (19") level. The mounting frame has the same system punchings as the TS 8 enclosure section at the sides and rear, and therefore supports the mounting of various TS 8 system accessories such as cable clamp rails, cable shunting rings etc.
Article number
DK 7856.731
Product description
The welded 482.6 mm (19") mounting frame may be attached with complete depth variability and is used to structure the front and rear 482.6 mm (19") level. The mounting frame has the same system punchings as the TS 8 enclosure section at the sides and rear, and therefore supports the mounting of various TS 8 system accessories such as cable clamp rails, cable shunting rings etc.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Width: 482.6 mm
Units
42 U
Load capacity
Up to 10,000 N static load, with even load distribution on two 482.6 mm (19") mounting frames, fully configured.
Note
A combination of 482.6 mm (19") mounting frame plus fan mounting plate is not possible. For active ventilation, we recommend use with modular fan roof.
To fit
Enclosure type: TS 8 | CS basic enclosures | CS modular enclosures | Width: 800 mm | Height: 2,000 mm
Packs of
1 pc(s).
Weight/pack
14 kg
Customs tariff number
73269098
EAN
4028177402416
ETIM 9
EC002620
ECLASS 8.0
27189261
Feature: Depth-variable welded mounting frame for front and rear 482.6 mm (19) levels. Business Impact: Enables complete depth variability, improving cable routing, ventilation planning, and field upgrades. Application: Ideal for TS 8 enclosure systems and CS modular enclosures where precise depth control is required. The ability to tailor depth translates to reduced commissioning time and lower retrofit costs. Feature: Shared punchings with TS 8 sides and rear. Business Impact: Simplifies mounting of system accessories such as cable clamp rails and cable shunting rings, reducing installation steps and misalignment risk. Application: Ensures rapid integration of standard TS 8 components across multiple enclosure families. Feature: Material and finish (sheet steel, zinc-plated). Business Impact: Delivers durable, corrosion-resistant framing compatible with industrial environments, lowering maintenance cycles and total cost of ownership. Application: Suitable for long-term rack installations in manufacturing and data/controls spaces. Feature: Load capacity up to 10,000 N static with even distribution across two frames. Business Impact: Supports heavy controller hardware and power distribution without frame flex, enhancing safety and reliability. Application: Critical for high-amp drives and dense electrical assemblies. Feature: Dimensions and packaging (Width 482.6 mm, 42 U, 1 pack, 14 kg). Business Impact: Enables predictable fit with TS 8 and CS enclosures, streamlining procurement and logistics. Application: Helps with cabinet planning and space calculations in industrial environments. Note: A combination of the 482.6 mm mounting frame with a separate fan mounting plate is not possible; for active ventilation, use a modular fan roof. This clarifies installation scope and prevents costly rework. Supply includes assembly parts that simplify on-site assembly.
