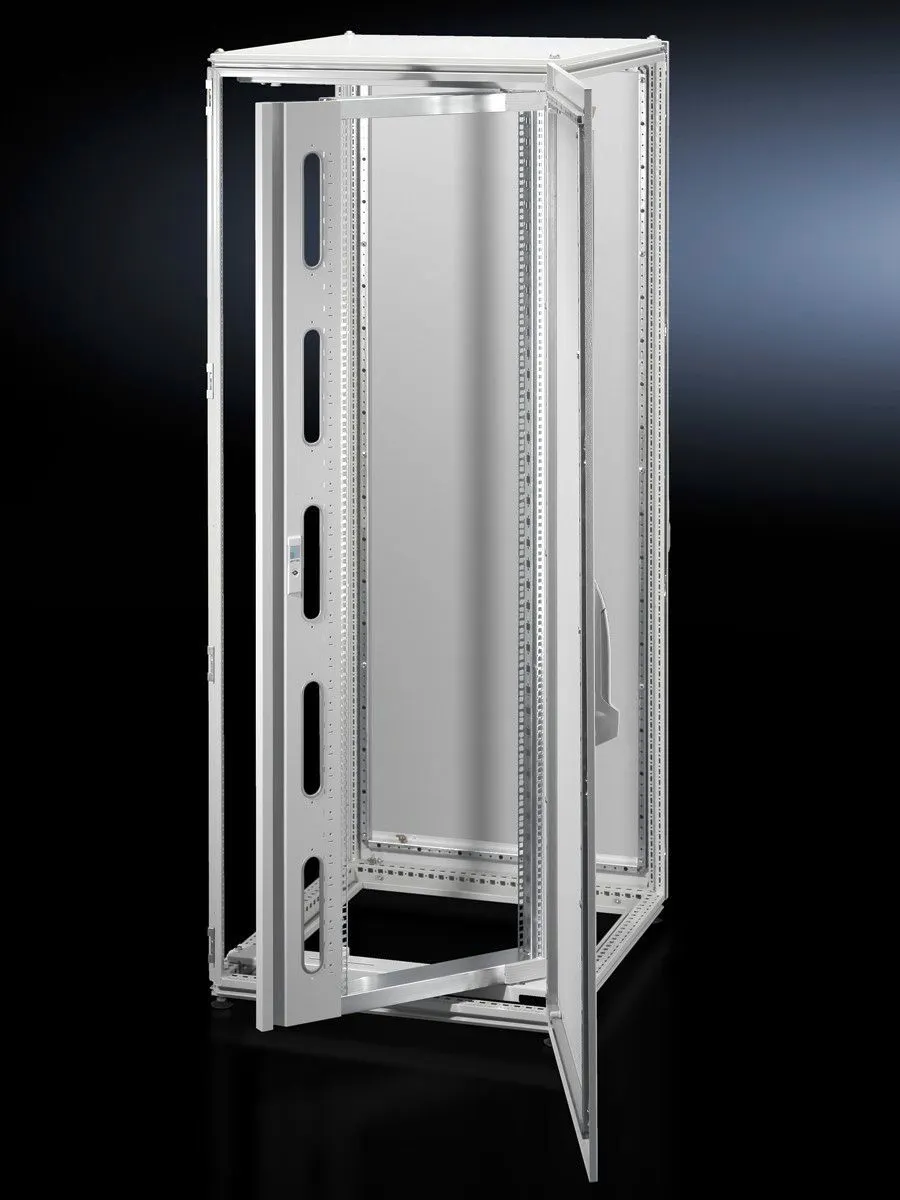

Rittal SR 7858.100 DK Swing Frame - Heavy-duty 40U
Part Number: 7858100
Quick Summary
Rittal SR 7858.100 DK Swing frame is designed to mount 482.6 mm (19”) equipment in 800 mm wide enclosures. In demanding industrial environments, engineers frequently contend with misalignment, heavy door loads, and retrofit challenges when upgrading TS enclosures. Certification details like CE, IP ratings, or SIL status are not listed in this data; verify with the supplier to meet regulatory requirements. The frame offers a 130° opening, a static load capacity of 350 kg, and a heavy‑duty side level for secure, long‑term mounting. With zinc‑plated frame and spray‑finished trim panel in RAL 7035, this enclosure accessory supports reliable, maintenance‑friendly installations that reduce downtime and improve overall enclosure performance. This aligns with enclosure accessories and 19 inch mounting workflows, delivering reliable business value for automation projects.
Product Information
Extended Description
7858100 Rittal: DK Swing frame, For WH: 800x2000 mm, 40 U, Heavy-duty version, 482.6 mm (19") level at the side, 130° hinge, For TS, SE
Article number
SR 7858.100
Design
Heavy-duty version, 482.6 mm (19”) level at the side
Product description
For mounting 482.6 mm (19˝) equipment.
Material
Sheet steel
Surface finish
Frame: Zinc-plated | Trim panel: Spray-finished
Colour
RAL 7035
Supply includes
Locking rod system with double-bit lock insert | Material for attaching | Installation kit for enclosure height 2000 mm
Opening angle
130°
Assembly instruction
Depending on the mounting situation, TS punched sections with mounting flanges 23 x 73 mm or 17 x 73 mm are required
Note
For further installation options, see "Technical details"
Load capacity (static)
350 kg
To fit
Enclosure type: TS | VX SE | Width: = 800 mm | Height: = 2,000 mm
Units
40 U
To fit enclosure type
TS
Packs of
1 pc(s).
Weight/pack
26.5 kg
Customs tariff number
94039910
EAN
4028177438880
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Swing frame, For WH: 800x2000 mm, 40 U, Heavy-duty version, 482.6 mm (19") level at the side, 130° hinge, For TS, SE
Feature: 40 U, 800x2000 mm footprint and 482.6 mm (19”) mounting level. Benefit: Provides robust, vibration‑resistant support for large, heavy automation gear, reducing misalignment and simplifying retrofits for TS enclosures. Application: Ideal for TS and VX SE systems where 800 mm width and 2 m height are standard. Feature: 130° hinge opening. Benefit: Improves technician access during installation and maintenance, shortening service windows and increasing line uptime. Application: Suitable for high‑density control panels in demanding environments. Feature: Material and finish—sheet steel with zinc‑plated frame and spray‑finished trim panel in RAL 7035. Benefit: Delivers corrosion resistance and long service life with a clean, retrofit‑friendly appearance. Application: Suitable for industrial environments requiring durable aesthetics. Feature: Supply includes locking rod system with double‑bit lock insert and an installation kit for 2000 mm enclosure height. Benefit: Fast, secure access and straightforward installation, reducing project lead times. Application: Streamlines commissioning and ongoing access for 2 m enclosure setups. Feature: Load capacity 350 kg (static). Benefit: Supports heavy equipment without compromising frame integrity, enabling safer payload management. Application: Critical for mounting power supplies, drives, and other heavy modules. Feature: To fit TS | VX SE, 800 mm width, 2,000 mm height, 40 U. Benefit: Clear compatibility reduces part mismatches and installation risk. Application: Aligns with standard Rittal enclosure configurations for scalable deployments.
Get a Quick Quote for a Rittal 7858100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7858100?
Enquire Now
FAQs
The SR 7858.100 DK Swing frame is designed to fit TS enclosure types with 800 mm width and 2000 mm height, supporting 40 U configurations and 482.6 mm (19”) equipment. It is compatible with VX SE variants as listed in the product data, simplifying standardization across multiple panels and plants.
This frame provides a static load capacity of 350 kg, suitable for heavy components in automation cabinets. It features a 130° opening angle for wide, easy access to mounted equipment, improving maintenance efficiency and reducing service time without compromising safety.
Yes. The frame is specified for enclosure types TS and VX SE, with a width of 800 mm and height of 2000 mm, configured as 40 U. This makes it a straightforward upgrade path for large TS/VX SE installations needing robust 19" mounting support.
The data provided does not list CE, IP, or SIL certifications. Confirm regulatory compliance with the supplier or refer to official documentation to meet your local standards and industry requirements before deployment.
By enabling secure mounting, easy 130° access, and a robust zinc-plated frame with a spray-finished trim panel, the SR 7858.100 reduces maintenance downtime and extends service intervals. Its compatibility with TS VX SE enclosures and the included installation kit streamline commissioning, delivering lower total cost of ownership over the system lifecycle.
