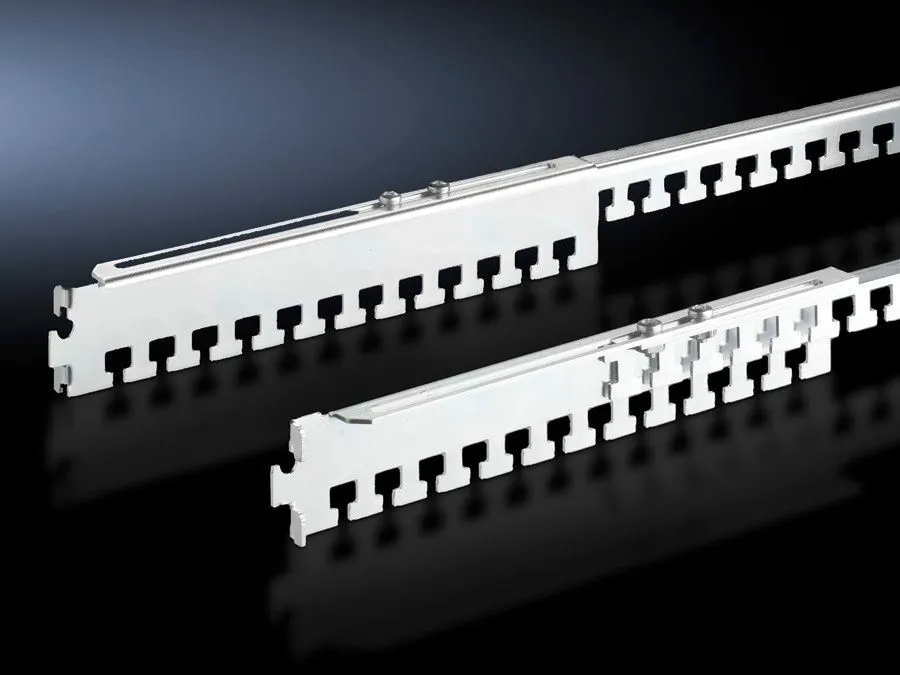

Rittal 7858160 Cable clamp rail - depth-variable 325–575 mm
Part Number: 7858160
Quick Summary
Cable clamp rail from Rittal 7858160 is a depth-variable solution for TS frames and 482.6 mm (19 in) mounting frames to streamline cable routing. Too often, fixed-length rails force crews to improvise between frame levels, risking cable strain and extended install times. The product data supports standard classifications like ETIM 9 EC000322 and ECLASS 8.0 27400604, helping procurement and system catalogs ensure consistent evaluation. This accessory aligns with enclosure accessories strategies and delivers business value through faster assembly, improved cable management, and predictable maintenance, while supporting scalable IT and electrical installations. With zinc-plated sheet steel and a depth range of 325-575 mm, the DK rail accepts cable ties or Velcro for strain relief. It is designed to mount between TS IT mounting angles, simplifying adjustments during retrofits and new builds alike.
Product Information
Extended Description
7858160 Rittal: DK Cable clamp rail, depth-variable, distance between levels: 325-575 mm
Article number
DK 7858.160
Product description
For use with TS and between the mounting angles of the TS IT in the enclosure depth.
Applications
For cable routing on the enclosure frame and for strain relief of the routed cables. The cables can be attached to the cable clamp rails with cable ties or velcro fasteners.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Distance between levels
325 ‐ 575 mm
Note
Mounting dimensions + 152 mm = distance between levels 482.6 mm (19")
Packs of
4 pc(s).
Weight/pack
1.104 kg
Customs tariff number
73269098
EAN
4028177436107
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
DK Cable clamp rail, depth-variable, distance between levels: 325-575 mm
Feature: Depth-variable cable clamp rail enables flexible adaptation to the attachment distance between 482.6 mm (19 in) mounting frames. Business impact: Reduces waste and rework by accommodating non-standard distances, speeding installation and enabling cleaner cable paths. Application: Ideal for IT enclosure depth customization in TS frame configurations. Feature: Distance between levels 325-575 mm provides a wide operating window for multi-level cable routing. Business impact: Improves plan accuracy and enables scalable layouts for evolving infrastructure. Application: Fits between TS mounting levels to host cables with reliable strain relief. Feature: Sheet steel, zinc-plated finish offers robust mechanical protection. Business impact: Delivers durable performance in harsh environments with corrosion resistance, lowering maintenance costs. Application: Suitable for interior cabinet environments and long service life. Feature: Supply includes assembly parts and packs of 4 with weight per pack 1.104 kg. Business impact: Facilitates quick distribution and reduces total project logistics, saving time on site. Application: Streamlined procurement and installation across multiple enclosures. Feature: For cable routing on the enclosure frame and for strain relief using cable ties or Velcro. Business impact: Improves cable organization, reduces movement under vibration, and enhances reliability. Application: Connects to TS IT mounting frames for secure, tidy installations. Feature: Compatibility with TS mounting frames and standard 19-inch rack ecosystems. Business impact: Simplifies retrofits and future upgrades by preserving standard mounting interfaces. Application: Ideal for data center, industrial IT, and panel-building environments.
Get a Quick Quote for a Rittal 7858160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7858160?
Enquire Now
FAQs
The 7858160 DK Cable clamp rail is designed for TS mounting frames and 482.6 mm (19 in) frame configurations. Its depth-variable capability supports distances between levels from 325 to 575 mm, enabling precise alignment with enclosure frames and ensuring orderly cable routing and secure strain relief.
The rail is manufactured from sheet steel and finished with zinc plating, providing robust mechanical strength and corrosion resistance suitable for enclosure interiors. This construction supports long service life in challenging environments while maintaining a clean, professional appearance inside cabinets.
Each package contains four DK 7858.160 rails with assembly parts, weighing 1.104 kg per pack. This packaging arrangement supports efficient shipment and on-site deployment, letting technicians equip multiple levels or enclosures quickly, with parts ready for mounting between TS IT angles.
Cables can be secured to the rail using cable ties or Velcro fasteners, providing reliable strain relief and flexible cable management. This approach keeps routed cables organized, reduces movement, and simplifies future changes or upgrades without compromising cable integrity.
Yes. The rail is designed to fit TS mounting frames and the 482.6 mm (19 in) mounting standard, ensuring compatibility with typical enclosure ecosystems. Its depth-variable range supports future reconfigurations or expansions, helping maintain orderly cable routing while minimizing retrofit complexity.
