Rittal DK 7858.200 Roof-to-Base Connector - TS 8
Part Number: 7858200
Quick Summary
Rittal DK 7858.200 Roof-to-Base Connector enables direct roof-to-base mounting for TS 8 enclosure systems. Designed for 2000 mm high frames, it ensures precise alignment during assembly and reduces installation time in constrained machine rooms. Installers benefit from integral punchings for cable routing aids and hammer-head attachments for nylon loops and cable ties. In terms of compliance, verify CE marking where required and reference ETIM 9 EC000322 and ECLASS 8.0 27400604 in the official docs. This accessory strengthens enclosure stiffness, streamlines wiring, and supports scalable TS 8 compatibility in industrial automation environments. This combination is especially valuable in modular plant layouts where future expansion is anticipated.
Product Information
Extended Description

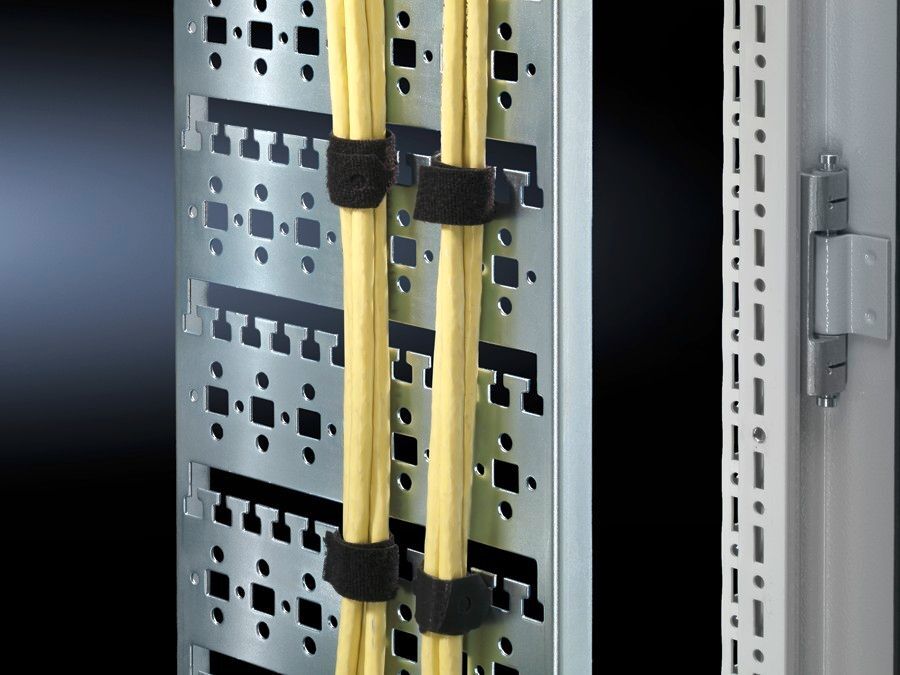

7858200 Rittal: For direct attachment between the roof and base frame of a 2000 mm high frame structure. Installation position optionally on the inner or outer mounting level. Route width 200 mm. With integral system punchings for the attachment of various cable routing aids and hammer-head attachment for nylon loops and cable ties.
Article number
DK 7858.200
Product description
For direct attachment between the roof and base frame of a 2000 mm high frame structure. Installation position optionally on the inner or outer mounting level. Route width 200 mm. With integral system punchings for the attachment of various cable routing aids and hammer-head attachment for nylon loops and cable ties.
Material
Sheet steel, zinc-plated
Supply includes
Assembly parts
Dimensions
Width: 200 mm
To fit
Enclosure type: TS 8 | Height: 2,000 mm
Packs of
1 pc(s).
Weight/pack
4.595 kg
Customs tariff number
73269098
EAN
4028177597938
ETIM 9
EC000322
ECLASS 8.0
27400604
Direct attachment between the roof and base frame delivers rigid structural integrity, reducing misalignment and rework during enclosure assembly. The outcome is faster commissioning of TS 8 systems and safer, more repeatable installations in manufacturing lines and control rooms. Practical application includes mounting on the inner or outer level of a 2000 mm high frame, with a defined 200 mm route width for organized cable routing. Integral system punchings provide attachment points for cable routing aids and hammer-head attachments for nylon loops and cable ties, streamlining conduit and wire management and cutting install time. The sheet steel, zinc-plated construction offers corrosion resistance in factory environments, aligning with industry standards and reducing maintenance needs. Supplied as a complete pack with assembly parts, it simplifies procurement and on-site setup. Compatibility with TS 8 frames and 2000 mm heights enhances project planning, while the 200 mm route width accommodates common cable routing accessories. A 4.595 kg pack weight aids logistics, and the single-pack configuration supports predictable inventory control. This approach improves installation velocity, design flexibility, and long-term reliability in industrial automation environments.
Get a Quick Quote for a Rittal 7858200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7858200?
Enquire Now
FAQs
The connector mounts to both roof and base frame sections of a TS 8 enclosure, with options for inner or outer mounting levels. Use the supplied assembly parts to secure the connector, then route cables through the 200 mm wide channel. Integral punchings support cable routing aids and nylon loop/cable tie attachments for tidy wiring.
The DK 7858.200 is made from sheet steel and zinc-plated for corrosion resistance. It supports a 200 mm route width and fits 2000 mm high TS 8 frames. Each pack includes assembly parts and weighs 4.595 kg, with a single pack per order.
Yes. The product is specified for direct attachment on 2000 mm high TS 8 frame structures and provides a 200 mm route width for organized cable routing. It enables inner or outer mounting positions, improving both rigidity and cable management in demanding automation settings.
The data references ETIM 9 EC000322 and ECLASS 8.0 27400604, with EAN 4028177597938 for identification. For regulatory compliance such as CE, verify markings on the actual product and documentation at the point of purchase to meet site-specific requirements.
By providing direct roof-to-base attachment and integral punchings for routing aids, the connector reduces misalignment, speeds assembly, and simplifies cable management. The included assembly parts support quick installation, predictable inventory, and lower maintenance needs through improved accessibility and modular TS 8 compatibility.
