Rittal 7859081 PDU - Modular Power Distribution for IP20
Part Number: 7859081
Manufacturer
Rittal
Part number
7859081
Category
Alt Part Number
DK 7859.081
Quick Summary
Rittal 7859081 PDU provides modular power distribution for space-saving applications in 800 mm wide IT racks. Engineers often struggle with limited rear space and tangled cabling in zero-U installations, causing airflow and maintenance challenges. This solution aligns with IP20 protection and industry classifications like ETIM EC002762 and ECLASS 27371306, helping with procurement and compliance. By offering a 1695 mm length with six module slots and a 3 m feed cable, it delivers scalable, reliable power with minimal installation effort. The modular PDU supports zero-U space integration, enabling efficient cable management and cleaner rack layouts for data centers and network rooms.
Product Information
Extended Description

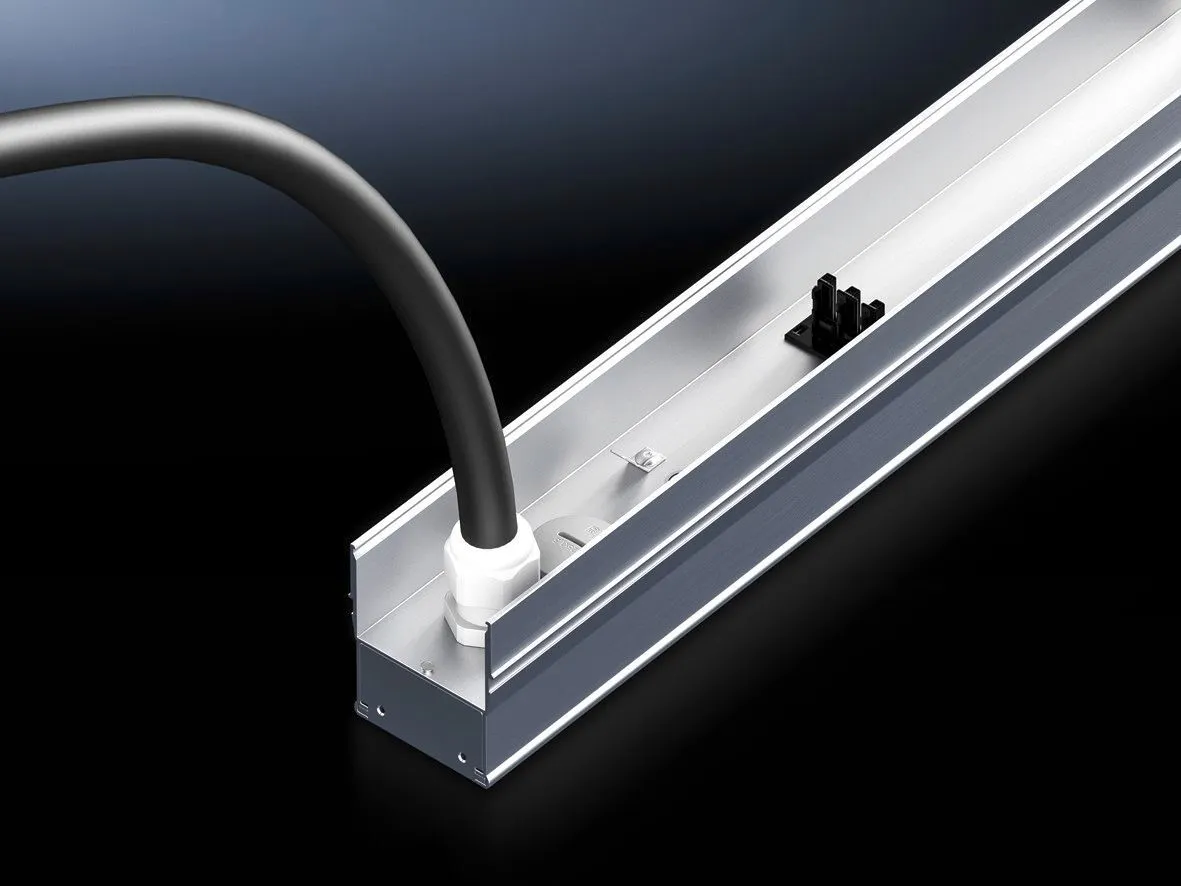

7859081 Rittal: DK modular PDU, PSM busbar, modular power distribution for vertical installation, in the Zero-U-Space for 800 mm wide IT racks, 3~, 16 A, length 1695 mm, module slots: 6, infeeds: 1, connection cable length: 3 m, CEE connector, for enclosure height 2000 mm, aluminium section, natural anodised
Article number
DK 7859.081
Product description
Modular PDU for space-saving integration in the zero-U space between side panel and 482.6 mm (19") mounting level in 800 mm wide IT racks.
Material
Aluminium section, natural anodised
Length
1,695 mm
Length of connection cable
3 m
Type of electrical connection
fixed/CEE
Qty.
1
Phases per infeed
3~
Rated current (max.)
16 A
Module slots (max.)
6
IP protection category to IEC 60 529
IP 20
Dimensions
Length: 1,695 mm
To fit
Enclosure type: VX IT | Height: ≥ 2,000 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
10...90 %
Packs of
1 pc(s).
Weight/pack
4.3 kg
Customs tariff number
85369001
EAN
4028177956636
ETIM 9
EC002762
ECLASS 8.0
27371306
Product description
DK modular PDU, PSM busbar, modular power distribution for vertical installation, in the Zero-U-Space for 800 mm wide IT racks, 3~, 16 A, length 1695 mm, module slots: 6, infeeds: 1, connection cable length: 3 m, CEE connector, for enclosure height 2000 mm, aluminium section, natural anodised
Feature: Zero-U space modular PDU fits between side panel and mounting level in 800 mm wide IT racks. Business impact: frees valuable rack depth for airflow and easier service access, reducing cooling costs and maintenance time. Application: VX IT enclosure installations in data centers and telecom rooms. Feature: 3-phase support with 16 A max current and six module slots. Business impact: scalable power distribution for mixed loads and future expansion, lowering total cost of ownership. Application: server clusters and high-density compute nodes. Feature: One infeeds connection with a 3 m feed cable using fixed/CEE connection. Business impact: simplifies on-site wiring and reduces installation time, speeding deployment. Application: new rack builds and retrofits in existing facilities. Feature: Aluminium section, natural anodised, 1,695 mm length, IP 20 rating. Business impact: durable, corrosion-resistant hardware that withstands IT environment conditions, ensuring long service life. Application: rack infrastructure exposed to varying temperatures and humidity. Feature: Compatible with enclosure height ≥ 2,000 mm and standard VX IT racks. Business impact: guarantees fit and reliable performance across common IT cabinet configurations, supporting standardized deployments. Application: scalable data center modernization projects with consistent component families.
Get a Quick Quote for a Rittal 7859081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7859081?
Enquire Now
FAQs
Begin by confirming the enclosure height is at least 2000 mm. Position the PDU in the zero-U space between the side panel and the 482.6 mm mounting level. Connect using the fixed/CEE 3 m feed cable, ensure the IP20 protection is maintained, and secure the unit so all module slots align with the enclosure’s backplane. This reduces wiring complexity and accelerates commissioning.
Its design uses a PSM busbar in an aluminium, natural anodised section and a length of 1,695 mm, enabling vertical installation without occupying interior rack depth. The zero-U configuration minimizes clutter, improves airflow, and supports scalable power distribution with up to six module slots and a single infeeds connection.
The DK 7859.081 operates on 3~, with a maximum current of 16 A and supports one infeeds input. It features six module slots, a 3 m connection cable, and a fixed/CEE connection. The unit is rated IP20 and designed for operating temperatures from 5 °C to 45 °C with ambient humidity of 10–90% non-condensing.
Yes. The product is specified for enclosure height up to 2000 mm and is intended for 800 mm wide IT racks, matching standard VX IT configurations. Its modular PDU design and 1695 mm length ensure a precise fit, simplifying installation and standardizing power distribution across cabinets.
The modular PDU reduces wiring complexity, enabling faster deployment and easier future reconfigurations. Its robust aluminium construction and IP20 protection minimize corrosion and environmental exposure. With six module slots and a 3 m feed, you gain scalable capacity without replacing the entire assembly, delivering lower lifecycle costs and improved reliability.
