Rittal 7859090 Modular PDU - 32 A, IP20, Zero-U
Part Number: 7859090
Manufacturer
Rittal
Part number
7859090
Category
Alt Part Number
DK 7859.090
Quick Summary

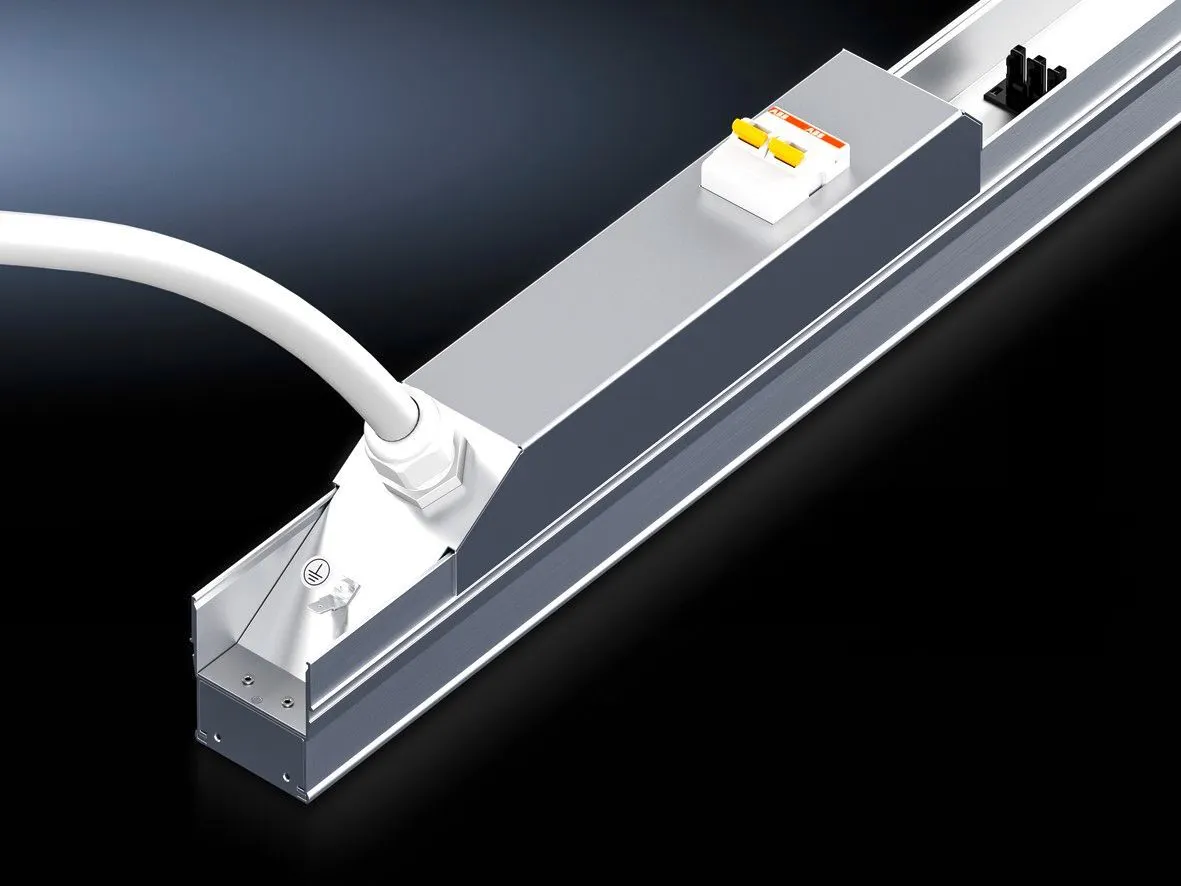

Rittal 7859090 Modular PDU enables compact power distribution for vertical mounting in zero-U spaces within 800 mm wide IT racks. In modern data centers, crowded rack spaces and cable clutter challenge airflow and maintenance efficiency; this module targets those pain points by maximizing available space without compromising access. It features IP20 protection and aligns with ETIM EC002762 and ECLASS 27371306 standards, supporting procurement across markets. With aluminium, natural anodised construction and a 3 m connection lead, it delivers durability and flexible installation. Designed for VX IT enclosures, the solution offers scalable power distribution and easier servicing, driving lower downtime and total cost of ownership while preserving robust reliability.
Product Information
Extended Description
7859090 Rittal: DK modular PDU, PSM busbar, modular power distribution for vertical installation, in the Zero-U-Space for 800 mm wide IT racks, 1~, 32 A, length 1695 mm, module slots: 5, infeeds: 1, connection cable length: 3 m, CEE connector, for enclosure height 2000 mm, aluminium section, natural anodised
Article number
DK 7859.090
Product description
Modular PDU for space-saving integration in the zero-U space between side panel and 482.6 mm (19") mounting level in 800 mm wide IT racks.
Material
Aluminium section, natural anodised
Length
1,695 mm
Length of connection cable
3 m
Type of electrical connection
fixed/CEE
Qty.
1
Phases per infeed
1~
Rated current (max.)
32 A
Module slots (max.)
5
IP protection category to IEC 60 529
IP 20
Dimensions
Length: 1,695 mm
To fit
Enclosure type: VX IT | Height: ≥ 2,000 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
10...90 %
Packs of
1 pc(s).
Weight/pack
5.2 kg
Customs tariff number
85369001
EAN
4028177956643
ETIM 9
EC002762
ECLASS 8.0
27371306
Product description
DK modular PDU, PSM busbar, modular power distribution for vertical installation, in the Zero-U-Space for 800 mm wide IT racks, 1~, 32 A, length 1695 mm, module slots: 5, infeeds: 1, connection cable length: 3 m, CEE connector, for enclosure height 2000 mm, aluminium section, natural anodised
Zero-U space integration enables 800 mm wide IT racks to host modular power distribution without sacrificing cabinet depth or airflow, increasing rack density and reducing wiring complexity in critical data centers. The DK 7859.090 delivers 1~, 32 A rated capacity with a fixed/CEE connection and 5 module slots, providing scalable distribution tailored to evolving workloads while minimizing hardware footprints and installation time. A 3 m connection cable simplifies installation across enclosure faces, lowering in-rack cabling and related heat generation. Aluminium section with natural anodised finish offers a corrosion-resistant, durable build suitable for demanding environments, improving long-term reliability and reducing maintenance intervals. IP20 protection supports indoor IT environments, while the product’s compatibility with VX IT enclosures up to 2000 mm height ensures a consistent, plug-and-play upgrade path. The modular PDU also benefits from precise ETIM and ECLASS classifications, streamlining technical data transfer and procurement workflows. In short, this solution reduces capital and operating costs by delivering scalable, space-efficient power distribution with straightforward servicing and compliance alignment.
Get a Quick Quote for a Rittal 7859090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7859090?
Enquire Now
FAQs
The DK 7859.090 is designed for vertical installation in the zero-U space between the side panel and the 482.6 mm (19-inch) mounting level in 800 mm wide IT racks. It uses a fixed/CEE connection, 1 infeed, and a 3 m lead, with up to five module slots. Ensure the enclosure height is at least 2000 mm and that the internal environment meets 5 °C to 45 °C and 10–90% non-condensing humidity requirements. This setup minimizes cable clutter and simplifies future upgrades because the module slots can be populated as needs evolve.
The PDU is a single-phase 1~, rated up to 32 A, with one infeed, five module slots, and a 1,695 mm length. It uses a fixed/CEE electrical connection and includes a 3 m connection cable. The design supports modular power distribution in 800 mm wide IT racks and is intended for environments that require reliable, scalable distribution with straightforward wiring.
Yes. The PDU is specifically engineered for zero-U installation, occupying space between the side panel and the 19-inch mounting level in 800 mm wide racks. Its 1,695 mm length and five module slots provide scalable distribution without sacrificing cabinet depth, while the 3 m lead and CEE connector simplify installation in tight spaces and reduce the need for additional cabling runs.
The unit uses aluminium with natural anodising for durability and carries an IP20 protection rating suitable for indoor IT environments. It aligns with ETIM 9 EC002762 and ECLASS 8.0 27371306, aiding data-driven procurement and data sheet consistency. While CE marking is a common expectation for electrical equipment, this product’s documented standards focus on protection, material, and classification to streamline compliance in regional markets.
The modular PDU reduces rack footprint by leveraging zero-U space, enabling higher rack density and easier cable management. Its 32 A capacity supports standard IT loads while five module slots allow scalable distribution. Durable aluminium construction lowers maintenance and replacement costs, and its compatibility with VX IT enclosures simplifies lifecycle planning and future expansions, delivering a lower total cost of ownership.
