Rittal 7859120 DK PSM Plus Socket Module - LED
Part Number: 7859120
Manufacturer
Rittal
Part number
7859120
Category
Alt Part Number
DK 7859.120
Quick Summary
Rittal 7859120 DK PSM Plus Socket Module enables modular power distribution in rack-mounted enclosures for IT and industrial equipment. Installing power modules manually can expose non-electricians to shock risk or slow configuration; this plug-and-play design improves safety and speed. The data shows compatibility with ETIM 9 EC000330 and ECLASS 8.0 27142604, and supports a robust 110–230 V AC, 16 A infeed for reliable operation. By combining a slim 250 mm rail-length with six IEC 320 sockets and LED feedback, you gain scalable, visible power distribution for racks. This approach simplifies maintenance and future upgrades, reducing total cost of ownership while aligning with industry best practices for modular power distribution in control cabinets.
Product Information
Extended Description

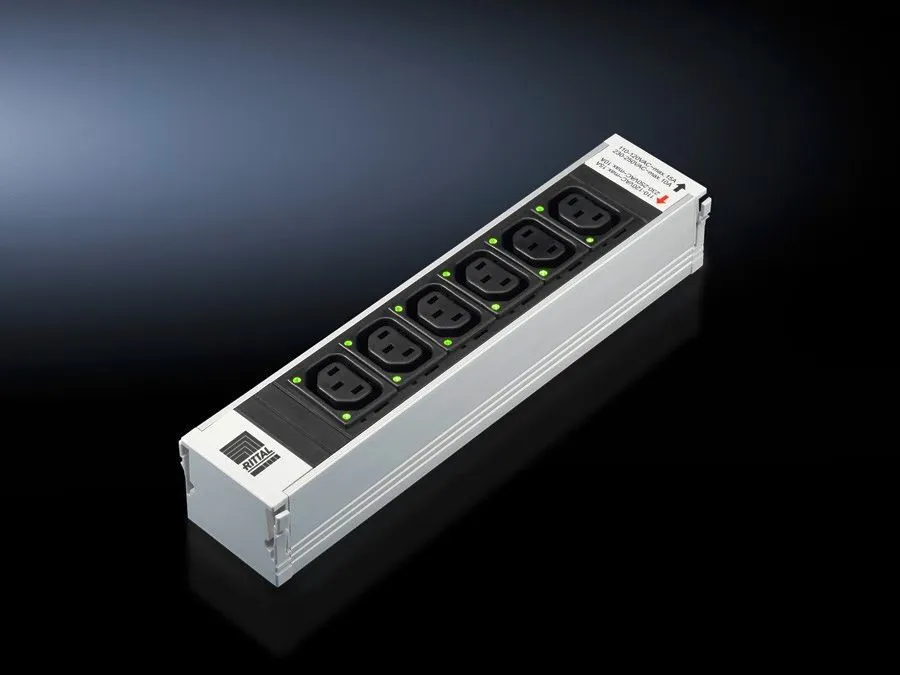

7859120 Rittal: DK PSM Plus socket module, C13, 6-way, black, nicht schaltbar, mit LED
Article number
DK 7859.120
Design
non-switchable, with LED display
Product description
The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system.
Material
Section: Aluminium, anodised | Socket inserts: Plastic (PA6 GF 30 V1)
Length
250 mm
Type of electrical connection
WAGO WINSTA MIDI
Phases per infeed
1~
Thermal overcurrent protection
–
Rated operating voltage
110 V – 230 V AC, 50/60 Hz
Rated current (max.)
16 A
Required number of module slots
1
Dimensions
Length: 250 mm
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Sockets
6 x IEC 320 socket C13
Packs of
1 pc(s).
Weight/pack
0.375 kg
Customs tariff number
85369001
EAN
4028177597990
ETIM 9
EC000330
ECLASS 8.0
27142604
Product description
DK PSM Plus socket module, C13, 6-way, black, nicht schaltbar, mit LED
Feature: Modular DK PSM Plus architecture enables snap-fit assembly on a vertical support rail. Business Impact: accelerates rack configuration and reduces installation errors, improving project timelines and system reliability. Application: IT racks and industrial cabinets where quick configuration is critical. Feature: Six IEC 320 C13 sockets arranged in a 6-way module. Business Impact: supports common active components from servers to peripherals, delivering consolidated power with minimized cabling. Application: data centers, automation panels, and laboratory enclosures. Feature: WAGO WINSTA MIDI electrical connection standard. Business Impact: ensures robust, field-proven connectivity with easy maintenance and replacement. Application: modular power rails in mixed vendor ecosystems. Feature: Non-switchable design with integrated LED indicator. Business Impact: provides continuous status feedback and safety without accidental inrush switching. Application: monitoring power presence in live systems and dashboards. Feature: Aluminium anodised rail with PA6 GF 30 V1 socket inserts. Business Impact: delivers rigidity and chemical resistance in harsh environments while keeping weight manageable. Application: rugged industrial enclosures and control panels. Feature: Rated voltage 110–230 V AC, 50/60 Hz, and 16 A rating. Business Impact: aligns with common European and global power standards, ensuring compatibility with a wide range of equipment. Application: rack infeed for IT and automation equipment. Feature: Length of 250 mm and one required module slot. Business Impact: compact footprint enables dense rack configurations and modular expansion. Application: space-constrained control cabinets and compact IT enclosures. Insight: The combination of plug-and-play safety, standard socket interfaces, and modular rail integration reflects current industry trends toward quick-change, scalable power distribution in automation environments.
Get a Quick Quote for a Rittal 7859120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7859120?
Enquire Now
FAQs
This module is designed for a vertical support rail and snap-fit installation. Insert the DK 7859.120 into a single module slot on the rail, connect the 110–230 VAC supply via the WAGO WINSTA MIDI connection, and verify the LED indicates proper power presence. The process is straightforward for trained technicians or operators following the enclosure’s safety procedures.
The module provides six IEC 320 C13 sockets fed from a single infeed with a rated operating voltage of 110–230 V AC at 50/60 Hz and a maximum current of 16 A. It uses a WAGO WINSTA MIDI connection, measures 250 mm in length, and is designed for 1 infeed per module.
Yes. With six C13 outlets, LED status, and a compact 250 mm form factor, it fits dense IT racks and automation enclosures. The WAGO MIDI connectivity supports reliable integration, while the non-switchable design reduces inadvertent power interruptions during critical operations.
The product data includes ETIM 9 EC000330 and ECLASS 8.0 27142604 classifications for data standardization. Specific regulatory certifications such as CE marking are not explicitly listed in the provided data, so verify regional compliance requirements for your installation and market.
Modular plug-and-play power distribution reduces installation time, lowers wiring errors, and simplifies future upgrades. LED indicators provide quick status checks, while the robust aluminium anodised rail and PA6 GF 30 V1 socket inserts offer long-term durability in industrial environments, contributing to lower maintenance costs and faster serviceability.
