Rittal 7888311 Cable Cage - ETIM EC000012 for TX CableNet
Part Number: 7888311
Quick Summary
Cable cage for TX CableNet is a cable management solution that stabilizes large bundles inside bayed enclosure systems, enabling clean, scalable wiring layouts. Engineers frequently face tangled cables, routing complexities, and maintenance headaches that drive longer commissioning times and increase fault risk in harsh industrial environments. This solution aligns with ETIM EC000012 and ECLASS 27400703 classifications, supporting consistent procurement data, interoperability across systems, and reliable supplier communication. Designed for TX CableNet compatibility, it simplifies installation with clip components and direct screw-fastening to 482.6 mm (19") mounting angles, delivering faster commissioning and ongoing efficiency.
Product Information
Extended Description

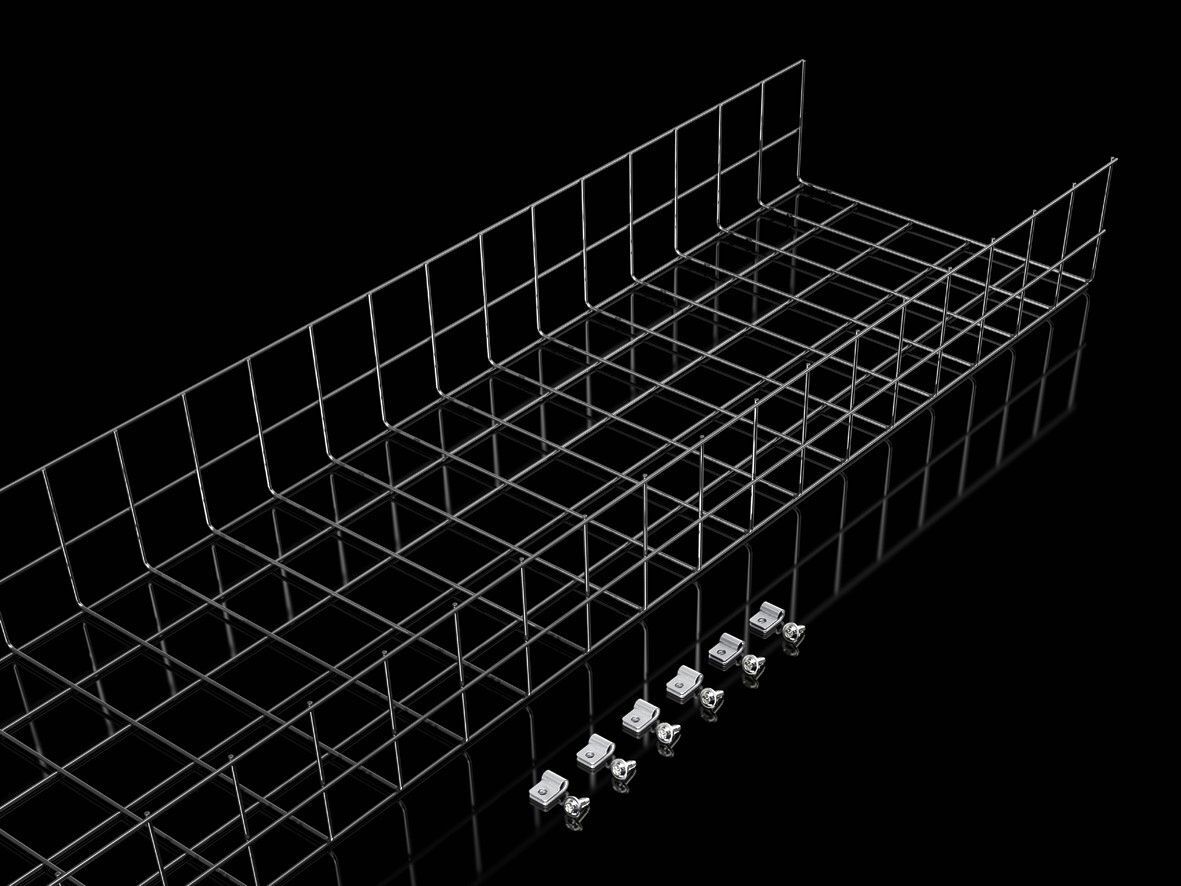

7888311 Rittal: Cable cage for TX CableNet, WHD: 300x2200x120 mm, RAL 9005, standard 50x50 mm wire mesh shaped into a C-cross-section, for organizing large quantities of cables in a bayed enclosure suite. Attached using clip components.
Article number
TX 7888.311
Product description
For organised laying of large quantities of cables in a baying arrangement.
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
Assembly parts
Installation options
Direct screw-fastening to the 482.6 mm (19") mounting angles
Dimensions
Width: 300 mm | Depth: 120 mm
To fit
Enclosure type: TX CableNet | Width: = 800 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
5.5 kg
PCF per pack (cradle-to-gate)
21 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177964235
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
Cable cage for TX CableNet, WHD: 300x2200x120 mm, RAL 9005, standard 50x50 mm wire mesh shaped into a C-cross-section, for organizing large quantities of cables in a bayed enclosure suite. Attached using clip components.
The cage's wire-mesh framework uses a standard 50x50 mm mesh formed into a C-cross-section, paired with spray-finished sheet steel in RAL 9005. This combination delivers high cable density while maintaining accessibility for routing, inspection, and future reconfiguration. In TX CableNet bayed enclosures, this design accelerates orderly cable deployment, reduces tangling, and supports scalable growth in busy data centers and automation cabinets. Dimensions WHD 300x2200x120 mm align with typical TX CableNet bays and enclosure heights, reducing the need for on-site cutting or adjustments. The precise fit supports predictable planning, minimizes unused space, and improves airflow and cooling by avoiding loose bundles. Operators save time during installation and commissioning because components align with existing mounting patterns. Mounting is straightforward with direct screw-fastening to 482.6 mm (19") mounting angles, and clip components are included to simplify assembly. This streamlines installation in retrofit projects and new builds alike, reducing hardware scavenging and project-to-project variance. The system also supports modular expansion, enabling future reconfigurations without replacing the entire enclosure. Weight per pack is 5.5 kg, with packs of 1 pc, enabling safe handling by technicians and efficient logistics. The light yet durable construction lowers shipping costs and minimizes the risk of damage in transit. Documentation and assembly parts are included to reduce unexpected delays on the shop floor or site. From a sustainability perspective, the PCF per pack is 21 kg CO2 equivalent (Cat B), offering a tangible metric for green procurement. This data supports carbon footprint reporting and aligns with internal and customer sustainability targets. For procurement teams, the product weighs into life-cycle cost analyses and long-term maintenance budgeting.
Get a Quick Quote for a Rittal 7888311
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888311?
Enquire Now
FAQs
The Cage supports direct screw-fastening to 482.6 mm (19") mounting angles and includes clip components for straightforward assembly. This enables quick retrofit or new-build installation with minimal hardware changes, reducing on-site complexity and overall project time while maintaining robust enclosure integrity.
Key dimensions are Width 300 mm, Depth 120 mm, with WHD 300x2200x120 mm. Each pack weighs 5.5 kg, and packaging is 1 piece per pack. The precise sizing aligns with TX CableNet bays, reducing field modification needs and enabling predictable planning.
Yes. It is designed for TX CableNet systems and bayed enclosure suites, featuring a C-cross-section mesh suitable for organizing large cable quantities while preserving airflow. The assembly is simplified by included clip components and standardized mounting interfaces, ensuring scalable and repeatable installations.
The product reports a PCF of 21 kg CO2 eq per pack (Cat B) cradle-to-gate, supporting sustainability reporting and eco-conscious procurement. This metric helps buyers compare lifecycle impacts and justify procurement within green targets and supplier sustainability programs.
Common objections include long install times and misalignment with existing cabinets. This cage addresses them with direct 19" mounting angle compatibility, included assembly parts, a durable spray-finished sheet steel body, and a standardized 50x50 mm mesh that streamlines routing, reduces rework, and supports future upgrades without enclosure replacement.
