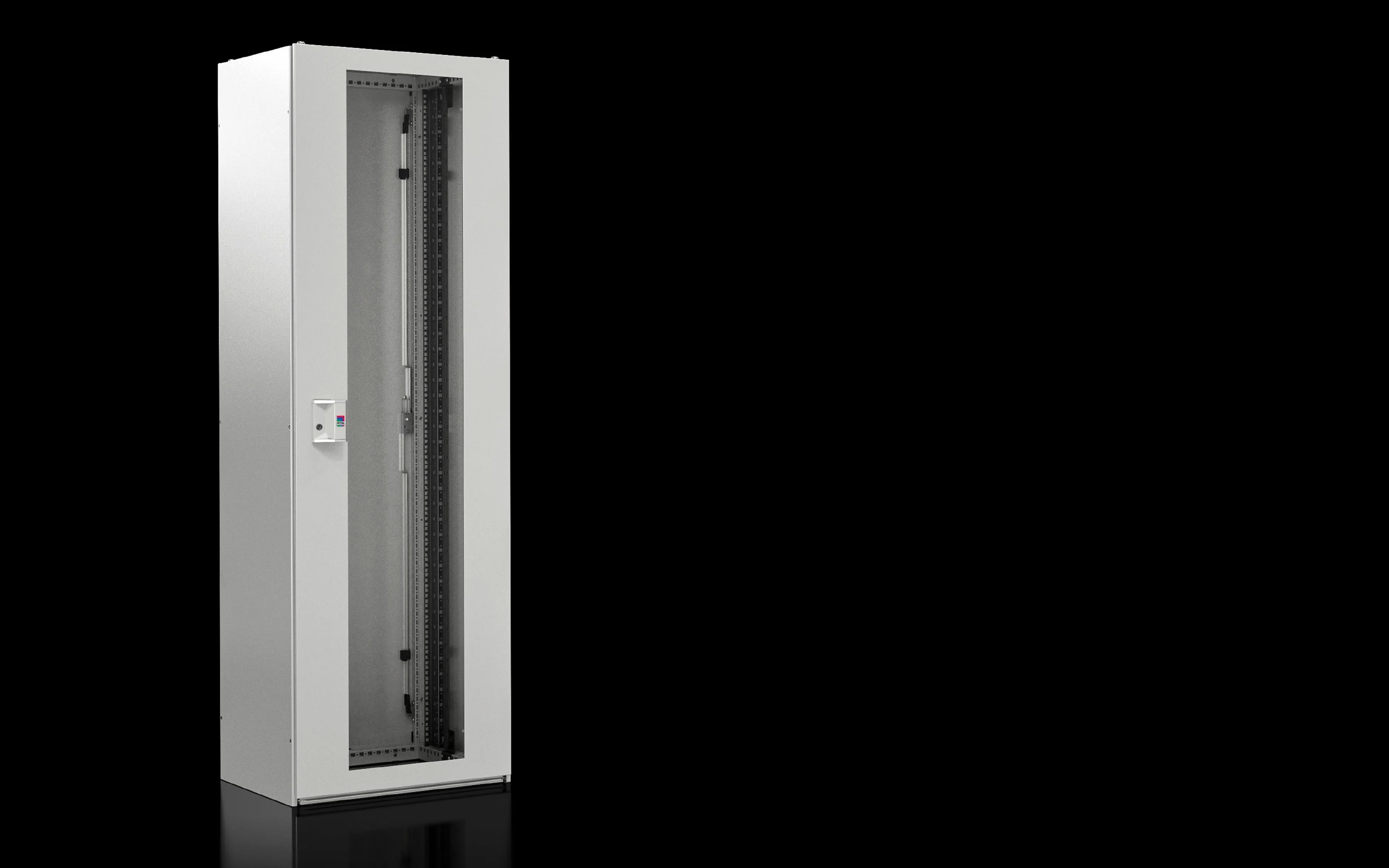

Rittal TX 7888.626 CableNet – 42U IP20 Glazed Door
Part Number: 7888626
Quick Summary
TX CableNet IT rack from Rittal provides compact, high-density network cabinet solutions for space-constrained data centers. In cramped rooms with low ceilings or restricted access, conventional racks waste depth and complicate cabling. Key ratings include IP 20 enclosure protection and a 42U layout that aligns with common IEC rack standards, while the glazed front door enables quick visual checks without door removal. The enclosure ships with side panels, roof plate, and 19-inch mounting angles, ready for immediate interior installation. By combining smart depth utilization with modular accessories, it delivers faster deployment, reduces cable mess, and supports scalable IT infrastructure for growing facilities. This results in lower total cost of ownership and improved site reliability.
Product Information
Extended Description
7888626 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 600x2000x600 mm, RAL 7035
Article number
TX 7888.626
Design
New version | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted.No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the rear, prepared for fan mounting.
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 600 mm
Units
42 U
Distance between levels as delivered
345 mm
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994713
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 600x2000x600 mm, RAL 7035
Feature: Compact 600x2000x600 mm footprint and 42U capacity enable high rack density in limited spaces. Business Impact: Maximizes floor density and reduces real estate costs while preserving ample space for cabling. Application: Data centers, telecom rooms, and lab racks where space is at a premium. Feature: Glazed front door and rear door with side panels included. Business Impact: Improves serviceability and enables quick visual checks without door removal, shortening maintenance windows. Application: Remote sites and service environments requiring fast status reviews. Feature: Roof plate with concealed rear cable entry and prepared for fan mounting. Business Impact: Cleaner cable routing and improved cooling efficiency, supporting higher component density. Application: Cable-intensive deployments and equipment refreshes. Feature: 19" mounting angles and standard IEC rack compatibility. Business Impact: Plug-and-play integration with existing IT infrastructure, reducing installation time and risk. Application: Mixed equipment installs with servers, switches, and storage. Feature: IP 20 protection, robust sheet steel construction, and powder-coated finish in RAL 7035. Business Impact: Safe, durable operation in general environments with reduced maintenance and longer service life. Application: Office data rooms, manufacturing support spaces, and restricted access areas. Feature: Load capacity of up to 5000 N and 500 kg static. Business Impact: Supports heavier components and dense deployments without compromise. Application: Multi-rack configurations in growing facilities. Industry note: The TX CableNet series is designed to minimize unused rack space, improving energy efficiency and reducing overall total cost of ownership through better space utilization and easier upgrades.
Get a Quick Quote for a Rittal 7888626
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888626?
Enquire Now
FAQs
The TX CableNet ships with 482.6 mm (19") mounting angles and supports standard 19-inch equipment. Its 600 mm width, 2000 mm height, and 600 mm depth provide a classic 42U enclosure, and it includes side panels, a glazed front door, a rear door, and a roof plate for convenient interior installation and quick integration with existing IT gear.
The enclosure provides a static load capacity of 500 kg and a load capacity up to 5000 N, with IP 20 protection. These specs support heavy equipment deployments while maintaining safe operation in typical indoor environments.
Yes. Its space-saving footprint, glazed door for easy visibility, and modular accessories make it ideal for tight data centers, server rooms with low ceilings, and restricted-access environments where cable management and access are critical.
Included are the glazed front door, rear door, side panels, 482.6 mm mounting angles, roof plate with concealed rear cable entry, and mounting options ready for fan modules. The design supports straightforward installation and scalable upgrades without needing major modifications.
The design minimizes unused rack space, improves cable management, and simplifies future upgrades, reducing maintenance time and energy waste. Its robust build and ready-to-integrate accessories help lower total cost of ownership while enabling scalable IT infrastructure.
