Rittal TX 7888.628 IT CableNet Rack – Glazed Front IP20
Part Number: 7888628
Quick Summary
Rittal TX CableNet IT rack is designed to maximize space in tight data centers and network rooms while keeping equipment accessible. In many environments, standard racks waste usable space and complicate cabling in rooms with low ceilings or restricted clearance. This enclosure offers IP 20 protection under IEC 60529 and a CE-compliant design, with ETIM 9 EC002499 and ECLASS 8.0 27180207 data alignment for seamless procurement. The 600 x 2000 x 800 mm footprint supports 42U of equipment with a glazed door and roof plate that simplify installation. For businesses, this translates into more usable rack capacity, reduced footprint, and faster cabling and service workflows.
Product Information
Extended Description

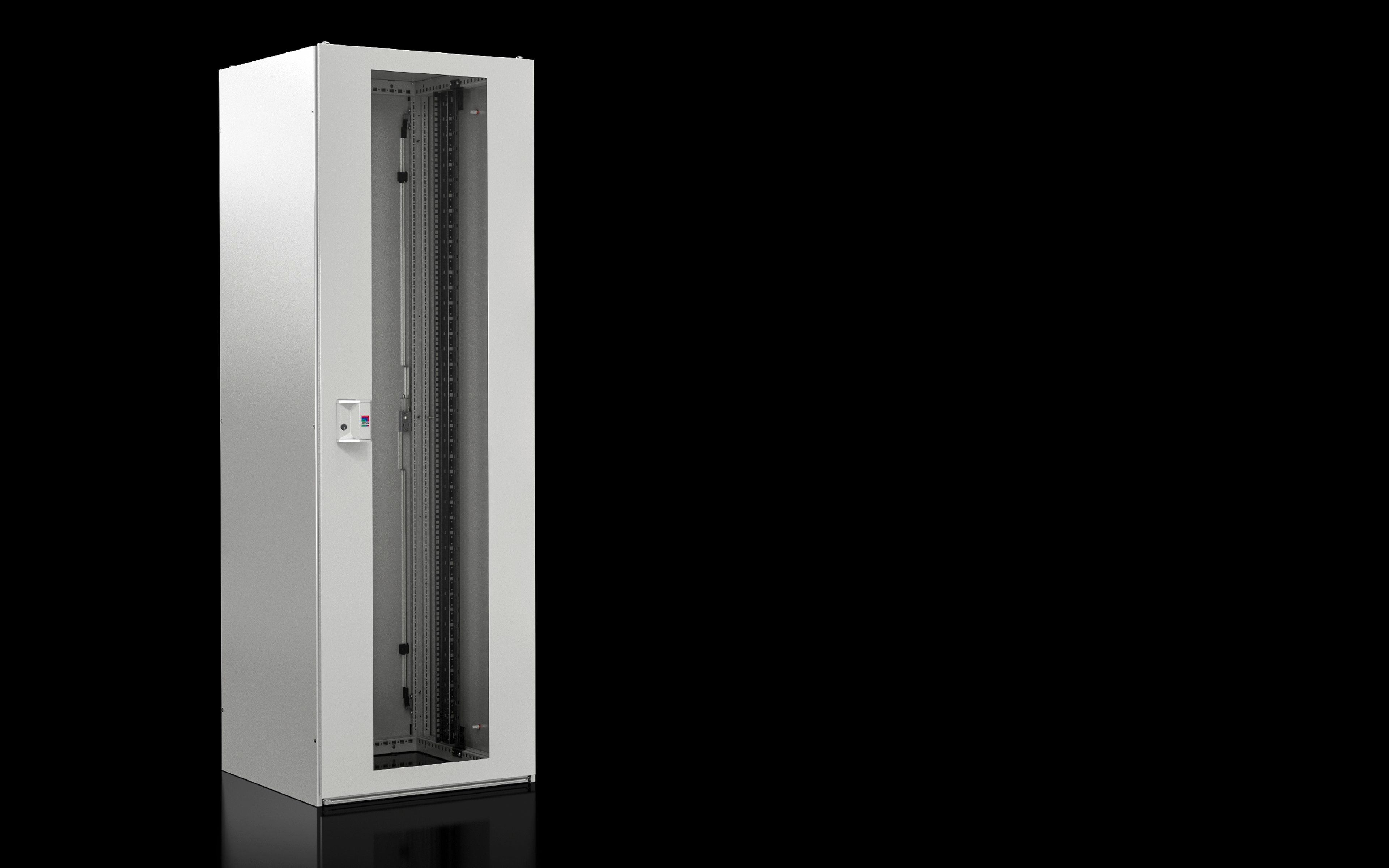

7888628 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 600x2000x800 mm, RAL 7035
Article number
TX 7888.628
Design
New version | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted.No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the rear, prepared for fan mounting.
Dimensions
Width:Â 600 mm | Height:Â 2,000 mm | Depth:Â 800 mm
Units
42 U
Distance between levels as delivered
445 mm
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994706
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 600x2000x800 mm, RAL 7035
Feature: The TX CableNet measures 600 x 2000 x 800 mm and provides 42U of mounting space with standard 19" rails. Business Impact: This configuration increases usable rack density while preserving service access for cabling, patch panels, and active equipment. Application: Ideal for data centers, network closets, and telecom rooms with limited depth or height. Feature: Glazed front door, rear sheet steel door, side panels, roof plate, and concealed rear cable entry. Business Impact: Improves visibility for monitoring, enhances protection against dust, and streamlines cable routing with a roof plate that integrates fan mounting options. Application: Perfect for high-density equipment where maintenance access matters. Feature: Load capacity of 5000 N (500 kg static). Business Impact: Supports heavy switches, servers, and dense I/O without compromising enclosure integrity. Application: Suitable for mixed IT racks and telecom deploys in constrained spaces. Feature: IP 20 protection and robust sheet steel construction. Business Impact: Provides reliable enclosure protection in indoor environments, reducing ingress risks and improving uptime. Application: Indoor data rooms and controlled environments where equipment reliability is critical. Feature: Compatibility with 482.6 mm (19") mounting angles and provided mounting hardware. Business Impact: Facilitates straightforward integration of standard IT equipment with minimal additional parts. Application: Ready-to-install in new or retrofit setups. Feature: Ready-to-install roof plate with rear cable entry, side panels, and ventilation-ready concept. Business Impact: Accelerates installation timelines and enables subsequent fan module integration when needed. Application: Space-constrained installations where cabling and airflow are performance-driven priorities.
Get a Quick Quote for a Rittal 7888628
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888628?
Enquire Now
FAQs
TX CableNet uses standard 19" mounting rails (482.6 mm width) and ships with 19" mounting angles, making it compatible with most standard IT equipment. The 42U capacity supports a wide range of servers, switches, and patch panels in space-constrained rooms.
The enclosure supports a static load of 500 kg (5000 N) and features a glazed front door with a rear sheet steel door. The design provides robust protection while allowing quick visual access to mounted equipment.
Yes. With dimensions of 600 x 2000 x 800 mm and a 42U layout, it minimizes wasted space and enables efficient cabling in rooms with low ceilings or restricted clearance, while maintaining ample room for service access and airflow.
The unit provides IP 20 protection per IEC 60529, suitable for indoor IT environments. The design also aligns with CE-compliant practices and industry data standards (ETIM 9 EC002499, ECLASS 8.0 27180207) to facilitate procurement and asset management.
Rear cable entry and roof-plate integration simplify cabling and future fan-module expansion, reducing maintenance time. The space-efficient design increases rack density, lowers floor space costs, and improves overall data-center efficiency, contributing to faster ROI through shorter installation times and easier servicing.
