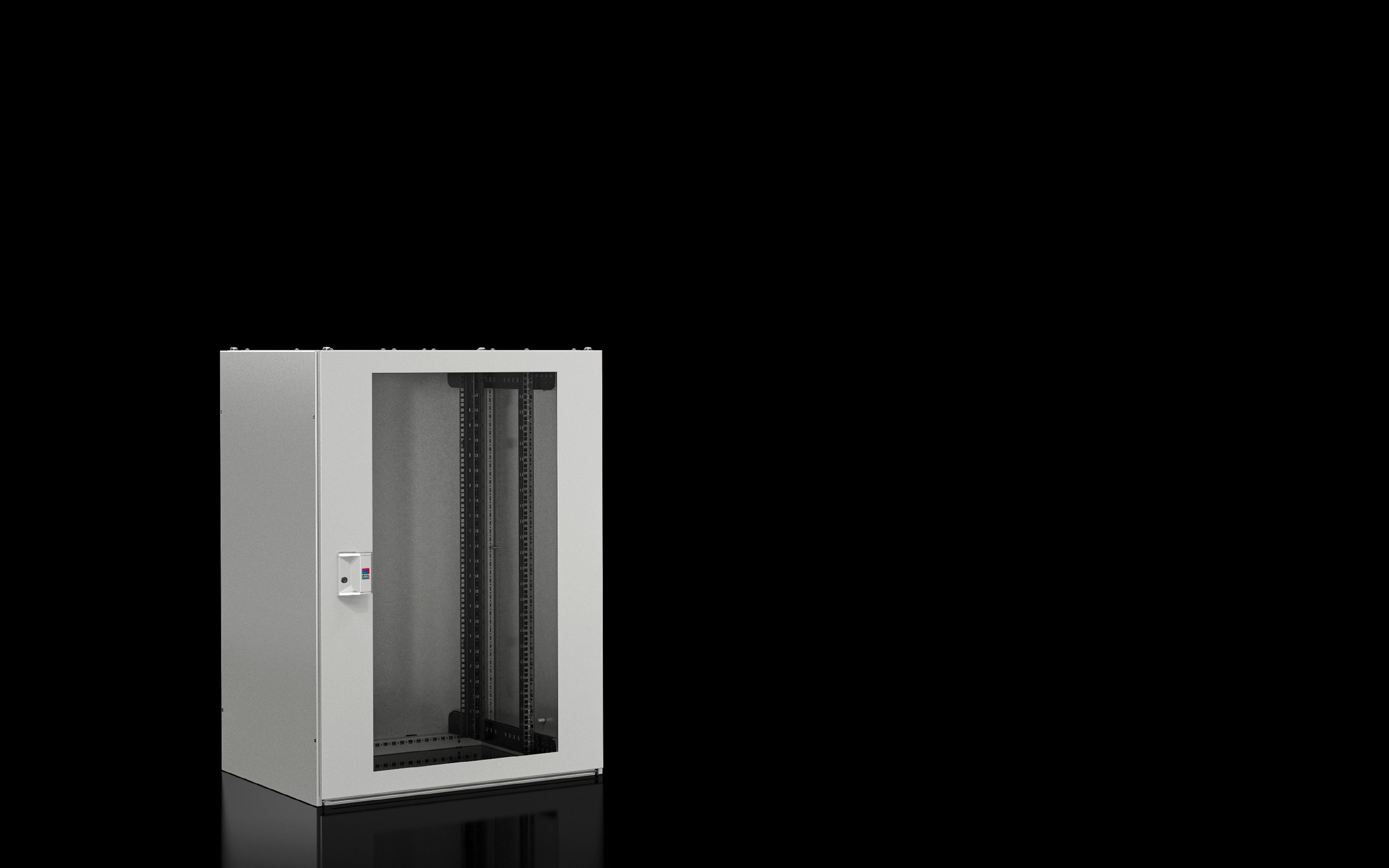

Rittal TX 7888.718 IT Rack - IP20, 24U, 800x1200x800
Part Number: 7888718
Quick Summary
The Rittal TX CableNet IT rack optimizes space and accessibility in tight IT rooms. This compact enclosure is designed to maximize usable depth and reduce wasted rack space, helping you fit more components without expanding footprint. For operators facing restricted ceilings and awkward cabling routes, the dismantlable design, glazed front door, and rear access simplify installation and maintenance. The unit meets IP 20 protection and aligns with ETIM EC002499 and ECLASS 27180207 standards, supporting component compatibility and regulatory expectations. In practice, it delivers a scalable 24U solution with a robust rack frame, ready-made for rapid deployment and easy future expansion, while maintaining a professional finish in RAL 7035.
Product Information
Extended Description
7888718 Rittal: TX CableNet, with glazed door, rack can be dismantled, with roof plate, side panels, 19" mounting angles, WxHxD: 800x1200x800 mm, RAL 7035
Article number
TX 7888.718
Design
may be dismantled | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted.No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, one-piece, screw-fastened, with cable entry at the rear, prepared for fan mounting
Dimensions
Width: 800 mm | Height: 1,200 mm | Depth: 800 mm
Units
24 U
Distance between levels as delivered
445 mm
482.6 mm (19") attachment
may be dismantled
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177997561
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, rack can be dismantled, with roof plate, side panels, 19" mounting angles, WxHxD: 800x1200x800 mm, RAL 7035
Space-efficient design delivers maximum usable depth and prevents energy losses from unused rack space, enabling higher equipment density in restricted rooms and reducing overall footprint. This translates to lower facility costs and faster time-to-value when expanding IT infrastructure in small data centers or edge deployments. The dismantlable enclosure with glazed front door improves visibility for quick assessment, simplifies cabling during installation, and speeds routine maintenance, reducing downtime and labor hours. A roof plate with rear-entry cabling and optional fan mounting supports flexible cooling strategies, enabling targeted airflow to dense equipment racks in variable environments. Standard 19" mounting angles (482.6 mm) ensure broad compatibility with existing equipment, enabling plug-and-play upgrades without bespoke rails. A robust 500 kg static load capacity and IP20 protection provide durable, office-to-industrial performance for servers, switches, and telecom gear. Factory finish in RAL 7035 delivers a professional appearance and consistent environmental resistance in manufacturing or data-center spaces.
Get a Quick Quote for a Rittal 7888718
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888718?
Enquire Now
FAQs
TX 7888.718 uses standard 482.6 mm (19 inch) mounting rails and comes with 482.6 mm mounting angles, side panels, and a roof plate. This enables straightforward drop-in integration with common 19" gear and ensures a familiar mounting workflow for IT teams while preserving cable management and accessibility.
The rack supports a static load capacity of 500 kg and a maximum load of 5000 N, making it suitable for dense server and switch configurations. It carries IP20 protection, offering solid enclosure protection in controlled environments and compliant performance in typical data-center rooms.
Yes. With dimensions of 800x1200x800 mm and 24U, the TX CableNet is tailored for tight spaces, low-ceiling rooms, and restricted cabling paths. The glazed door improves monitoring access, while the roof plate and fan-mount readiness support scalable cooling for edge deployments and compact data closets.
The enclosure aligns with ETIM EC002499 (and EC002499 for ETIM 9/8) and ECLASS 27180207, reflecting standard categorization and interoperability in industrial IT enclosures. It also meets IEC/IP20 protection requirements, ensuring compatibility with common IT components in European environments.
Benefits include faster deployment due to the glazed door and ready-to-install roof plate, easier cabling with rear access, and reduced downtime from improved accessibility. Space efficiency translates to higher gear density per footprint, lowering floor space costs and delivering a faster return on investment for growing IT or telecom deployments.
