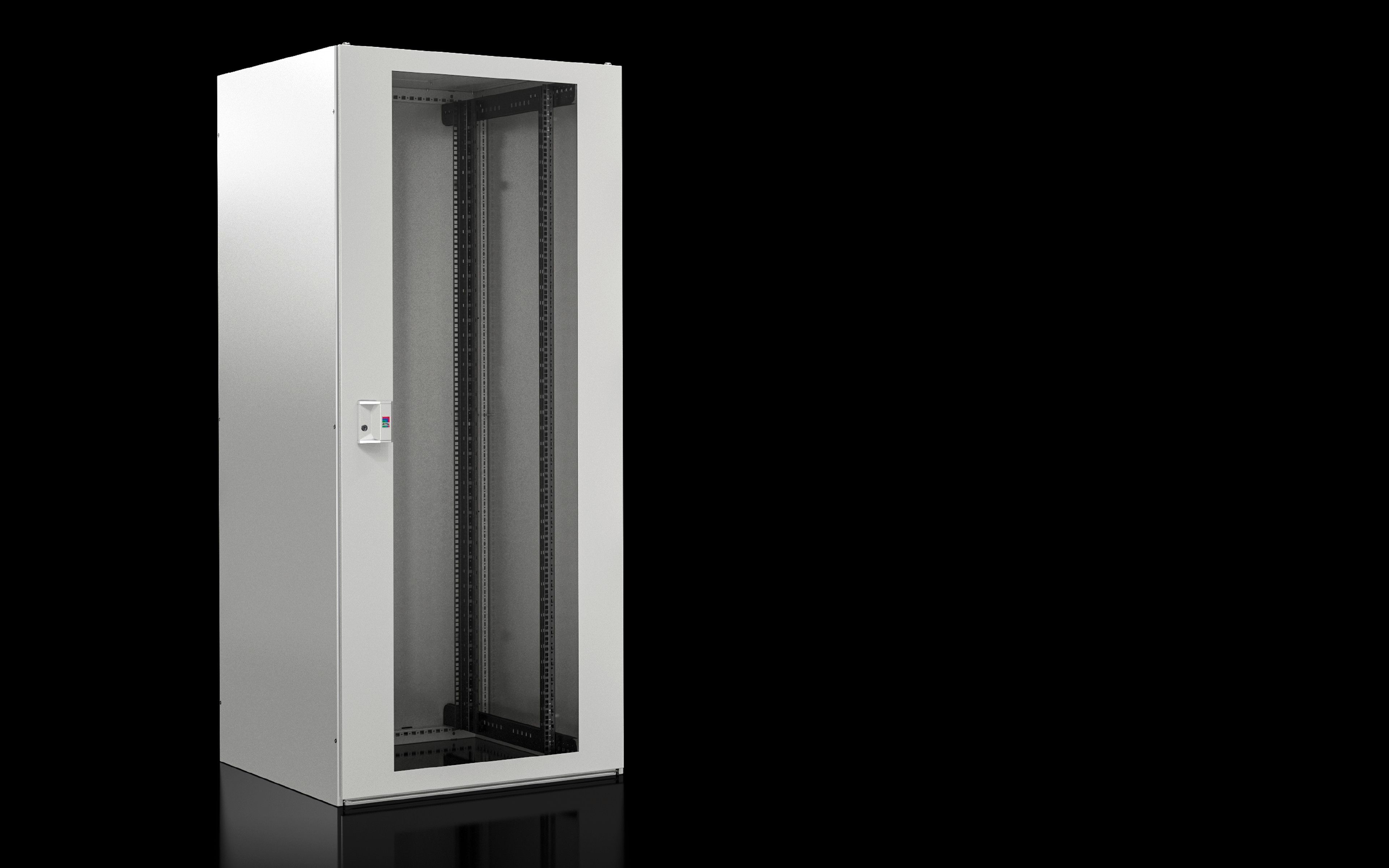

Rittal TX 7888.721 IT CableNet Rack - IP20 Enclosure
Part Number: 7888721
Quick Summary
TX CableNet IT rack provides space-efficient, flexible network enclosure for compact data centers and edge IT deployments. When standard racks waste depth and airflow is constrained, cabling becomes time-consuming and error-prone. This rugged solution delivers IP 20 protection and aligns with industry standards such as ETIM EC002499 and ECLASS 27180207, ensuring easy sourcing and interoperability. The glazed front door offers visibility into cable management while the rack remains dismantlable for quick installation or maintenance. With roof plate, side panels, 19" mounting angles, and a capacity of 42U, it supports organized, scalable IT infrastructure in tight rooms while enabling future fan mounting to improve cooling.
Product Information
Extended Description
7888721 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, rack can be dismantled, WxHxD: 800x2000x1000 mm, RAL 7035
Article number
TX 7888.721
Design
may be dismantled | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted. No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, one-piece, screw-fastened, with cable entry at the rear, prepared for fan mounting
Dimensions
Width:Â 800 mm | Height:Â 2,000 mm | Depth:Â 1,000 mm
Units
42 U
Distance between levels as delivered
645 mm
482.6 mm (19") attachment
may be dismantled
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177997530
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, rack can be dismantled, WxHxD: 800x2000x1000 mm, RAL 7035
Space-efficient footprint and 42U mounting capacity maximize usable IT space in data centers with limited floor area. By fitting into an 800x2000x1000 mm enclosure, this rack reduces footprint while preserving full 19" mounting and front-to-back cable routing. In practice, it translates to higher density deployments and easier cabling management in edge environments. Dismantlable design with glazed front door and side panels eases installation and maintenance, reducing downtime and enabling quick access for upgrades or repairs. Roof plate with rear cable entry and prepared fan mounting support improves airflow and cooling, enabling more reliable operation and potential energy savings. Durable sheet steel construction with powder-coated finish (RAL 7035) offers long-term corrosion resistance and easy cleaning in factory or data-center environments. Load capacity of 5000 N (static) and 500 kg ensures robust support for heterogeneous equipment while 19" mounting angles simplify retrofits. This enclosure integrates smoothly with standard IT equipment and supports future expansions without reengineering.
Get a Quick Quote for a Rittal 7888721
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888721?
Enquire Now
FAQs
TX CableNet ships with standard 482.6 mm (19”) mounting angles and 19” mounting compatibility, allowing seamless integration with common data-center and network cabinet configurations. The dismantlable design and side panels simplify retrofits and reconfiguration, reducing installation time and enabling straightforward upgrades without removing existing equipment.
The cabinet measures 800 mm wide, 2000 mm high, and 1000 mm deep, providing 42 U of mounting space. It supports a static load of up to 500 kg (5000 N) and has an IP 20 protection rating, making it suitable for controlled indoor environments and mixed IT equipment loads.
Yes. The 800x2000x1000 mm footprint and 42U capacity are designed for tight rooms, low-ceiling areas, and edge deployments. Its space-saving form factor, glazed door for visibility, and ready-for-fan-mounting features help maintain efficient cooling and organized cabling in limited spaces.
The rear cable entry and roof plate are engineered for clean cabling paths and airflow. The rack is prepared for a fan module, enabling future cooling expansion without replacing the enclosure. Side panels and glazed front door aid access during maintenance, and 19” mounting rails support orderly, scalable cable management.
Key standards and classifications include IP 20 protection, ETIM EC002499 (and EC002499 in ETIM 9/8 contexts), and ECLASS 8.0 27180207. These ensure interoperability with common procurement systems and compatibility with standardized IT components, aiding sourcing and integration across multi-vendor data-center projects.
