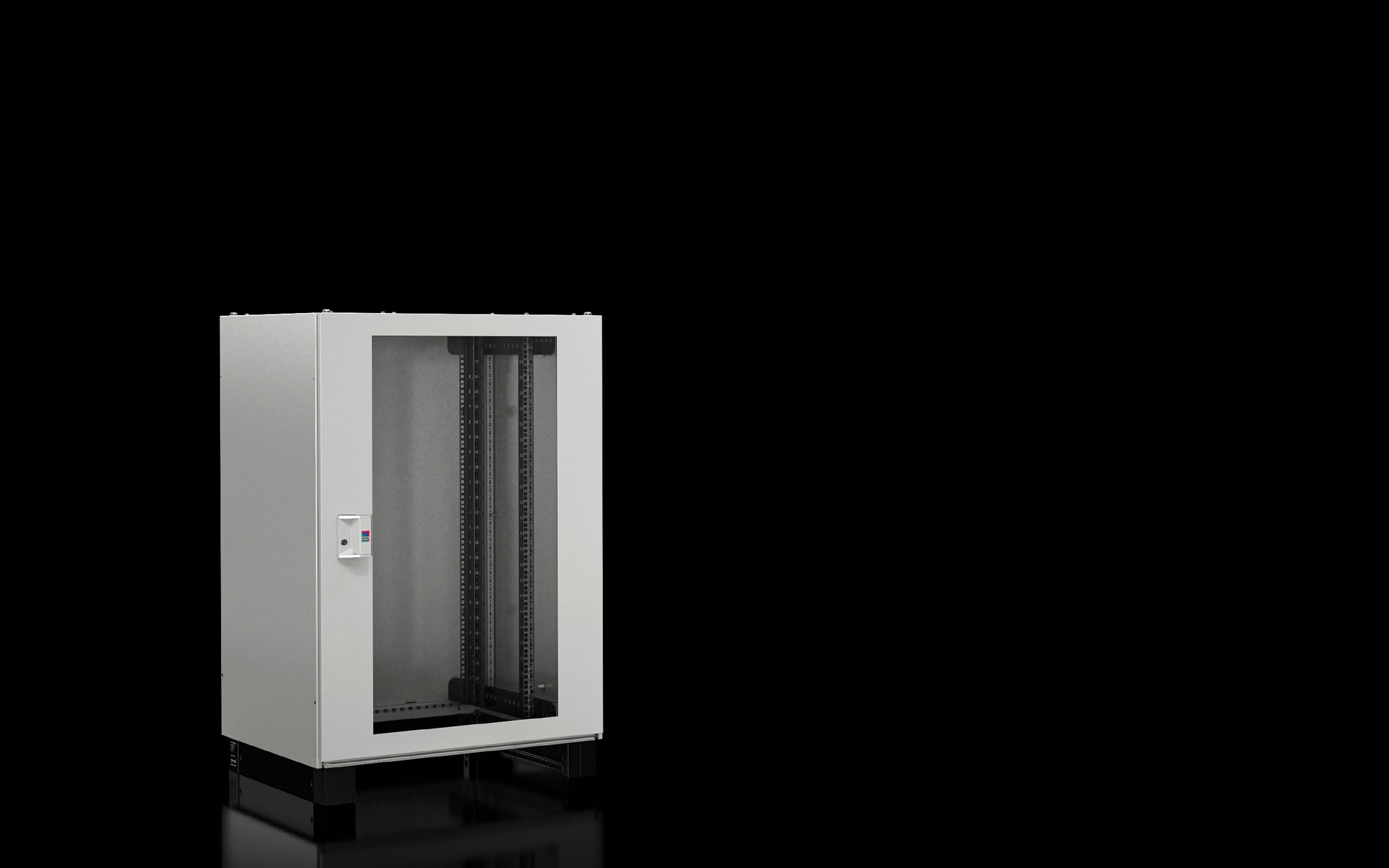

Rittal 7888808 TX CableNet – IP 20 Enclosed IT Rack
Part Number: 7888808
Quick Summary
TX CableNet is the compact IT rack system that optimizes space in tight data centers and micro IT rooms. For engineers facing cramped rooms and limited access, this pre-configured enclosure simplifies installation and reduces cabling time. It provides IP 20 protection, glazed doors for quick visual checks, and a robust 24U footprint rated for up to 5000 N. The design includes side panels, roof plate, 19" mounting angles, and base plinth venting, enabling faster, safer deployment in production environments. Together with standard rails and accessory packs, it helps teams realize faster time-to-service and lower total cost of ownership in constrained IT spaces.
Product Information
Extended Description
7888808 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, pre-assembled, WxHxD: 800x1200x800 mm, RAL 7035
Article number
TX 7888.808
Design
New version | Pre-configured | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted.No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting. | Base/plinth vented, 100 mm high | Brush strip | 50 multi-tooth screws M5, cage nuts M5, conductive (supplied loose) | 19" combination rail | Cable shunting rings (supplied loose) | Assembly parts
Dimensions
Width:Â 800 mm | Height:Â 1,200 mm | Depth:Â 800 mm
Units
24 U
Distance between levels as delivered
445 mm
Design
Pre-configured
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994652
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, pre-assembled, WxHxD: 800x1200x800 mm, RAL 7035
Space efficiency drives many IT deployments, and TX CableNet delivers with an 800x1200x800 mm footprint and a ready-to-install package. The unit ships pre-assembled with side panels, roof plate, and 19" mounting angles, reducing on-site assembly time and minimizing field wiring errors. Glazed front door and rear door provide clear visibility for components during maintenance, while the ceiling-friendly roof plate accepts fan modules and cabling without intruding into usable depth. A comprehensive supply set includes 19" rails, cage nuts, and cable shunting rings to streamline mounting. With 24 U units and a defined 445 mm distance between levels, you can plan cabling density precisely and avoid wasted rack space. The enclosure supports up to 5000 N load (static 500 kg), enabling dense server blades and network gear in a single cabinet. Durable construction uses sheet steel with 1.2 mm doors and side panels, plus 2 mm mounting angles, ensuring rigidity in serviced environments. The finish combines dipcoat priming with powder coating for long-term corrosion resistance in data centers. The TX CableNet is designed for compatibility with standard 19" components and network gear, and its concealed cable entry on both sides enables clean installations in constrained rooms. This approach reduces risk of cable damage and improves airflow, supporting reliable operation over the system life. To address common objections about custom cages and wiring, TX CableNet ships pre-assembled and pre-wired for faster deployment, cutting on-site labor and downtime. In regulated environments, its standardized dimensions and universal 19" rails simplify future component swaps and upgrades, delivering measurable ROI through sustained availability. Industry context and compatibility: As rack space becomes more valuable, compact cabinets like TX CableNet enable denser, scalable IT architectures in data rooms, labs, and edge facilities while meeting standard ventilation and cabling practices.
Get a Quick Quote for a Rittal 7888808
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888808?
Enquire Now
FAQs
TX CableNet 7888808 ships with 482.6 mm (19") mounting angles, side panels, roof plate with concealed cable entry, base/plinth vent, brush strip, 50 multi-tooth screws M5, cage nuts M5, a 19" combination rail, cable shunting rings, and complete assembly parts. The setup is designed for rapid assembly and secure, tool-free component integration in constrained spaces.
The cabinet measures 800 x 1200 x 800 mm and provides 24 U of space. It supports a static load up to 500 kg and a dynamic/load capacity of up to 5000 N, making it suitable for dense IT and network gear while maintaining structural integrity in busy data-center environments.
Yes. Its compact footprint (800x1200x800 mm) and 24U configuration are optimized for rooms with limited height or depth. The pre-assembled design and roof plate with cable entry help maximize available depth, while the glazed doors enable quick maintenance checks without full cabinet removal, improving accessibility in restricted installations.
TX CableNet adheres to an IP 20 protection rating for internal IT environments. It is cataloged with ETIM 9 EC002499 and ETIM 8 EC002499, and ECLASS 8.0 27180207 mappings. The product is listed with the EAN 4028177994652 and uses standard 19" mounting rails to guarantee broad compatibility.
By arriving pre-assembled and pre-wired, TX CableNet reduces on-site labor and downtime, delivering faster time-to-service. Its standardized dimensions and included accessories simplify upgrades and swaps, improving reliability and uptime in constrained facilities, which translates to lower maintenance costs and a faster return on investment for edge, telecom, and micro data-center deployments.
