Rittal TX CableNet 7888818 IT Rack - IP20 Protection
Part Number: 7888818
Quick Summary
Rittal TX CableNet is a compact IT rack system designed for tight spaces and small data rooms. It resolves the pain of oversized racks by delivering improved accessibility and efficient use of depth in constrained environments. This CE-compliant, IP20-rated solution combines a glazed front, roof plate, and side panels to optimize airflow and visibility while maintaining solid protection. Designed for IT cabinets and network enclosures, it supports easy cabling, fast installation, and scalable placement in growing data facilities, helping facilities teams reduce downtime and operating costs.
Product Information
Extended Description

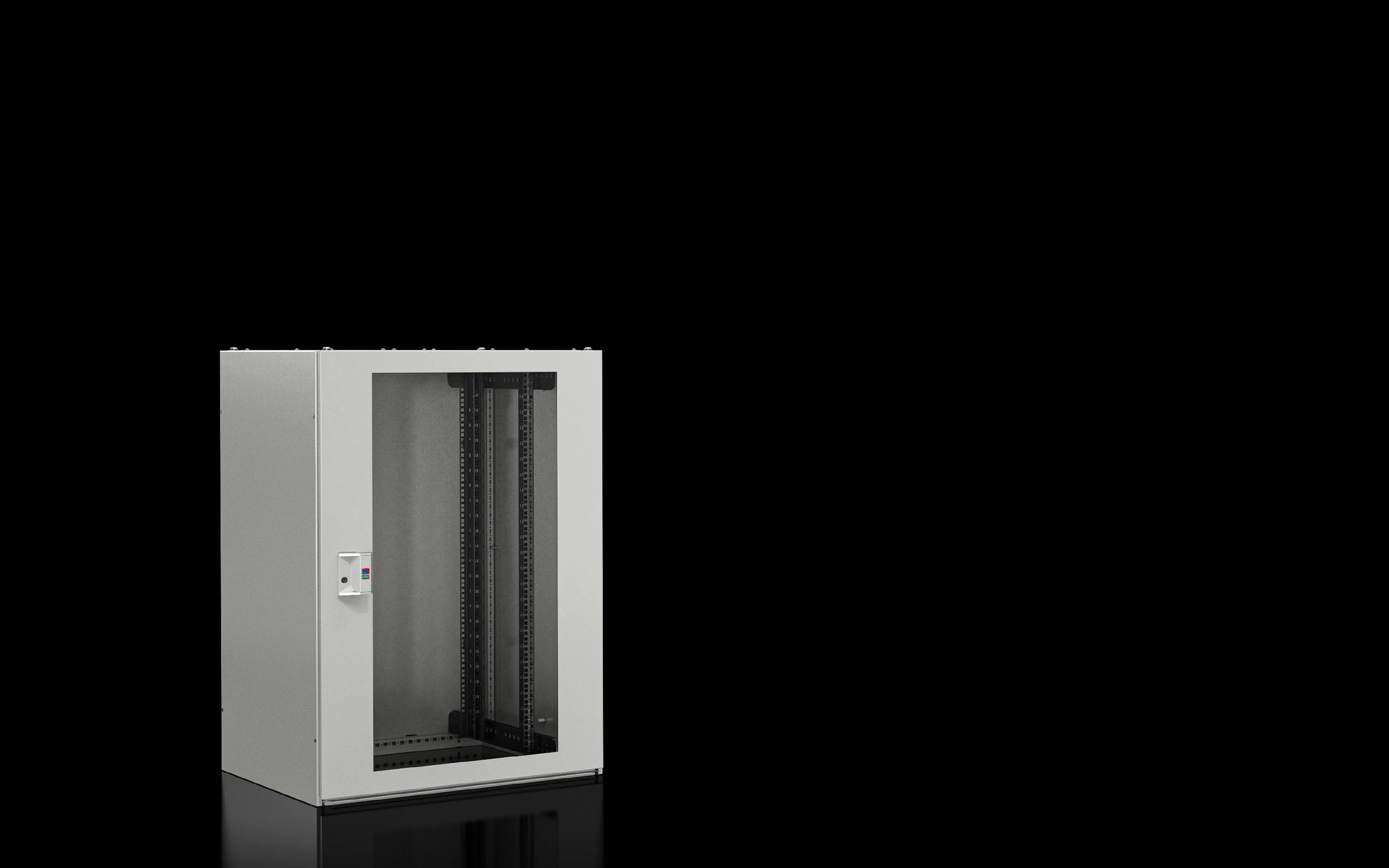

7888818 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 800x1200x800 mm, RAL 7035
Article number
TX 7888.818
Design
New version | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted.No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting.
Dimensions
Width: 800 mm | Height: 1,200 mm | Depth: 800 mm
Units
24 U
Distance between levels as delivered
445 mm
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994690
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 800x1200x800 mm, RAL 7035
Dimensions and capacity are optimized for dense configurations: WxHxD of 800x1200x800 mm, 24 U, a static load capacity of 500 kg and 5000 N. Business impact: maximize usable rack space and support a higher equipment density without expanding room footprint. Application: ideal for narrow rooms and low-ceiling environments where accessibility matters for maintenance and upgrades. The glazed door, side panels, roof plate, and 19" mounting angles improve visibility and cabling efficiency; screw-fastened panels and concealed cable entries streamline installation and reduce commissioning time. Material and finish use sheet steel with primer-dip and powder coating, delivering durable protection and a consistent aesthetic (RAL 7035) across installations. This combination reduces maintenance costs over time and ensures long-term reliability in harsh industrial settings. The design is IP20 protected, with load-bearing capabilities up to 5000 N and 500 kg static, enabling safe equipment population and robust performance. The unit ships as a single 24 U rack with a 445 mm level spacing, supporting flexible component layout and future expansion. Ready for fan mounting and with a roof plate concept that optimizes depth usage, it minimizes power losses due to unused space and improves ventilation for equipment in compact spaces.
Get a Quick Quote for a Rittal 7888818
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888818?
Enquire Now
FAQs
TX CableNet uses standard 482.6 mm (19 inch) mounting angles and supports typical 19 inch equipment layouts. With 24 U of vertical space and 445 mm level spacing, it accommodates a wide range of servers, switches, and patch panels while allowing clean cable management and straightforward installation in confined spaces.
Key specs include dimensions of 800 mm width, 1200 mm height, and 800 mm depth, a 24 U enclosure, static load capacity of 500 kg, maximum load 5000 N, IP20 protection, and a sheet steel enclosure with glazed front door, rear door, side panels, roof plate, and 19" mounting angles. Color is RAL 7035 and it ships as a single pack.
Yes. TX CableNet is purpose-built for tight spaces, with an optimized depth concept and roof plate that maximizes the usable space. Its glazed front improves visibility during cabling, while the roof plate and side panels enable efficient cable routing, making maintenance easier in rooms with restricted height or access.
Key features include a roof plate with concealed cable entry on both sides, glazed front door for quick visual checks, rear door for access, and screw-fastened side panels. The 19" mounting angles simplify equipment mounting, and the configuration supports optional fan mounting to optimize airflow and cooling in space-constrained environments.
The enclosure design reduces downtime by improving accessibility to internal components and simplifying cable management. The optimized depth usage minimizes space requirements, lowering real estate costs, while the robust sheet steel construction and IP20 protection help reduce maintenance and replacement costs over time. The option to add a fan module further improves cooling efficiency, supporting longer equipment life.
