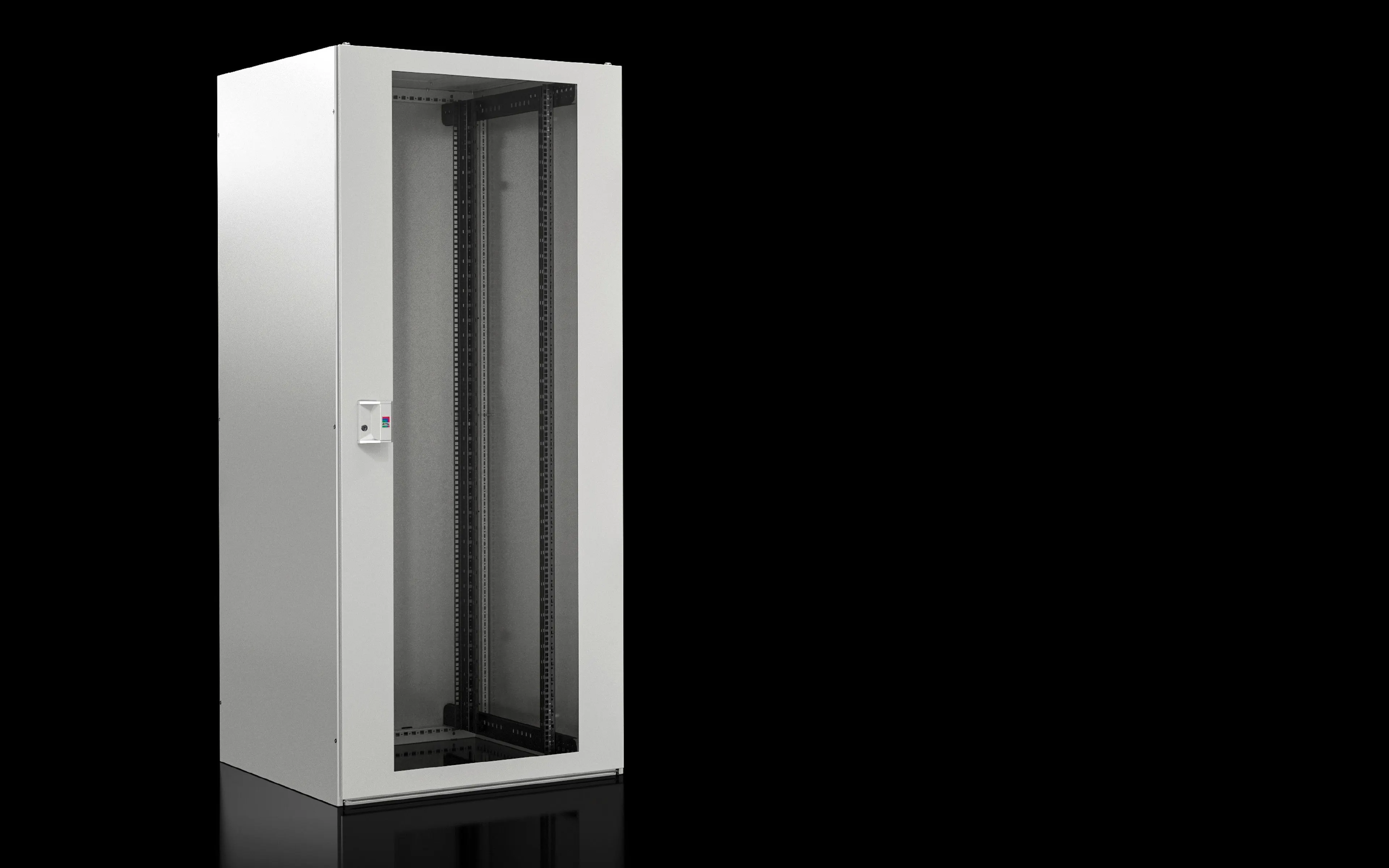

Rittal TX 7888.821 IT Network Rack with Glazed Door - IP20
Part Number: 7888821
Quick Summary
Rittal TX 7888.821 IT Network Rack with glazed door supports compact IT cabinet deployments in data centers. The rack helps avoid unnecessarily deep installations by enabling efficient use of space with side panels and a roof plate. Key standards include IP20 protection (IEC 60529) and a robust sheet‑steel enclosure that supports 19" mounting angles, ensuring safe operation and long service life. This combination reduces cable clutter, improves airflow, and accelerates installation projects, delivering measurable cost savings and easier maintenance for IT infrastructure, data center cabinets, and industrial automation enclosures. With a neutral RAL 7035 finish that resists wear in busy rack rooms, the enclosure blends into existing environments. The 42U capacity supports future equipment expansions and fast migration without additional enclosures.
Product Information
Extended Description
7888821 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 800x2000x1000 mm, RAL 7035
Article number
TX 7888.821
Design
New version | with side panels | With roof plate
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting.
Dimensions
Width:Â 800 mm | Height:Â 2,000 mm | Depth:Â 1,000 mm
Units
42 U
Distance between levels as delivered
645 mm
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994669
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 800x2000x1000 mm, RAL 7035
Feature: 800x2000x1000 mm footprint with 42U internal space and 645 mm distance between levels. Business Impact: Maximizes internal volume for dense equipment while keeping overall room footprint compact, enabling efficient space planning in data centers and industrial control rooms. Application: Suitable for IT network racks and 19" mounting rail setups in telecom and manufacturing environments. Feature: Glazed front door and rear sheet steel door with roof plate and concealed cable entries. Business Impact: Improves visibility for monitoring, simplifies cable routing, and enhances airflow management, reducing downtime and service time during upgrades. Application: Ideal for data center cabinets and automation enclosures where access and organization matter. Feature: 482.6 mm (19") mounting angles included. Business Impact: Ensures quick, standards-compliant integration of off‑the‑shelf equipment with reliable mounting, lowering customization costs. Application: IT network racks in enterprise server rooms and industrial hubs. Feature: Material and finish—sheet steel enclosure with 1.2 mm doors and powder-coated panels in RAL 7035. Business Impact: Delivers durable protection against wear, corrosion resistance, and a clean aesthetic that lasts in busy environments. Application: Enclosures for harsh factory floors and busy data centers. Feature: IP20 protection rating and 500 kg static load capacity. Business Impact: Provides essential safety margins for mixed workloads and heavy equipment without oversized enclosures. Application: Heavy-duty IT cabinets and process control cabinets. Feature: Roof plate prepared for fan mounting and side panels screw-fastened. Business Impact: Enables airflow optimization and modular cooling, reducing energy use and maintenance time. Application: Environments requiring controlled temperatures and scalable cooling strategies.
Get a Quick Quote for a Rittal 7888821
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888821?
Enquire Now
FAQs
For installation, plan to use the included 482.6 mm (19") mounting angles and side panels. The glazed door provides visibility during setup, while the roof plate with concealed cable entry simplifies routing. Ensure the rack is level and securely anchored to support the static load of up to 500 kg and dynamic loads up to 5000 N. Verify compatibility with your 19" equipment and ensure proper cable management to optimize airflow.
Key specs include a 42U internal capacity, overall dimensions 800 mm width x 2000 mm height x 1000 mm depth, and a static load rating of 500 kg with a dynamic load capacity up to 5000 N. This combination supports dense equipment while preserving structure and field reliability. The 645 mm level spacing facilitates end-to-end equipment layout within a compact footprint.
Yes. The enclosure provides a space-efficient 800x2000x1000 mm footprint, 42U capacity, IP20 protection, and a glazed front for monitoring, making it suitable for IT network racks in data centers and control cabinets in industrial automation environments. Its robust sheet‑steel construction and 19" mounting rails support a broad range of servers, switches, and PLC/automation components.
The TX CableNet design includes a roof plate prepared for fan mounting, enabling straightforward cooling enhancements when needed. It also features concealed cable entry on both sides, simplifying cable management and reducing rack‑level heat buildup. This supports scalable cooling strategies and helps maintain equipment reliability in hot environments.
TX CableNet differentiates itself with a glazed front door for quick visual checks, side panels, and a roof plate that together optimize depth usage and airflow. The combination of 19" mounting angles and 42U capacity provides flexibility for expanding equipment. Its space-saving footprint, durable finish, and prepared-for-fan feature set address common trade-offs between capacity, access, and thermal performance.
