Rittal 7888828 TX CableNet Enclosure - IP 20
Part Number: 7888828
Quick Summary
Rittal TX CableNet 7888828 IT enclosure delivers space-efficient housing for servers and network gear in compact data centers and edge deployments. In smaller IT environments, traditional racks waste depth and floor space, hampering growth; this cabinet optimizes footprint while preserving accessibility. This design emphasizes IP 20 protection and CE-style safety alignment to meet essential IT and electrical standards, ensuring reliable operation in demanding conditions. Coupled with glazed visibility and roof plate for streamlined cabling, it supports scalable installations and straightforward maintenance, while remaining compatible with standard 19" equipment and common network layouts.
Product Information
Extended Description

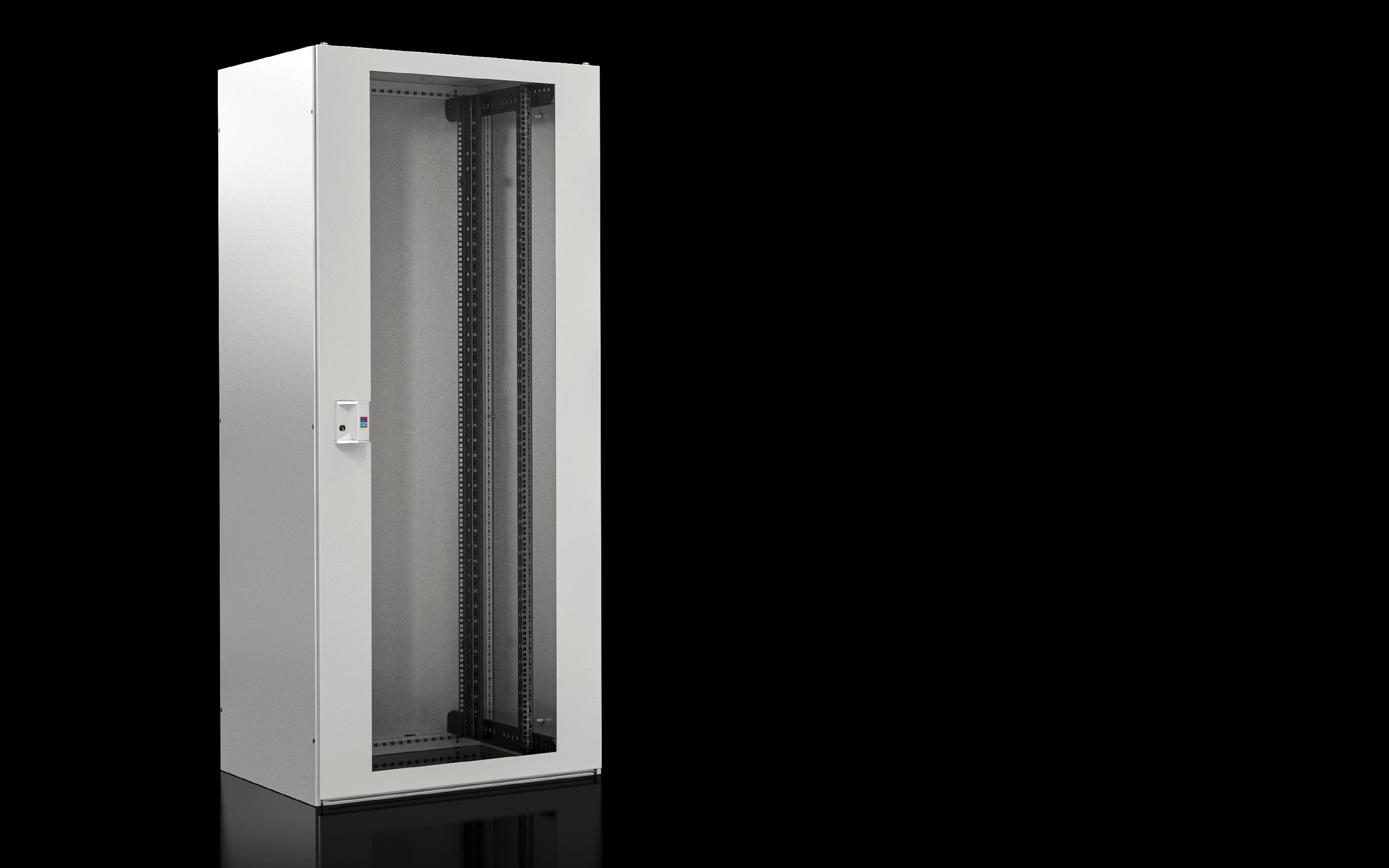

7888828 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 800x2000x800 mm, RAL 7035
Article number
TX 7888.828
Design
New version | with side panels | With roof plate
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting.
Dimensions
Width:Â 800 mm | Height:Â 2,000 mm | Depth:Â 800 mm
Units
42 U
Distance between levels as delivered
445 mm
Design
with side panels
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994683
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 800x2000x800 mm, RAL 7035
Feature: Space-efficient depth and roof plate design → Business Impact: Maximizes usable depth for cabling while maintaining airflow and serviceability → Application: Ideal for compact data centers and edge sites where rack depth is at a premium. Feature: 42U capacity with WxHxD 800x2000x800 mm → Business Impact: Standardizes equipment footprint and improves cable routing efficiency → Application: Suitable for servers, switches, and patch panels in mid-sized IT rooms. Feature: Glazed front door with side panels and rear door → Business Impact: Enhanced visibility and maintenance access while protecting components → Application: Data centers and industrial IT environments requiring frequent checks. Feature: Roof plate with concealed cable entry → Business Impact: Simplified cabling, reduced risk of cable damage, and better airflow → Application: High-density networks and power distribution setups. Feature: Load capacity 5000 N (500 kg) → Business Impact: Support for heavier equipment without structural concerns → Application: Telecom, storage, and dense compute deployments. Feature: Durable sheet steel construction with dipcoat-primed surfaces → Business Impact: Long service life in harsh environments with minimal corrosion risk → Application: Industrial IT cabinets near manufacturing floors or warehouses.
Get a Quick Quote for a Rittal 7888828
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888828?
Enquire Now
FAQs
The TX CableNet 7888828 ships with a glazed front door and rear door, side panels, 482.6 mm (19") mounting angles, and a roof plate. It is screw-fastened and prepared for fan mounting, with concealed cable entry at the sides, enabling straightforward installation and future expansion.
Dimensions are Width 800 mm, Height 2000 mm, Depth 800 mm, offering 42 U of rack space. Load capacity is 5000 N (static 500 kg), supporting dense server and switch configurations while keeping a safe, stable enclosure.
Yes. Its space-saving depth, glazed door for quick inspection, and roof plate for efficient cabling make it ideal for compact data centers and edge deployments where floor space is at a premium and maintenance cycles are shorter.
The enclosure offers IP 20 protection for basic dust and ingress protection. It features CE-aligned safety design and is documented with ETIM EC002499 and ECLASS 27180207 classifications to support procurement workflows.
The cabinet includes 19" mounting angles compatible with standard rack-mounted devices, along with side panels and a reinforced roof plate. This facilitates plug-and-play installation for servers, switches, and patch panels while preserving organized cable routing and service access.
