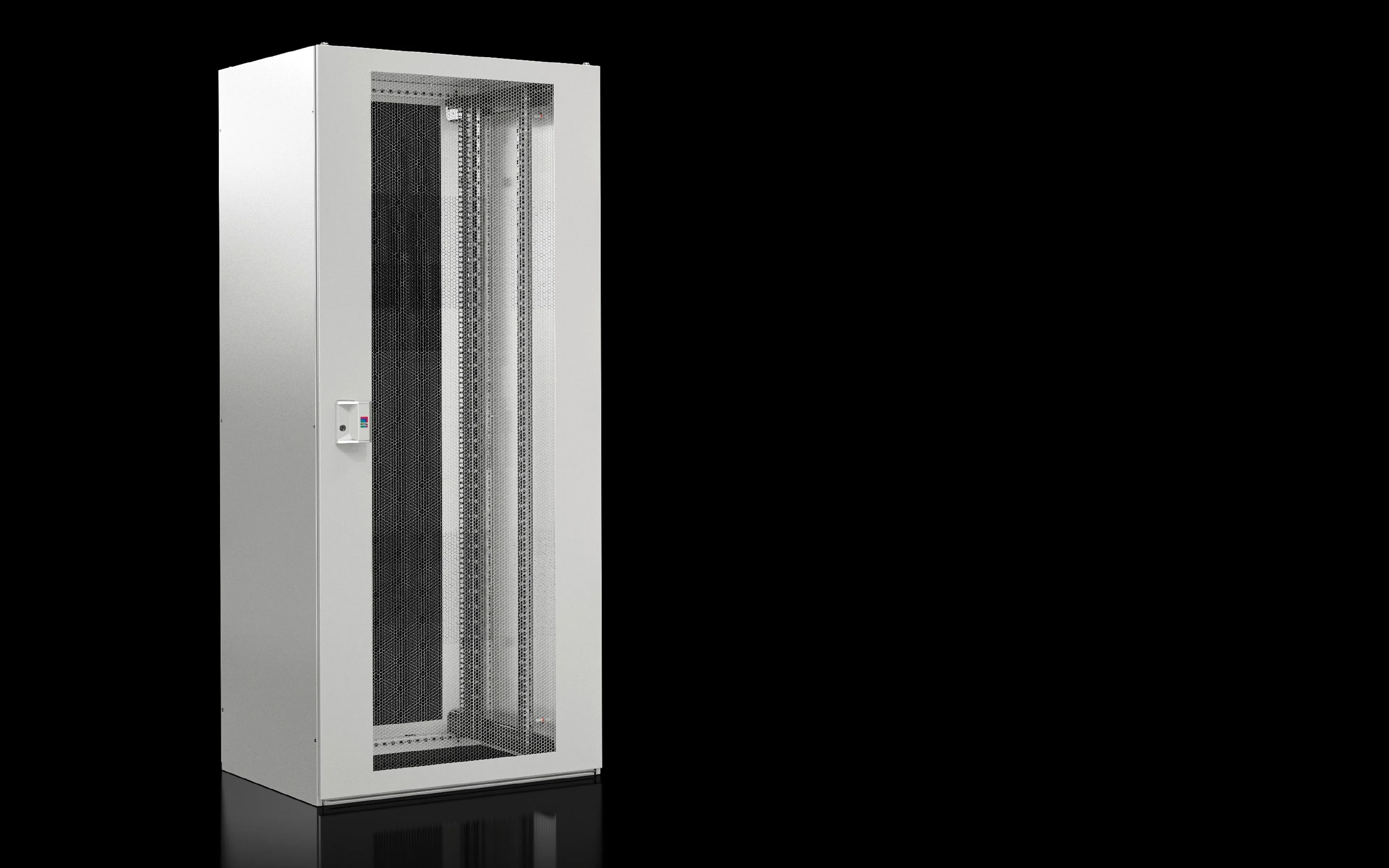

Rittal TX 7888.831 TX CableNet Network Rack - 42U, 5000 N
Part Number: 7888831
Quick Summary
TX CableNet network rack from Rittal is a robust 42U vented enclosure for IT and industrial automation. Engineers face cramped cabling paths and limited airflow, which can hinder deployment and cooling efficiency; this rack addresses those pains with thoughtful interior layout. Certifications in this space commonly include CE compliance, IP ratings for enclosures, and SIL safety considerations—verify with the manufacturer for your region. The design also emphasizes compatibility and scalable business value, delivering reliable cable management, fan-mount readiness, and a durable finish (RAL 7035) that supports ongoing uptime and future upgrades in demanding environments.
Product Information
Extended Description
7888831 Rittal: TX CableNet network rack, 800x2000x1000 mm, 42 U, vented, RAL 7035
Article number
TX 7888.831
Design
New version | Vented | with side panels
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Roof: Sheet steel, 1.5 mm | Enclosure frame: Sheet steel, 1.5 mm | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
Colour
RAL 7035
Supply includes
Rack with vented front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting.
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 1,000 mm
Units
42 U
Distance between levels as delivered
645 mm
Design
with side panels
Design doors
Vented
Rear door design
Sheet steel door, one-piece, vented
Front door design
Sheet steel door, one-piece, vented
Load capacity
5000 N
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994737
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet network rack, 800x2000x1000 mm, 42 U, vented, RAL 7035
Feature: Vented front and rear doors with side panels enable efficient airflow and modular cabling. Business Impact: Improved cooling performance reduces hot spots and energy use while simplifying future expansions. Application: Industrial IT rooms and automated production panels. Feature: Roof plate concept with concealed cable entry and prepared for a fan module. Business Impact: Easier, cleaner cabling routes and scalable cooling options for high-density setups. Application: Servo drives, network switches, and distributed I/O in manufacturing. Feature: 800x2000x1000 mm footprint with 482.6 mm (19) mounting angles and 42 U. Business Impact: Large, flexible space supports heavy equipment and diverse 19" mounting layouts, lowering procurement challenges. Application: Control cabinets and network racks in data centers and shops floors. Feature: High-quality sheet steel construction with dipcoat-primed frame and powder-coated panels in RAL 7035. Business Impact: Durable, corrosion-resistant enclosure that withstands rigorous industrial environments. Application: Factory floors and IT rooms requiring long service life. Feature: Supplied with vented front and rear doors, side panels, and roof plate screws for quick assembly. Business Impact: Faster install times, consistent build quality, and reduced field customization. Application: Standardized deployments and multi-rack installations across plants.
Get a Quick Quote for a Rittal 7888831
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888831?
Enquire Now
FAQs
Plan for adequate clearance around the enclosure to ensure proper airflow through vented doors. Assemble the side panels and mounting angles (482.6 mm) securely, connect the roof plate’s concealed cable entries, and prepare for potential fan mounting. Verify room temperature and airflow targets align with the 5000 N load capacity and the system’s heat dissipation needs.
The 42U configuration provides ample vertical space for dense equipment, while the 482.6 mm 19" mounting angles enable flexible device placement. With a 5000 N load rating and 645 mm depth between levels, you can host power supplies, switches, and PDUs without compromising airflow or service access, minimizing rearrangements during upgrades.
Yes. The vented front and rear doors, side panels, and fan-mount readiness make it ideal for factory IT and automation networks. The 800x2000x1000 mm footprint fits common production-area footprints, while the RAL 7035 finish ensures visibility and durability in industrial settings, supporting reliable operation across multiple shifts.
The TX CableNet enclosure aligns with industry classifications such as ETIM EC002499 and ECLASS 27180207, and carries EAN 4028177994737. Customs tariff reference is 94032080. While ETIM/ECLASS are data standards, confirm any region-specific certifications like CE, IP, or SIL with Rittal for regulatory compliance.
Key benefits include improved cabling efficiency, reduced deployment time due to screw-fastened assembly, and enhanced thermal management from vented doors. The robust construction supports long service life in industrial settings, lowering maintenance costs and enabling scalable upgrades that translate into lower total cost of ownership over the rack’s lifetime.
