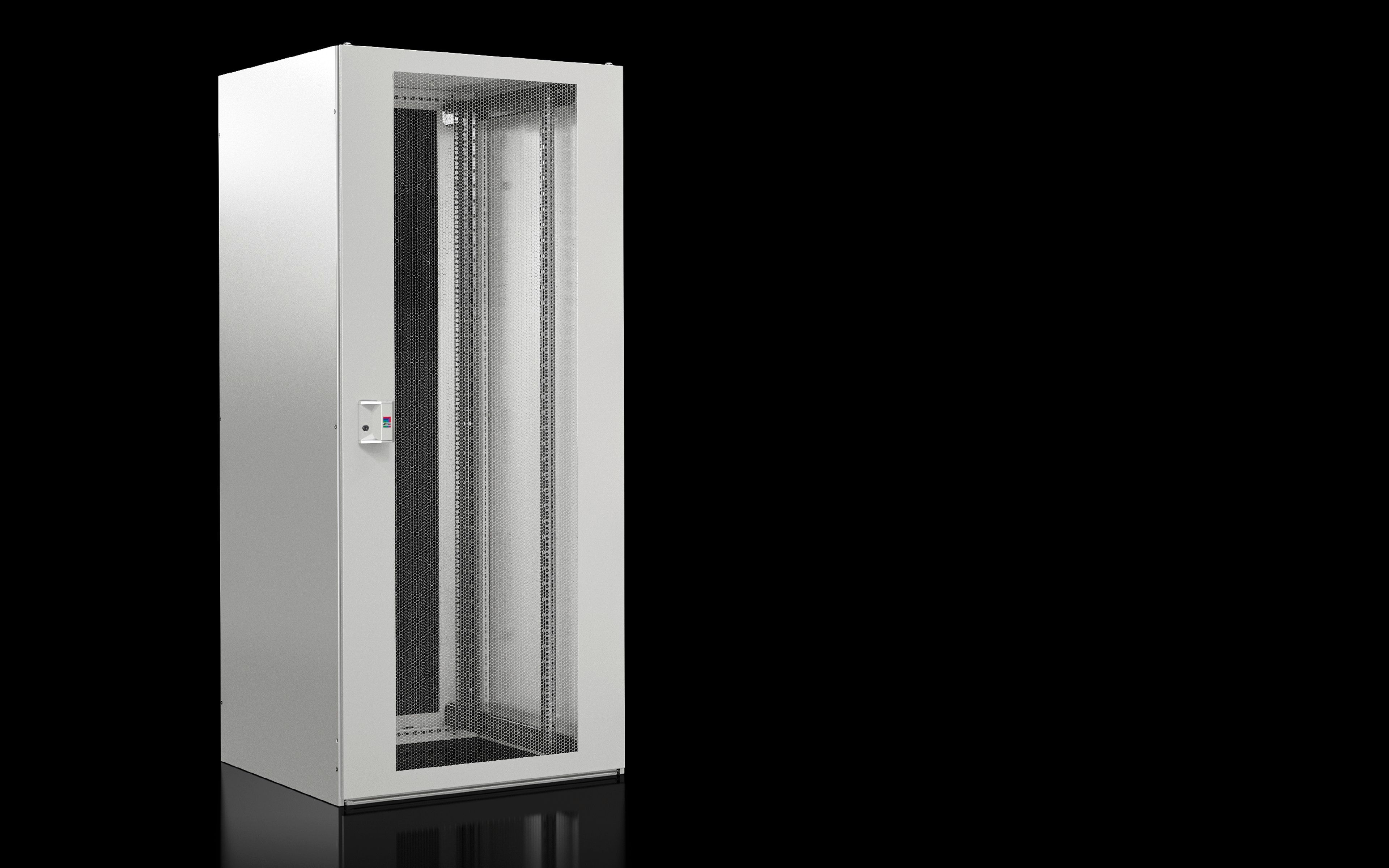

Rittal TX CableNet Network Rack 7888838 - Vented
Part Number: 7888838
Quick Summary
Rittal TX CableNet Network Rack 7888838 is a versatile IT cabinet system that organizes network equipment in data centers. When cabling dense IT environments, tangled pathways and restricted airflow slow maintenance and raise risk. In practice, CE-compliant configurations and industry-standard design support safer, compliant installations, while vented doors, side panels, and fan-mount readiness aid thermal management. The 800x2000x800 mm cabinet offers 42U of mounting space, with 19" mounting angles and a robust sheet-steel build, delivering scalable infrastructure for IT and automation networks. This translates to reduced downtime, simpler upgrades, and a cleaner, more efficient control-system backbone for engineering teams and procurement stakeholders.
Product Information
Extended Description
7888838 Rittal: TX CableNet network rack, 800x2000x800 mm, 42 U, vented, RAL 7035
Article number
TX 7888.838
Design
New version | Vented | with side panels
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Roof: Sheet steel, 1.5 mm | Enclosure frame: Sheet steel, 1.5 mm | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
Colour
RAL 7035
Supply includes
Rack with vented front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting.
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Distance between levels as delivered
445 mm
Design
with side panels
Design doors
Vented
Rear door design
Sheet steel door, one-piece, vented
Front door design
Sheet steel door, vented
Load capacity
5000 N
Load capacity (static)
500 kg
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994676
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet network rack, 800x2000x800 mm, 42 U, vented, RAL 7035
Feature: Robust steel construction with a roof plate, enclosure frame, and door thickness designed for industrial use. Business Impact: High load capacity and structural integrity reduce vibration risk and support dense equipment configurations, improving uptime. Application: Data centers and factory floor control cabinets that house servers, PLCs, and I/O networks. Feature: Ventilated front and rear doors plus a vented roof area. Business Impact: Optimized airflow lowers cooling requirements and extends component life, cutting operating costs. Application: High-heat environments where racks must breathe during continuous operation. Feature: Ready-for-fan-mounting roof and side panels with screw-fastened mounting. Business Impact: Flexible cooling options enable modular upgrades without rework, accelerating project timelines. Application: Industrial automation centers needing scalable cooling strategies. Feature: 482.6 mm (19") mounting angles and standard 19" rack compatibility. Business Impact: Fast, tool-accessible integration with existing equipment and accessories, reducing install time and risk. Application: Whether expanding an IT room or updating an automation cabinet. Feature: Powder-coated and dipcoat-primed surfaces in RAL 7035. Business Impact: Enhanced corrosion resistance and durable aesthetics for harsh environments, lowering maintenance frequency. Application: Enclosures exposed to dust, humidity, and routine cleaning in manufacturing settings.
Get a Quick Quote for a Rittal 7888838
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888838?
Enquire Now
FAQs
The TX CableNet Rack ships with 482.6 mm (19") mounting angles and a 19" compatibility framework, enabling quick integration of standard rack-mount equipment. Its design supports side panels and vented doors, providing secure mounting for servers, switches, and control hardware while maintaining accessible wiring paths.
Dimensions are 800 mm width, 2000 mm height, and 800 mm depth (800x2000x800 mm). It offers 42U of space and a static load capacity of 500 kg (5000 N). This combination supports dense equipment and heavy industrial components without compromising rigidity or service access.
Yes. The TX CableNet Network Rack is designed for data centers and industrial automation environments, featuring vented doors for airflow, side panels for protection, and roof-entry prepared for fans. Its 19" mounting system ensures compatibility with standard IT and control-system components, promoting scalable, modular deployments.
Product specifications reference standard industrial practices and component compatibility (ETIM/EC and ECLASS mappings). While explicit CE or IP ratings are not listed in the data, the rack is designed for standard compliance in typical IT and industrial environments; confirm regional certification status with the supplier for your application.
Its reinforced steel construction and vented design reduce heat-related failures, while the 42U capacity and 19" mounting angles streamline installation and future upgrades. Side panels and a prepared roof enable easier cabling and cooling integration, cutting maintenance time and extending component life—delivering lower total cost of ownership over the equipment lifecycle.
