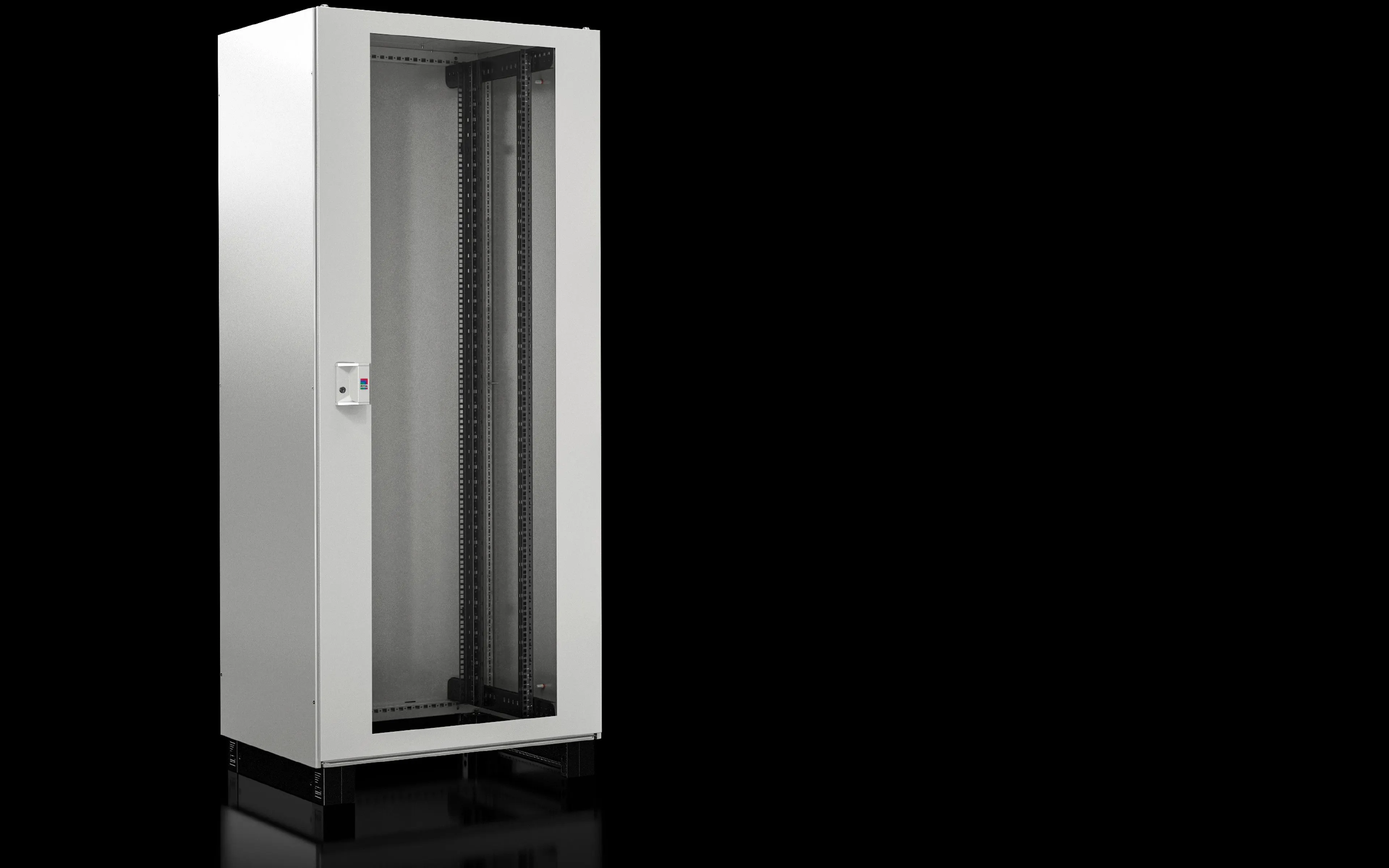

Rittal TX 7888.898 IT Rack - IP20 Enclosure System
Part Number: 7888898
Quick Summary
Rittal TX CableNet IT rack offers a compact, pre-configured enclosure for tight IT spaces. In environments with low ceilings or restricted access, it eliminates wasted depth and simplifies deployment. The unit carries IP 20 protection and aligns with common data-center standards, while the glazed front door and roof plate support clear visibility and easier cable management. With 42U of mounting space in a narrow footprint, its design is ideal for compact server racks and edge deployments. The pre-assembled construction reduces installation time and risk, enabling faster commissioning and predictable maintenance costs. This combination of space efficiency, protective rating, and ready-to-install hardware delivers tangible business value for small to mid-sized facilities.
Product Information
Extended Description
7888898 Rittal: TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, pre-assembled, WxHxD: 800x2000x800 mm, RAL 7035
Article number
TX 7888.898
Design
New version | Pre-configured | with side panels | With roof plate
Product description
Optimum IT rack solution for use in tight spaces, in rooms with low ceilings or wherever accessibility is otherwise restricted.No power losses due to unused rack space in case of population with exclusively small electrical components.
Benefits
New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Material
Enclosure: Sheet steel | Door: Sheet steel, 1.2 mm | Side panel: Sheet steel, 1.2 mm | 482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed | Enclosure panels: Dipcoat-primed, powder-coated
General colour
RAL 7035
Colour
RAL 7035
Supply includes
Enclosure with glazed front door and rear door | Side panels, screw fastened | 482.6 mm (19") mounting angles | Roof plate, screw-fastened, with concealed cable entry at the left and right sides, prepared for fan mounting. | Base/plinth vented, 100 mm high | Brush strip | 19" combination rail | 50 multi-tooth screws M5, cage nuts M5, conductive (supplied loose) | Cable shunting rings (supplied loose) | Assembly parts
Dimensions
Width:Â 800 mm | Height:Â 2,000 mm | Depth:Â 800 mm
Units
42 U
Distance between levels as delivered
445 mm
Design
Pre-configured
Design doors
Glazed door, one-piece
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity
5000 N
Load capacity (static)
500 kg
Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).
Customs tariff number
94032080
EAN
4028177994645
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, pre-assembled, WxHxD: 800x2000x800 mm, RAL 7035
Pre-assembled TX CableNet reduces on-site assembly time and installation risk. Faster deployment means fewer tradespeople needed and lower labor costs, particularly in tight data-center projects and edge computing cabinets. The compact footprint delivers 42U of mounting space without unnecessary depth, enabling dense component layouts for small IT rooms and telecommunication closets while maintaining serviceability. A glazed front door improves accessibility and diagnostics, while the roof plate supports organized cable routing and potential fan integration to optimize cooling in constrained spaces. The rugged sheet steel construction with powder-coated finish enhances durability in industrial environments, lowering maintenance costs over the rack’s lifecycle. Included 19" mounting angles and hardware simplify procurement and onsite setup, reducing project lead times and ensuring consistent equipment alignment.
Get a Quick Quote for a Rittal 7888898
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7888898?
Enquire Now
FAQs
TX CableNet ships pre-assembled with side panels, mounting rails, and a roof plate, reducing field assembly time. The 800x2000x800 mm footprint fits narrow rooms while maintaining 42U capacity, so technicians can deploy quickly without adapting to irregular depths. This minimizes site coordination and accelerates commissioning for edge and compact data-center projects.
The rack measures 800 mm wide, 2000 mm high, and 800 mm deep, providing 42 U of mounting space. It supports up to 5000 N load and a static load of 500 kg, making it suitable for dense server and networking equipment in controlled environments where spacing and airflow are critical.
Yes. Its compact footprint, 42U capacity, glazed door for visibility, and roof plate ready for fan mounting make it ideal for edge deployments and small data-center rooms. The IP20 protection supports indoor, non-harsh environments while enabling scalable rack density with straightforward cabling and maintenance.
The enclosure offers IP 20 protection per IEC 60529 for controlled environments, improving dust and ingress protection in IT closets. It uses sheet steel components and a powder-coated finish for durability. While it emphasizes IP protection, confirm any local CE or regulatory requirements for your facility as needed.
The pre-assembled design reduces installation time and field labor, delivering lower total project costs and faster time-to-value. Its robust steel construction and powder coating minimize maintenance needs, while the 42U capacity facilitates future upgrades without replacing the cabinet. Overall, you gain predictable lifecycle costs and improved space efficiency in constrained environments.
