Rittal 7950100 DK Adhesive strip - Labelling 1–56 U
Part Number: 7950100
Quick Summary
Rittal 7950100 DK Adhesive strip labels 19" cabinets from 1 to 56 U, clearly identifying height units. This addresses the common challenge of ambiguous rack labeling that slows maintenance and increases risk of misrouting. Designed to align with ETIM EC001288 and ECLASS 27149129 classifications, and traceable via EAN 4028177492042, it offers reliable, standards-based labeling. In practice, this strip supports retrofits and ongoing labeling programs, delivering faster diagnostics and better part traceability across your industrial installations.
Product Information
Extended Description
7950100 Rittal: DK Adhesive measurement strip, 482.6 mm (19"), Labelling range 1-56 U
Article number
DK 7950.100
Design
Labelling range 1 – 56 U
Product description

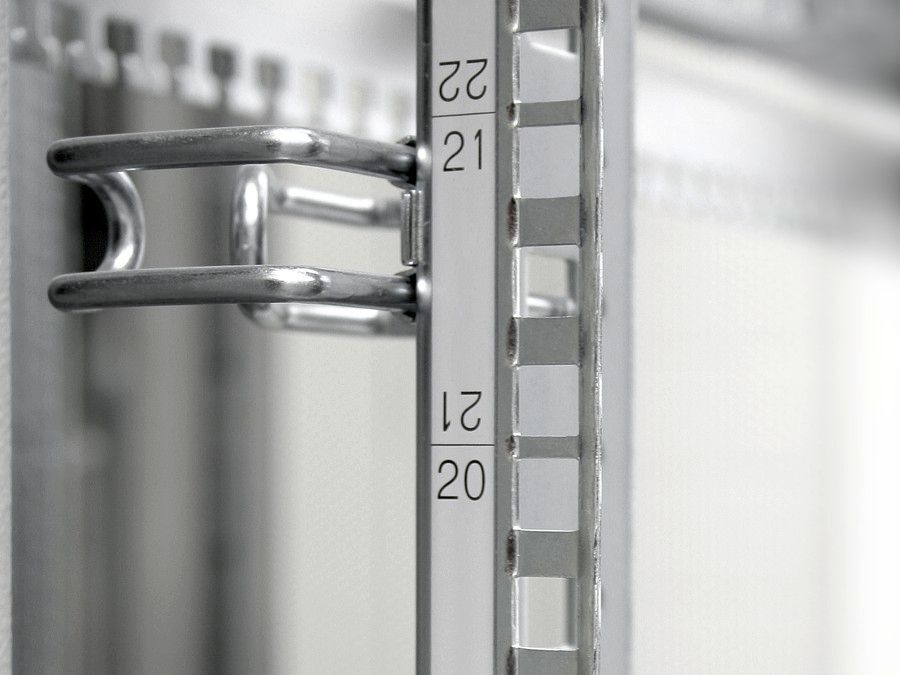

With numerical labelling on a 482.6 mm (19") pitch pattern for clear identification of the various height units.
Benefits
Double-sided labelling allows the counting direction to be freely selected
Applications
For retrofitting to existing 482.6 mm (19") sections
Material
Sheet steel, spray-finished
Dimensions
Width: 6 mm
Installation dimensions
Installation depth for components: 482.6 mm
Packs of
1 pc(s).
Weight/pack
0.042 kg
Customs tariff number
76169990
EAN
4028177492042
ETIM 9
EC001288
ECLASS 8.0
27149129
Product description
DK Adhesive measurement strip, 482.6 mm (19"), Labelling range 1-56 U
Feature: 482.6 mm (19") pitch with a labelling range of 1 – 56 U. Business Impact: Enables precise unit identification across large assemblies, reducing maintenance time and error rates. Application: Ideal for retrofitting existing 19" sections in control panels and switchgear. Feature: Double-sided labeling. Business Impact: Flexible counting direction improves workflow, enabling operators to read from either end without reorientation. Application: Use in high-traffic racks where accessibility from multiple sides is common. Feature: Material and finish—sheet steel, spray-finished. Business Impact: Durable labeling that resists wear in industrial environments, lowering replacement costs. Application: Suitable for harsh factory floors and cabinet interiors. Feature: Narrow 6 mm width and 482.6 mm installation depth compatibility. Business Impact: Minimal intrusion on existing rails; preserves space for components and cables. Application: Fits standard 19" enclosure architectures without modification. Feature: Lightweight single-pack design—0.042 kg. Business Impact: Easy handling during installation reduces labor effort and fatigue. Application: Efficient stocking and rapid retrofits in large projects.
Get a Quick Quote for a Rittal 7950100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7950100?
Enquire Now
FAQs
To install, clean the mounting surface, align the strip with the 482.6 mm depth, and apply the adhesive ensuring full contact. The 6 mm wide strip fits standard 19" rails, and the double-sided labeling allows flexible reading directions. Confirm the range 1–56 U before final placement to ensure accurate unit identification.
Key specs include a 482.6 mm (19") pitch, labeling range 1–56 U, width 6 mm, material sheet steel with a spray finish, and a single-pack quantity of 1 piece. It weighs 0.042 kg per pack and is designed for retrofitting existing 19" sections.
Yes. The DK Adhesive strip is explicitly designed for retrofitting existing 482.6 mm (19") sections, enabling clear, numerical labelling without replacing entire enclosure components. Its installation depth matches standard 19" cabinet configurations, reducing modification needs and downtime.
The labeling strip aligns with ETIM 9 EC001288 and ECLASS 8.0 27149129 classifications, ensuring procurement and data interoperability. It also carries an EAN of 4028177492042 for traceability and cataloging in warehouse systems.
The strip delivers clearer unit identification, reduces maintenance time, supports accurate inventory and service actions, and enables easy retrofits for ongoing cabinet labeling projects. Its double-sided labeling and standard dimensions help standardize labeling across multiple racks, improving ROI through reduced downtime.
