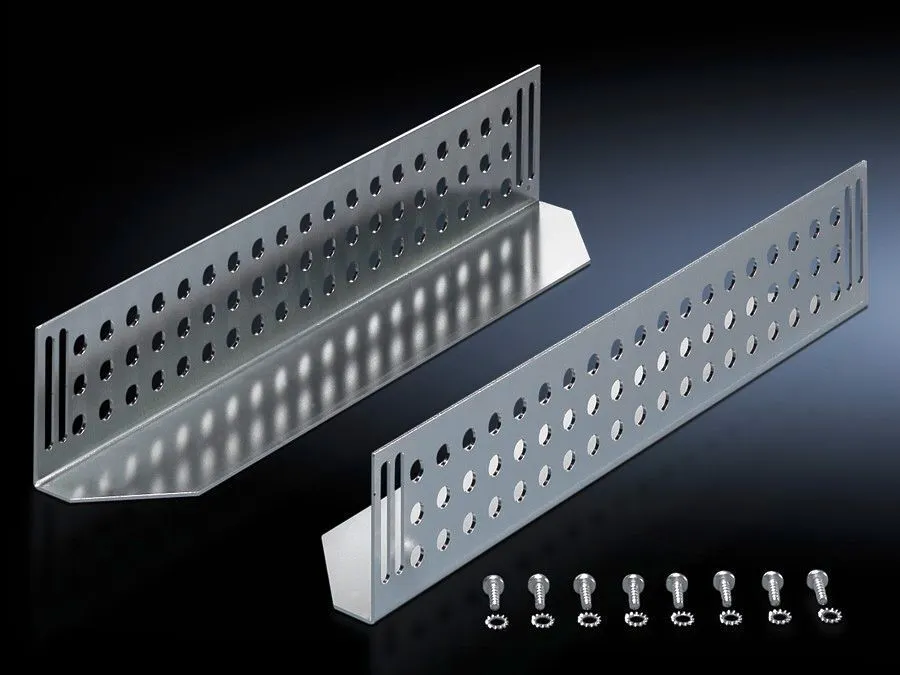

Rittal 7963510 Slide Rail - TE 8000 Compatible
Part Number: 7963510
Quick Summary
Rittal 7963510 slide rail provides sturdy mounting between front and rear 19" levels for heavy components in TE 8000 enclosures. This solution addresses the common challenge of sagging rails and misalignment when loading large 19” equipment. With ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, the DK 7963.510 aligns with procurement and maintenance systems, while the zinc-plated sheet steel design resists corrosion. The option’s preassembled parts streamline installation and reduce on-site customization. For equipment integrators and panel builders, this rail offers reliable load distribution and scalable mounting between levels, enabling faster rebuilds and improved serviceability. It also complements other TE accessories, ensuring consistent enclosure performance and long-term return on investment.
Product Information
Extended Description
7963510 Rittal: DK Slide rail, support surface WxD: 85x524 mm, 80 kg, static, distance between levels:: 595 mm, For TE
Article number
DK 7963.510
Product description
For mounting between the front and rear 482.6 mm (19") mounting levels. The slide rails can be used to support heavy 482.6 mm (19") components.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Distance between mounting levels
595 mm
Load capacity static
800 N
Contact surface
Width: 85 mm | Depth: 524 mm
To fit
Enclosure type: TE 8000
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Packs of
2 pc(s).
Weight/pack
2.814 kg
Customs tariff number
73269098
EAN
4028177443952
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
DK Slide rail, support surface WxD: 85x524 mm, 80 kg, static, distance between levels:: 595 mm, For TE
Feature: Heavy-load capability and robust sheet steel construction provide dependable support for 482.6 mm (19") components. Business Impact: Reduces sag and misalignment, improving component life and performance in demanding environments. Application: Ideal for TE 8000 enclosures in manufacturing and data-center applications where stable front-to-rear mounting is required.Feature: Zinc-plated surface finish resists corrosion in typical industrial settings. Business Impact: Extends service life and lowers maintenance costs for control cabinets. Application: Suitable for environments with exposure to moisture or humidity without compromising mounting integrity.Feature: Precise mounting dimensions — surface 85x524 mm, distance between levels 595 mm. Business Impact: Ensures predictable layouts and simplifies cabinet planning and expansion. Application: Facilitates clean, scalable multi-level 19" equipment configurations in TE frames.Feature: Installation depth 482.6 mm and 19" width compatibility. Business Impact: Reduces need for adapters and minimizes installation time. Application: Fastens to TE 8000 frames, supporting quick upgrades and maintenance work.Feature: Packs of 2 with assembly parts included. Business Impact: Streamlines procurement and on-site assembly, lowering total cost of ownership. Application: Particularly valuable for service teams performing replacements or expansions without hunting for hardware.
Get a Quick Quote for a Rittal 7963510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7963510?
Enquire Now
FAQs
Yes. The DK 7963.510 slide rail is designed to mount between the front and rear 19" mounting levels inside TE 8000 enclosures, with installation depth of 482.6 mm and a 19" width.
Key specs include a support surface of 85x524 mm, a distance between mounting levels of 595 mm, static load capacity of 800 N, installation depth 482.6 mm, and 19" mounting width.
Packs of 2 rails are included, with a total weight of 2.814 kg per pack.
The provided data does not list CE or SIL certifications. It does include ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, and the product is zinc-plated steel for durability.
Install between front and rear 19" levels in TE 8000 frames, using the included assembly parts. Ensure the component depth of 482.6 mm and 19" width are compatible with your enclosure layout for a fast, alignment-friendly fit.
