Rittal 7979102 PDU basic for IT racks - EN 62368-1
Part Number: 7979102
Manufacturer
Rittal
Part number
7979102
Category
Alt Part Number
DK 7979.102
Quick Summary
PDU basic from Rittal provides compact, reliable power distribution for IT racks and data centers. Engineers often wrestle with space constraints, tool-free mounting challenges, and mismatched outlets in dense enclosures, leading to downtime and added wiring risk. This unit is certified for EMC Directive 2014/30/EU and EN 62368-1, reinforcing safer operation and regulatory compliance in demanding environments. Its compact 44x450x144 mm form fits VX IT frames or 19” racks, while vertical zero-U mounting reduces footprint without tools. With 8 C13 sockets, 230 V operation, and a 16 A rating, it delivers scalable, maintainable power while helping procurement control total cost of ownership.
Product Information
Extended Description

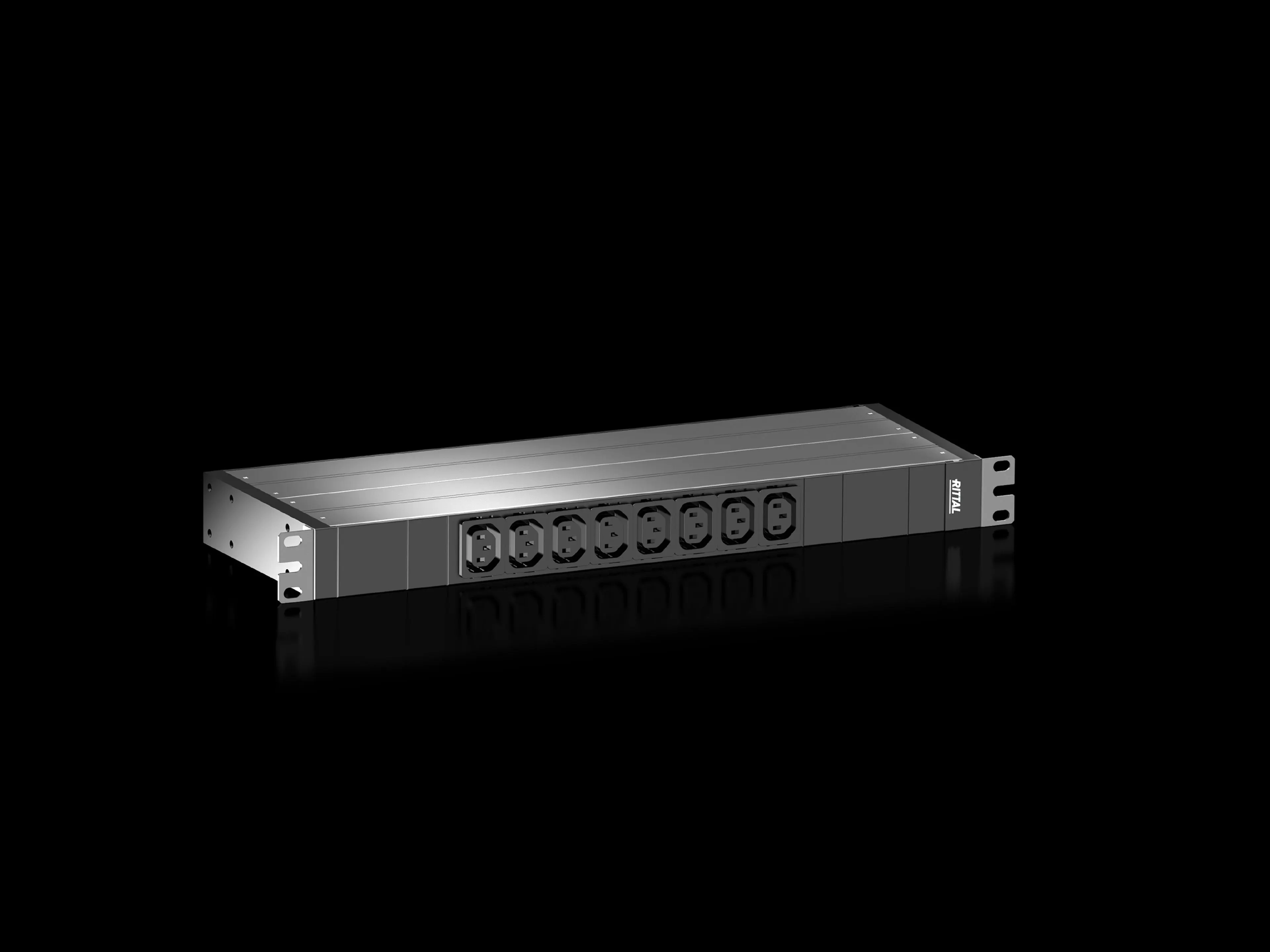

7979102 Rittal: DK PDU basic, compact basic power distribution, WHD: 44x450x144, IEC 60320: 8 x C13, 230 V, 1~, 16 A
Article number
DK 7979.102
Design
482.6 mm (19") version
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts | No connection cable, to be provided by the customer.
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
8 x C13
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Type of electrical connection
IEC C20
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm | Enclosure type: TX CableNet: ≥ 800 mm
Packs of
1 pc(s).
Weight/pack
2 kg
Customs tariff number
85366990
EAN
4028177947351
ETIM 8
EC002762
ETIM 7.0
EC000330
ECLASS 8.0
27142604
Product description
DK PDU basic, compact basic power distribution, WHD: 44x450x144, IEC 60320: 8 x C13, 230 V, 1~, 16 A
Feature: Compact, rugged enclosure and 44x450x144 mm WHD footprint → Benefit: Saves valuable rack space and enables neat cable management in dense IT environments → Application: Fits VX IT and 19" racks for data centers and network closets. Feature: 8 x IEC C13 outlets at 230 V, 16 A max, 3.7 kW total → Benefit: Supports standard IT loads with clear headroom, reducing the need for additional PDUs → Application: Ideal for remotely powering servers, switches, and storage within a single PDU. Feature: Horizontal 19" mounting or vertical zero-U installation → Benefit: Flexible deployment across different rack configurations without tool requirements → Application: Easy integration into VX IT enclosures and TS IT systems. Feature: Includes assembly parts; customer supplies connection cable → Benefit: Simplified on-site installation and reduced downtime → Application: Quick integration during rack build-out or upgrades. Feature: Type 3 overvoltage protection option with interchangeable arresters; compliant with EMC Directive and EN 62368-1 → Benefit: Enhanced protection for IT equipment and ongoing regulatory compliance → Application: Critical in data centers and industrial IT deployments requiring robust surge protection. Feature: Aluminum housing with anodised finish; rated for 5 °C to 50 °C operating temperature and 10–95% humidity → Benefit: Durable performance in varied environments → Application: IT rooms, data centers, and telecom closets with challenging climate conditions.
Get a Quick Quote for a Rittal 7979102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979102?
Enquire Now
FAQs
The PDU basic is designed to fit Rittal VX IT enclosures and standard 19 inch racks. It supports horizontal mounting at the 19 inch level or vertical zero-U installation in compatible VX IT frames. The package includes assembly parts for quick, tool-free alignment, streamlining integration into VX IT or TS IT rack configurations.
Specifications include 8 x IEC C13 outlets, 230 V AC, 1~, 16 A max, and a total power rating of 3.7 kW. Infeed is 1, with IEC C20 connection. Physical dimensions are 44 mm height, 144 mm depth, and 450 mm length. The unit supports standard IT loads within a compact 19" enclosure footprint.
Yes. The product complies with EMC Directive 2014/30/EU and conforms to EN 62368-1 for safe IT power distribution. This ensures CE marking for regulatory compliance in European markets and aligns the unit with recognized safety and equipment standards for data-center and telecom deployments.
Zero-U mounting permits vertical installation without consuming rack height, freeing up valuable space for active equipment. It reduces cabling complexity by placing power distribution in the frame’s empty space, improves airflow, and simplifies maintenance access. This approach is particularly advantageous in VX IT and TS IT environments where rack real estate is precious.
An optional Type 3 overvoltage protection with interchangeable arresters is available, including status monitoring for quick fault detection. These features provide enhanced protection for sensitive IT gear and simplify integration into PDU enclosures, ensuring regulatory compliance and robust power protection in data centers and network closets.
